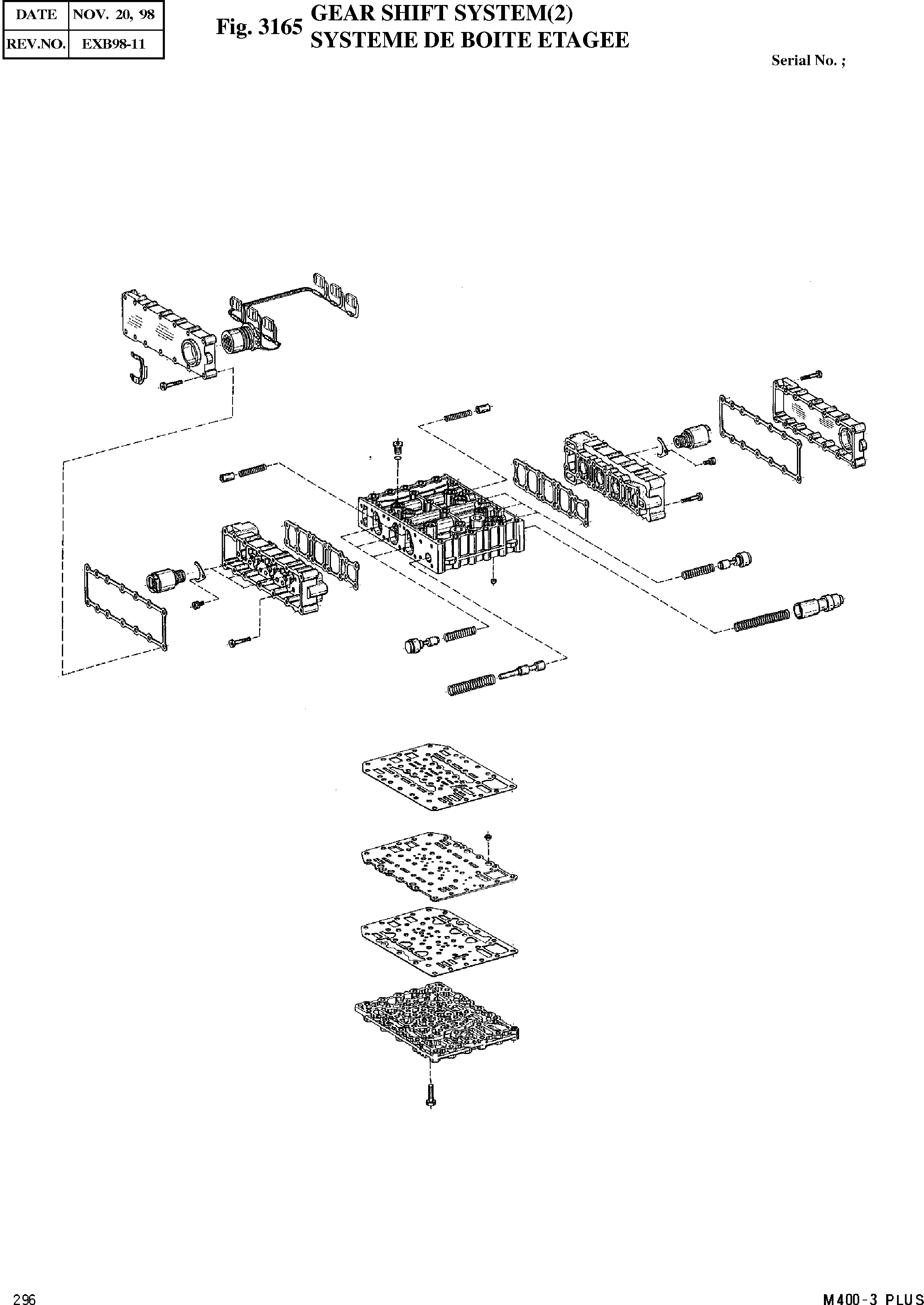

Запчасти Doosan Daewoo GEAR SHIFT SYSTEM(2) HYDRAULIC PARTS

10

0899 316 823

VALVE BLOCK

desc: BLOC-VALVES

1шт.

12

0636 302 053

SCREW PLUG

desc: BOUCHON DE VIS

8шт.

14

0634 303 280

O-RING

desc: JOINT TORIQUE

8шт.

20

0730 361 070

ORIFICE

desc: ORIFICE

6шт.

30

4656 306 095

PISTON

desc: PISTON

6шт.

40

0732 042 538

COMPR.SPRING

desc: RESSORT

6шт.

50

4656 306 013

PISTON

desc: PISTON

6шт.

60

0732 042 539

COMPR.SPRING

desc: RESSORT

6шт.

70

4656 306 074

PISTON

desc: PISTON

1шт.

80

0732 042 631

COMPR.SPRING

desc: RESSORT

1шт.

90

4656 306 094

CONTOL PISTON

desc: PISTON REGLAGE

1шт.

110

0732 042 719

COMPR.SPRING

desc: RESSORT

1шт.

150

4656 306 065

GASKET

desc: JOINT

1шт.

160

4656 306 051

HOUSING

desc: CARTER

1шт.

170

0736 101 257

CAP SCREW

desc: VIS

18шт.

180

0501 314 770

PRESS.REGUL.CPL

desc: PRESS.REGUL.CPL.

3шт.

190

1043 326 045

FIXING PLATE

desc: TOLE SUPPORT

3шт.

200

0736 101 094

CAP SCREW

desc: VIS

3шт.

210

4656 306 065

GASKET

desc: JOINT

1шт.

220

4656 306 052

HOUSING

desc: CARTER

1шт.

230

0736 101 257

CAP SCREW

desc: VIS

18шт.

240

0501 314 770

PRESS.REGUL.CPL

desc: PRESS.REGUL.CPL.

3шт.

250

1043 326 045

FIXING PLATE

desc: TOLE SUPPORT

3шт.

260

0736 101 094

CAP SCREW

desc: VIS

3шт.

270

4656 206 004

WIRING HARNESS

desc: FAISCEAU CABLES

1шт.

280

4656 306 064

GASKET

desc: JOINT

1шт.

290

4656 306 054

COVER

desc: COUVERCLE

1шт.

300

0736 101 257

CAP SCREW

desc: VIS

14шт.

310

4656 306 064

GASKET

desc: JOINT

1шт.

320

4656 306 055

COVER

desc: COUVERCLE

1шт.

330

1058 327 026

RETAINING CLAMP

desc: ETRIER RETENUE

1шт.

340

0736 101 257

CAP SCREW

desc: VIS

14шт.

350

0899 316 818

GASKET

desc: JOINT

1шт.

360

0899 316 819

INTERM.SHEET

desc: TOLE INTERM

1шт.

362

0501 316 715

SCREEN

desc: TAMIS

6шт.

370

0899 316 820

GASKET

desc: JOINT

1шт.

380

0899 316 821

DUCT PLATE

desc: PLAQUE CANIVEAU

1шт.

390

0736 101 259

CAP SCREW

desc: VIS

18шт.
