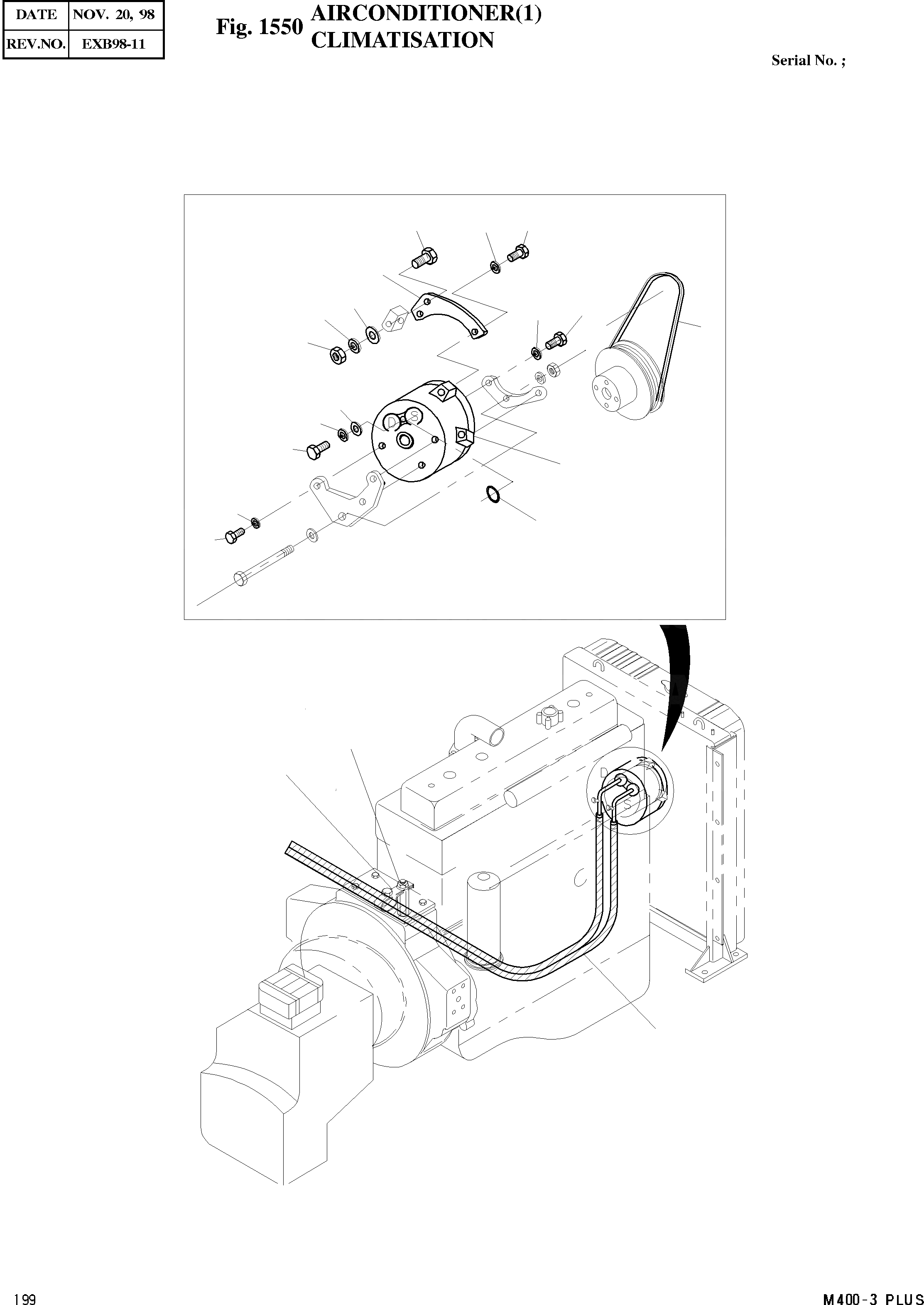

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

4920-1048

COOLER ASS'Y

SC: D

-2шт.

1

2208-6014

COMPRESSOR 4PK.V-5

desc: COMPRESSEUR

1шт.

2

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

3шт.

3

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

3шт.

4

2106-1019D2

V-BELT 4PK. 1470L

desc: COURROIE

1шт.

5

4185-1725

HOSE;COMPRESSOR

desc: TUYAU FLEXIBLE

1шт.

6

2180-1219

WASHER;SEAL

desc: RONDELLE D'ETANCHEITE

2шт.

7

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX M10X1.5X35

1шт.

8

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

1шт.

9

S5020603

WASHER PLAIN M10

desc: RONDELLE PLATE

1шт.

40

2124-1509D6

CLIP d42/M8

desc: ATTACHE

1шт.

42

2121-1305

NUT M8X1.25

desc: ECROU

1шт.

44

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

45

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

4шт.

46

4514-1014

HOLDER;COMPRESSOR

desc: POSSESSEUR

1шт.

47

S0560753

BOLT M12X1.75X50

SERIAL: 1001-1017

1шт.

47

S0560853

BOLT M12X1.75X55

SERIAL: 1018

1шт.

48

S5102703

WASHER;SPRING .12

desc: RONDELLE ELASTIQUE M12

1шт.

49

2114-1058D54

WASHER;PLAIN d36/d13.5

desc: RONDELLE PLATE

1шт.

50

S4012733

NUT M12X1.75

desc: ECROU

1шт.
