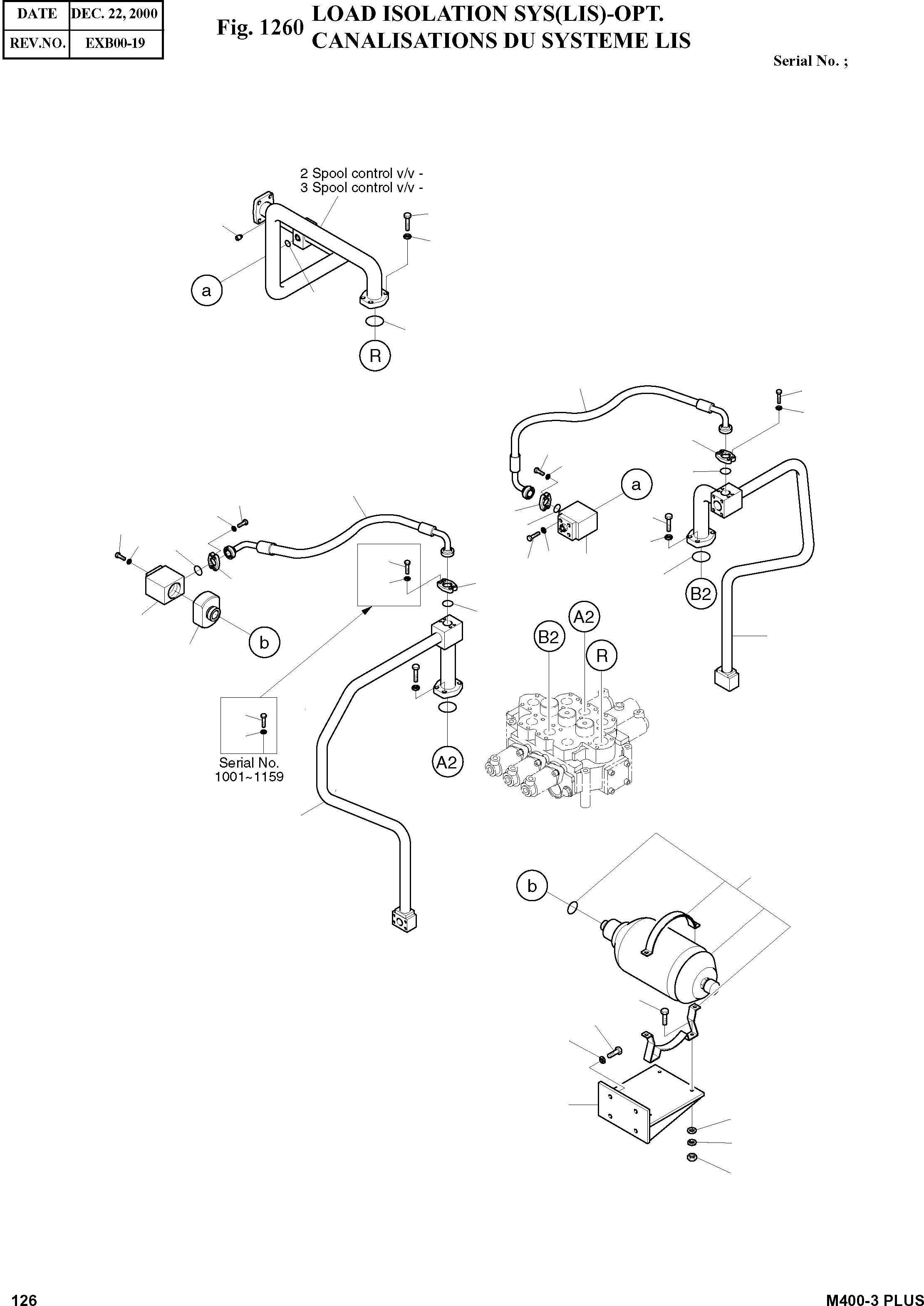

Запчасти Doosan Daewoo LOAD ISOLATION SYS(LIS)-OPT BODY PARTS

-

4400-4227

LIS PIPING(OPT)

SC: D

-2шт.

1

4420-9446B

SOLENOID VALVE

SERIAL: 1001-1017

2шт.

1

4420-9446BP

SOLENOID VALVE

SERIAL: 1018-1244

2шт.

1

4420-9446C

SOLENOID VALVE

SERIAL: 1245

2шт.

3

4195-4873

SUPPORT

desc: SUPPORT

1шт.

4

4183-4989

PIPE;RETURN 2-SPOOL(STD)

desc: TUYAU

1шт.

5

4183-4988

PIPE;UP('A2')

SERIAL: 1001-1159

1шт.

5

4183-4988A

PIPE;UP('A2')

SERIAL: 1160

1шт.

6

4183-4987A

PIPE;DOWN('B2')

SERIAL: 1001-1159

1шт.

6

4183-4987B

PIPE;DOWN('B2')

SERIAL: 1160

1шт.

7

2184-1124D75

HOSE 1" SAE. 1300L

SERIAL: 1001-1159

1шт.

7

2184-1124D182

HOSE 1" SAE. 1300L

SERIAL: 1160

1шт.

8

2184-1124D65

HOSE 1" SAE. 1100L

desc: TUYAU FLEXIBLE

1шт.

9

4181-2689

ADAPTER;ACC TO SOL'N BSP 2"-SAE1"

desc: RACCORD ADAPTATEUR

1шт.

10

S5010513

WASHER;PLAIN M8

desc: RONDELLE M8

4шт.

11

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

12

S4012533

NUT M8X1.25

desc: ECROU

4шт.

13

2181-9078

FLANGE;HALF 1" SAE

desc: FLASQUE EN DEUX PARTIES

8шт.

14

2180-1026D19

O-RING 1" SAE

desc: JOINT TORIQUE

6шт.

15

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1159

12шт.

15

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1160

8шт.

16

S5110601

WASHER;SPRING M10X1.5

desc: RONDELLE ELASTIQUE M10

24шт.

17

2181-2047

PLUG

desc: BOUCHON

1шт.

18

2180-1026D27

O-RING 2.0" SAE

desc: JOINT TORIQUE

1шт.

19

S2214261

BOLT;SOCKET M10X1.5X130

desc: BOULON 6 PANS CREUX

8шт.

20

S2215461

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX M12X1.75X40

12шт.

21

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

22

S2212161

BOLT;SOCKET M10X1.5X28

SERIAL: 1001-1159

4шт.

22

S2212161

BOLT;SOCKET M10X1.5X28

SERIAL: 1160

8шт.

24

2180-1026D24

O-RING 1.5" SAE

desc: JOINT TORIQUE

2шт.

26

S5110701

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

12шт.

27

S0515153

BOLT M12X1.75X28

desc: BOULON A 6 PANS

4шт.

28

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

4шт.

29

4460-9038

ACCUMULATOR AS10P-330-CGO

desc: RESERVOIR

1шт.

32

4183-1519

PIPE;RETURN 3-SPOOL(OPT)

desc: TUYAU

1шт.
