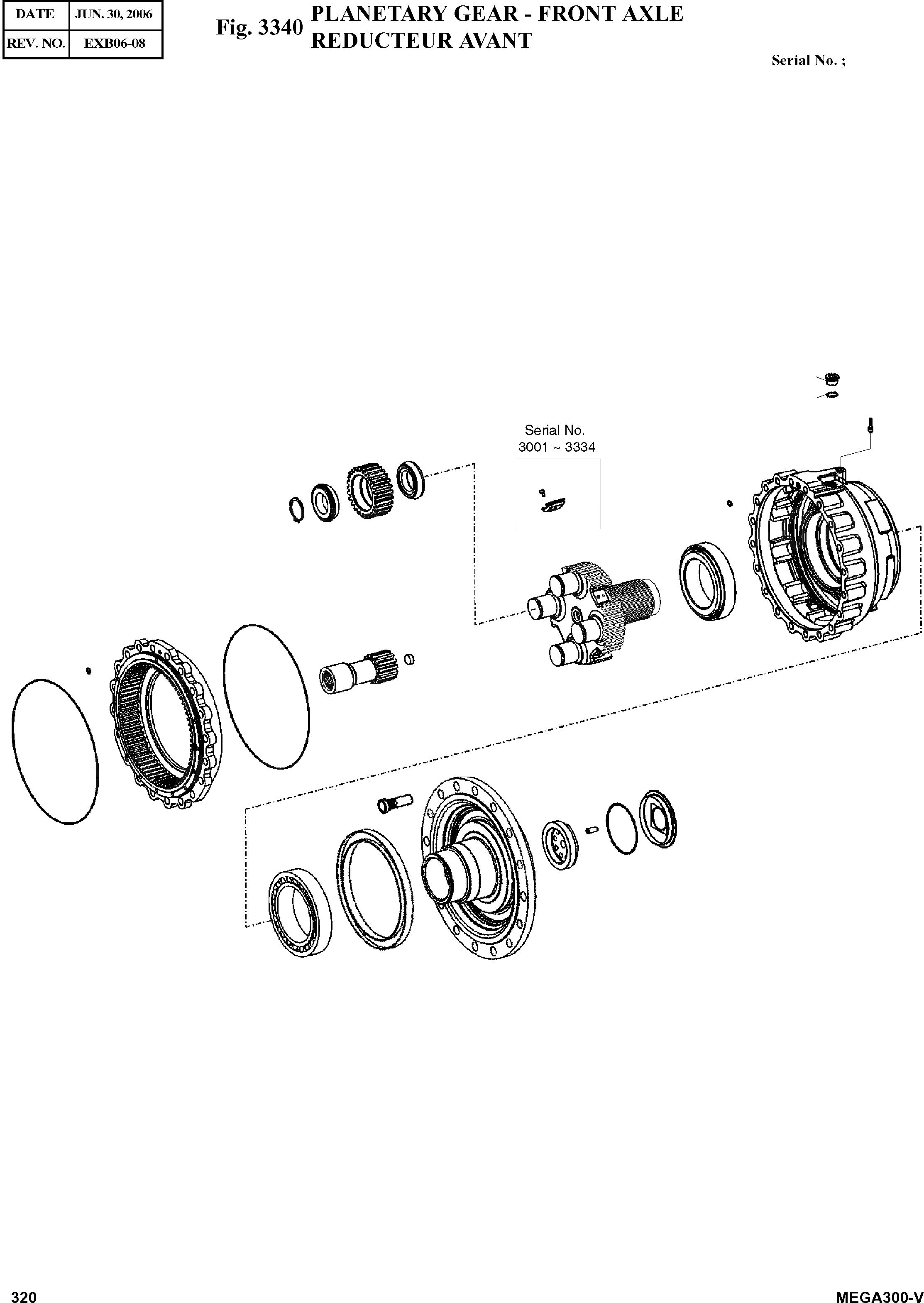

Запчасти Doosan Daewoo PLANETARY GEAR - FRONT AXLE HYDRAULIC PARTS

10

K9000624

HOUSING

SERIAL: 3001-3334

2шт.

10

K9000340

HOUSING

SERIAL: 3335

2шт.

20

K9000032

PLUG

desc: BOUCHON

2шт.

30

K9000179

O-RING

desc: JOINT TORIQUE

4шт.

40

K9000334

GEAR;RING

desc: PIGNON

2шт.

50

K9000176

O-RING

desc: JOINT TORIQUE

4шт.

60

K9000279

SEAL;SLIDE RING

SERIAL: 3001-3334

2шт.

60

K9000240

SEAL;SLIDE RING

SERIAL: 3335

2шт.

70

K9000324

BEARING;TAPPER ROLLER

desc: ROULEMENT

2шт.

80

K9000323

BEARING;TAPPER ROLLER

desc: ROULEMENT

2шт.

90

K9000625

SHAFT;OUTPUT

SERIAL: 3001-3334

2шт.

90

K9002863

SHAFT;OUTPUT

SERIAL: 3335

2шт.

100

K9000292

NUT;ADJUSTING

desc: ECROU

2шт.

110

K9000173

PIN;SLOT

desc: GOUPILLE

2шт.

120

K9000286

COVER

desc: COUVERCLE

2шт.

130

2.180-00284

O-RING

desc: JOINT TORIQUE

2шт.

150

K9000337

SHAFT;SUN GEAR

desc: ARBRE

2шт.

160

K9000336

GEAR;PLANET

desc: PIGNON

8шт.

180

K9000341

CARRIER;PLANET

desc: PORTEUR DE PLANETE

2шт.

190

K9000318

PLATE;OIL COLL

SERIAL: 3001-3334

8шт.

192

K9000305

SCREW;CAP

SERIAL: 3001-3334

16шт.

210

K9000277

BOLT;STOP

desc: BOULON

2шт.

250

K9000321

RING;BEARING INNER

desc: ANNEAU

8шт.

252

K9000322

RING;BEARING INNER

desc: ANNEAU

8шт.

270

K9000171

RING;RETAINING

desc: ANNEAU DE SOUTIEN

8шт.

281

K9000164

SCREW;PLUG

SERIAL: 3335

2шт.

282

1.180-00137

O-RING

SERIAL: 3335

2шт.

400

K9002864

BOLT;WHEEL

SERIAL: 3335

32шт.
