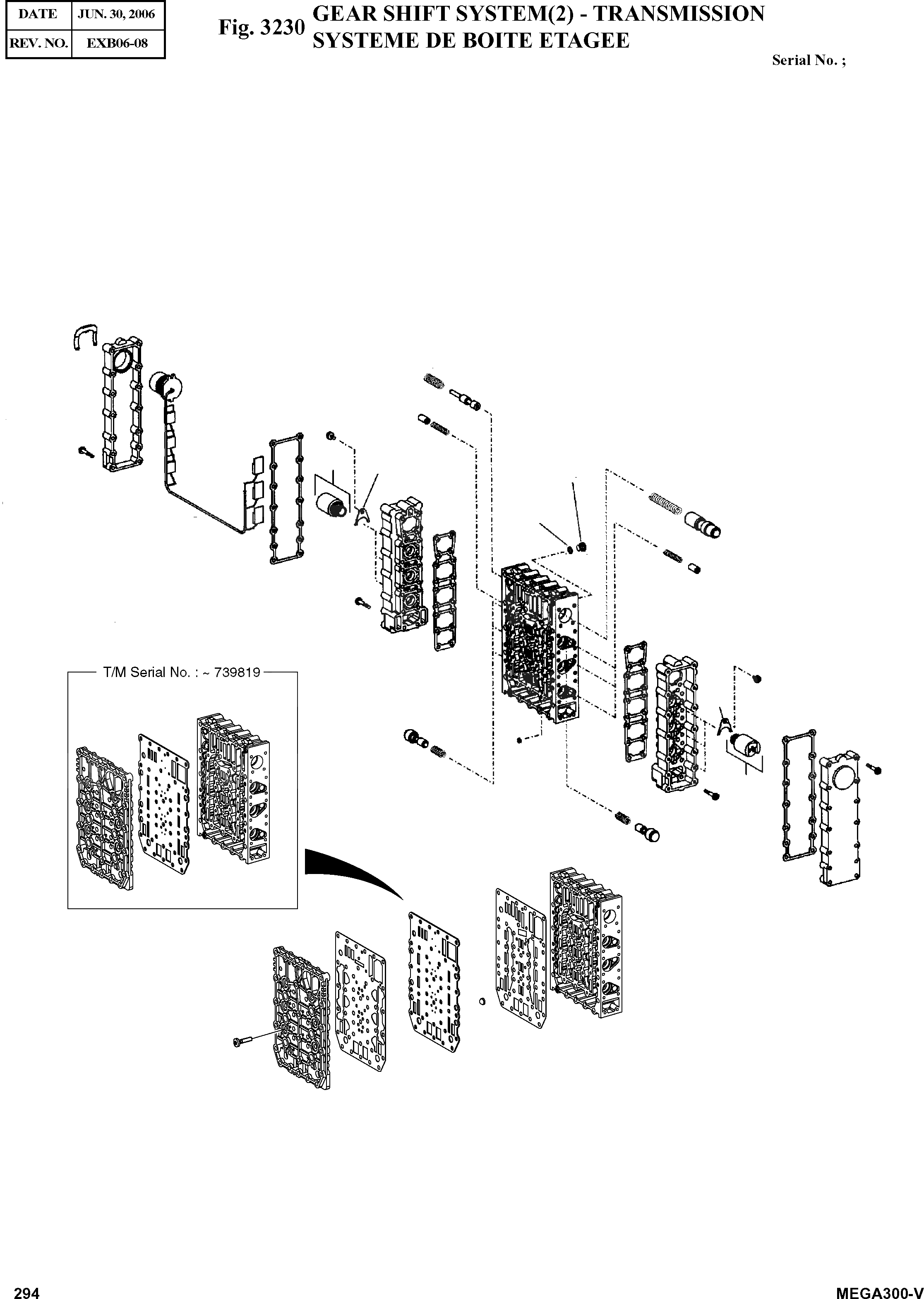

Запчасти Doosan Daewoo GEAR SHIFT SYSTEM(2) - TRANSMISSION HYDRAULIC PARTS

10

1.451-00082

BLOCK;VALVE

desc: BLOC

1шт.

12

1.120-00165

PLUG

desc: BOUCHON

8шт.

13

180-00408

O-RING

desc: JOINT TORIQUE

8шт.

20

1.415-00001

ORIFICE

desc: ORIFICE

6шт.

30

1.409-00006

PISTON

desc: PISTON

6шт.

40

1.131-00004

SPRING

desc: RESSORT

6шт.

50

1.409-00007

PISTON

desc: PISTON

6шт.

60

1.131-00005

SPRING

desc: RESSORT

6шт.

70

1.409-00008

PISTON

desc: PISTON

1шт.

80

1.131-00006

SPRING

desc: RESSORT

1шт.

90

K9000101

PISTON;CONTROL

desc: PISTON

1шт.

110

1.131-00007

SPRING

desc: RESSORT

1шт.

150

K9000115

GASKET

desc: GARNITURE

1шт.

160

2.402-00304

HOUSING

desc: CARTER

1шт.

170

1.120-00057

SCREW

desc: VIS

18шт.

180

1.421-00001

REGULATOR;PRESS

desc: REGULATEUR

3шт.

190

1.412-00004

PLATE

desc: PLAQUE

3шт.

200

1.120-00086

SCREW

desc: VIS

3шт.

210

K9000115

GASKET

desc: GARNITURE

1шт.

220

2.402-00304

HOUSING

desc: CARTER

1шт.

230

1.120-00057

SCREW

desc: VIS

18шт.

240

1.421-00001

REGULATOR

desc: REGULATEUR

3шт.

250

1.412-00004

PLATE

desc: PLAQUE

3шт.

260

1.120-00086

SCREW

desc: VIS

3шт.

270

1.530-00001

HARNESS;WIRING

desc: HARNAIS

1шт.

280

K9000109

GASKET

desc: GARNITURE

1шт.

290

1.430-00002

COVER

desc: COUVERCLE

1шт.

300

1.120-00057

SCREW

desc: VIS

14шт.

310

K9000109

GASKET

desc: GARNITURE

1шт.

320

1.430-00002

COVER

desc: COUVERCLE

1шт.

330

1.124-00141

CLAMP

desc: ATTACHE

1шт.

340

1.120-00057

SCREW

desc: VIS

14шт.

350

1.180-00007

GASKET

SERIAL: 739820

1шт.

360

1.461-00005

SHEET

SERIAL: 739819

1шт.

360

K9002920

SHEET

SERIAL: 739820

1шт.

370

1.180-00008

GASKET

SERIAL: 739820

1шт.

362

1.471-00007

SCREEN

desc: ECRAN

6шт.

380

K9000100

PLATE

desc: PLAQUE

1шт.

390

1.120-00062

SCREW M6X23

SERIAL: 739819

18шт.

390

1.120-00087

SCREW M6X25

SERIAL: 739820

18шт.
