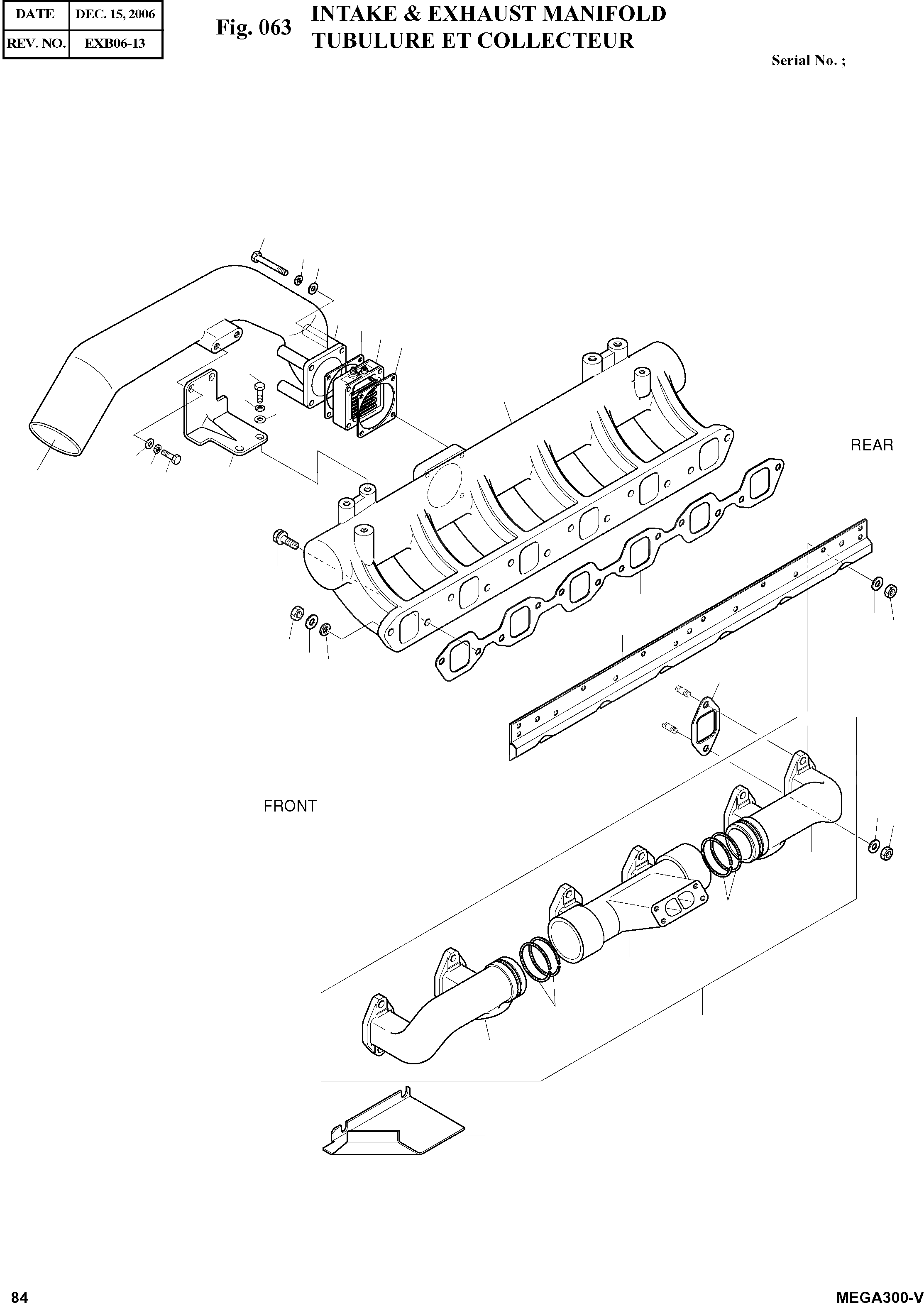

Запчасти Doosan Daewoo INTAKE & EXHAUST MANIFOLD ENGINE PARTS

1

65.08100-6073

EXHAUST MANIFOLD ASS'Y

SERIAL: 050107

1шт.

1

65.08100-6073A

EXHAUST MANIFOLD ASS'Y

SERIAL: 050108

1шт.

2

65.08101-0193

MANIFOLD;EXHAUST(L.H.)

SERIAL: 050107

1шт.

2

65.08101-0193A

MANIFOLD;EXHAUST(L.H.)

SERIAL: 050108

1шт.

3

65.08101-0207

MANIFOLD;EXHAUST(M)

SERIAL: 050107

1шт.

3

65.08101-0207A

MANIFOLD;EXHAUST(M)

SERIAL: 050108

1шт.

4

65.08101-0194

MANIFOLD;EXHAUST(R.H.)

SERIAL: 050107

1шт.

4

65.08101-0194A

MANIFOLD;EXHAUST(R.H.)

SERIAL: 050108

1шт.

5

65.96501-0007

RING;EXHAUST MANIFOLD

desc: . BAGUE

4шт.

6

65.08901A0013

GASKET;EXHAUST MANIFOLD

desc: JOINT

6шт.

7

65.08120-0017

SCREEN;HEAT

desc: ECRAN

1шт.

8

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

12шт.

9

06.15010-2312

WASHER;PLAIN

desc: RONDELLE PLATE

12шт.

10

65.08120-5018B

HEAT;SCREEN

desc: CRAN DE LA CHALEUR

1шт.

11

65.08201-5059

MANIFOLD;INTAKE

desc: COLLECTEUR

1шт.

12

65.08902A0024

GASKET;INTAKE MANIFOLD

desc: JOINT

1шт.

13

06.01923-3218

BOLT ASS'Y M10X35

desc: BOULON A 6 PANS

8шт.

14

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

2шт.

15

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

16

06.15030-0514

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

17

65.08202-5065

STAKE;INTAKE

desc: PIEU

1шт.

18

65.26803-7028A

HEATER;AIR

SERIAL: 041213

1шт.

18

65.26803-7028B

HEATER;AIR

SERIAL: 041214

1шт.

19

65.09904-0008

GASKET;AIR PIPE

desc: JOINT

2шт.

20

06.01013-9128

BOLT;HEX. M8X130

desc: BOULON A 6 PANS

4шт.

21

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

22

06.15010-2311

WASHER

desc: RONDELLE

4шт.

25

65.08240-0027

BRACKET

desc: SUPPORT

1шт.

26

06.01733-4309

BOLT;HEX M12X1.5X35

desc: BOULON A 6 PANS

4шт.

27

06.16731-2109

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

28

06.15010-2313

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.
