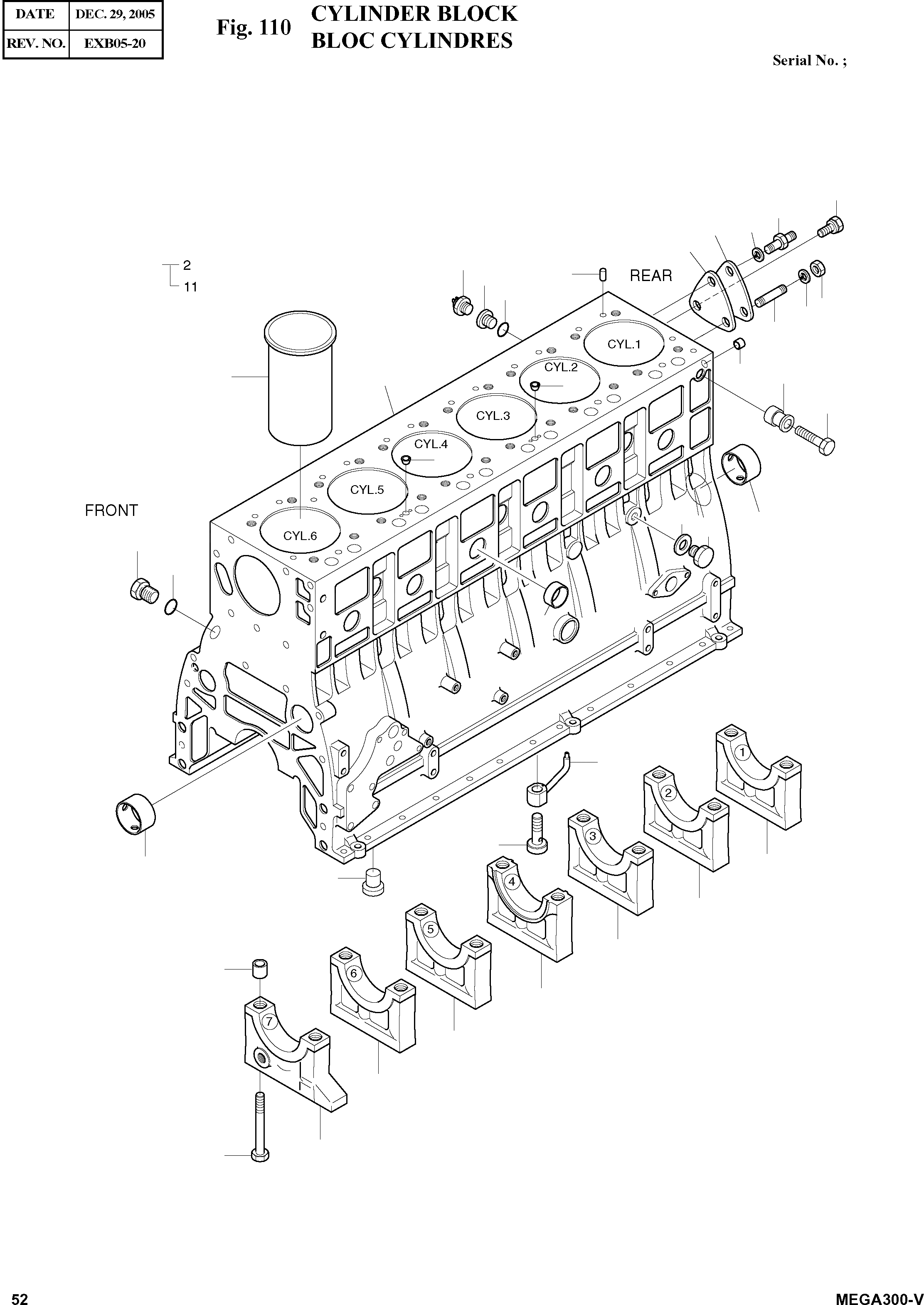

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

1

65.01101-6040E

CYLINDER BLOCK ASS'Y(T/C)

SERIAL: 030730

1шт.

1

65.01101-6040G

CYLINDER BLOCK ASS'Y(T/C)

SERIAL: 040209

1шт.

1

65.01101-6040H

CYLINDER BLOCK ASS'Y(T/C)

SERIAL: 040726

1шт.

1

65.01101-6040I

CYLINDER BLOCK ASS'Y(T/C)

SERIAL: 040727

1шт.

2

65.01101-0040L

BLOCK;CYLINDER(T/C)

SERIAL: 040726

1шт.

2

65.01101-0040N

BLOCK;CYLINDER(T/C)

SERIAL: 040727

1шт.

3

06.15091-0326

PLUG;CORE

SERIAL: 040209

9шт.

3

65.91606-0037

PLUG;CORE

SERIAL: 040210

9шт.

4

06.15091-0313

PLUG;CORE

desc: BOUCHON

2шт.

5

65.04410-0017

BUSH;CAM SHAFT

SC: B

4шт.

6

65.01105-1172A

BEARING;CAP NO1.2.6

SERIAL: 030730

3шт.

6

65.01105-1172B

BEARING;CAP NO1.2.6

SERIAL: 030731

3шт.

7

65.01105-1160E

BEARING;CAP NO.3.5

SERIAL: 030730

2шт.

7

65.01105-1160F

BEARING;CAP NO.3.5

SERIAL: 030731

2шт.

8

65.01105-1156C

CAP BEARING;THRUST

SERIAL: 030730

1шт.

8

65.01105-1156D

CAP BEARING;THRUST

SERIAL: 030731

1шт.

9

65.01105-1164D

BEARING;CAP NO7

SERIAL: 030730

1шт.

9

65.01105-1164E

BEARING;CAP NO7

SERIAL: 030731

1шт.

10

65.91710-0035

RING;LOCATING

SERIAL: 030428

14шт.

10

65.91710-0035B

RING;LOCATING

SERIAL: 030429

14шт.

11

65.90020-0035B

BOLT;BEARING CAP (12.9T)

desc: BOULON A 6 PANS

14шт.

12

65.91001-0002

PLUG

desc: BOUCHON

2шт.

13

65.91020-0013

PLUG

desc: BOUCHON

1шт.

14

65.90310-0048

SCREW;PLUG M10X1.5

desc: VIS

6шт.

15

06.56180-0714

RING;SEAL A10X15

desc: RONDELLE D'ETANCHEITE

6шт.

16

65.01201-0050

LINER;CYLINDER

desc: RECOUVREMENT

6шт.

17

65.90310-0091

SCREW;PLUG M12X1.5X20

desc: VIS

1шт.

18

06.56190-0704

RING;SEAL A12X18

desc: RONDELLE D'ETANCHEITE

1шт.

19

65.96601A0042

GASKET;END COVER

desc: JOINT

1шт.

20

65.91605-0006B

COVER;END

desc: COUVERCLE

1шт.

21

06.01913-3114

BOLT ASS'Y M8X22

desc: BOULON A 6 PANS

1шт.

22

06.06225-0704

BOLT;STUD M8X20

desc: BOULON DE GOUJON

1шт.

23

65.90201-0075

BOLT;SPACER

desc: BOULON A 6 PANS

1шт.

24

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

25

06.11063-8214

NUT;HEX

desc: ECROU 6 PANS

1шт.

26

65.98130-0194

ADAPTER;OIL PRESS GAUGE

desc: RACCORD ADAPTEUR

1шт.

27

06.56180-0714

RING;SEAL A10X15

desc: RONDELLE D'ETANCHEITE

1шт.

28

65.27441-7007

SWITCH;OIL PRESS

desc: INTERRUPTEUR

1шт.

29

65.01601-6003

OIL SPRAY NOZZLE ASS'Y

desc: BEC

6шт.

30

65.05405-6001

RELIEF VALVE ASS'Y

desc: CLAPET DE DECHARGE

6шт.

31

65.91701-0148

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

32

06.01283-7524

BOLT;HEX M16X2X65

desc: BOULON A 6 PANS

1шт.
