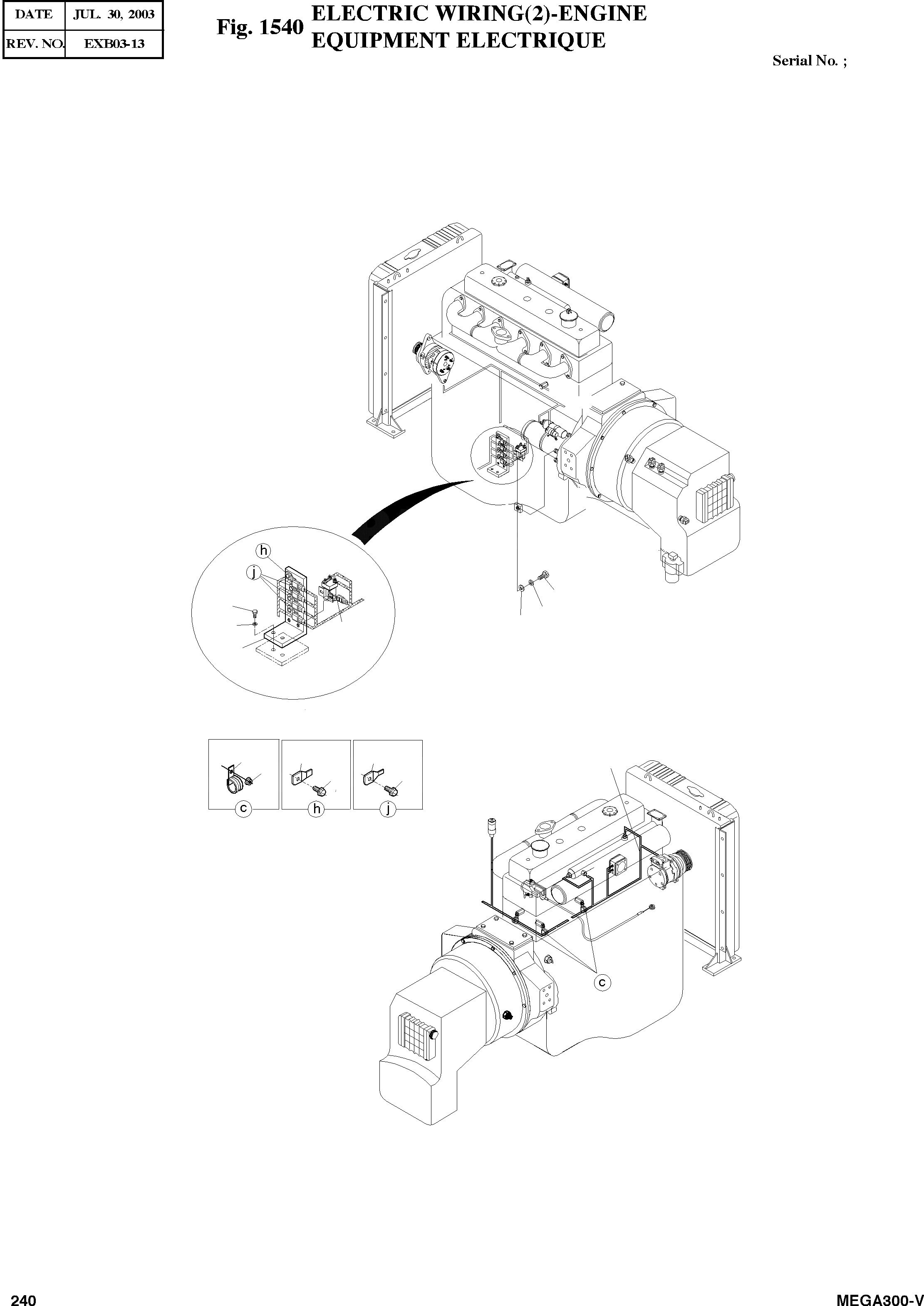

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

500-00174

ELECTRIC PARTS(3)

SC: D

-2шт.

3

530-00293

HARNESS;ENGINE

SERIAL: 2001-2003

1шт.

3

530-00293A

HARNESS;ENGINE

SERIAL: 2004

1шт.

3A

2548-1027

DIODE

desc: . DIODE

2шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

19

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

1шт.

20

195-02267

BRACKET;CONNECTOR

desc: SUPPORT

1шт.

21

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

22

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

26

2197-1660

BRACKET;HOUSING

desc: SUPPORT

1шт.

27

2197-1661

BRACKET;HOUSING

desc: SUPPORT

4шт.

31

124-00208D3

CLIP M8

desc: ATTACHE

3шт.

34

2121-1305

NUT M8X1.25

desc: ECROU

3шт.

35

120-00276

BOLT M8X1.25X12

desc: BOULON A 6 PANS

4шт.
