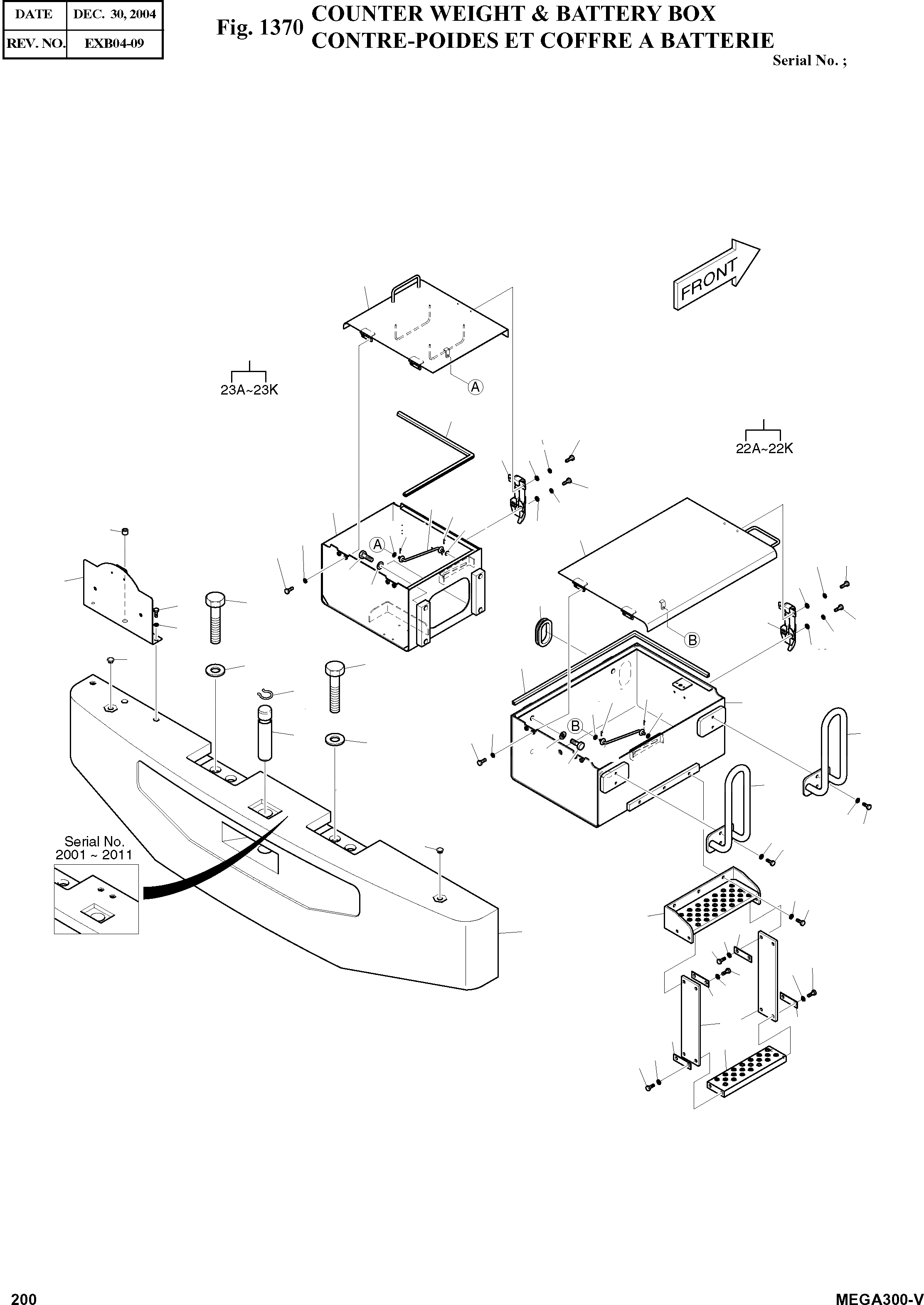

Запчасти Doosan Daewoo COUNTER WEIGHT & BATTERY BOX BODY PARTS

-

600-00037

COUNTER WEIGHT & BATTERY BOX

SC: D

-2шт.

1

624-00036A

WEIGHT;COUNTER

SERIAL: 2001-2011

1шт.

1

624-00036B

WEIGHT;COUNTER

SERIAL: 2012

1шт.

2

2120-2107

BOLT M39X3.0X200

SERIAL: 2001-2122

4шт.

2

DS0002262

BOLT M39X3.0X200

SERIAL: 2123

4шт.

3

4114-1999

WASHER;HARDEN

SERIAL: 2001-2122

4шт.

3

4114-1999A

WASHER;HARDEN

SERIAL: 2123

4шт.

4

123-00045

PIN

desc: BROCHE

1шт.

5

124-00017

CLIP;PIN

desc: ATTACHE

1шт.

6

621-01061A

PLATE;LICENSE

desc: PLAQUE

1шт.

7

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

9шт.

8

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

9

S0565461

BOLT M16X2.0X60

desc: BOULON A 6 PANS

8шт.

10

S5010813

WASHER;PLAIN M16

desc: RONDELLE PLATE

8шт.

11

2160-1201D12

BUSHING;RUBBER

desc: MANCHON

1шт.

12

194-00014A

HANDRAIL;BATTERY BOX

desc: BALUSTRADE

2шт.

13

2114-1058D10

WASHER;PLAIN

desc: RONDELLE PLATE

7шт.

14

625-00067

LADDER

desc: CHELLE

1шт.

15

2191-2205D13

PLATE

desc: PLAQUE D'IDENTIFICATION

4шт.

16

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

8шт.

18

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

8шт.

20

625-00061

RUNG;LADDER

desc: CHELON

1шт.

21

2160-1004D2

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

22

199-00039G

BOX;BATTERY

desc: BOITE

1шт.

22A

-

BOX;BATTERY

desc: . BOITE

1шт.

22B

-

COVER;BATTERY

desc: . COUVERCLE

1шт.

22C

S0508853

BOLT M8X1.25X20

desc: . BOULON A 6 PANS

6шт.

22D

S5102503

WASHER;SPRING

desc: . RONDELLE ELASTIQUE

8шт.

22E

2145-1243

STAY

desc: . ENTRETOISE

1шт.

22F

2114-1058D29

WASHER

desc: . RONDELLE

2шт.

22G

2705-9002

PIN;LOCK

desc: . GOUPILLE DE BLOCAGE

2шт.

22H

2125-9052B

CATCH

desc: . LOQUET

1шт.

22I

S0508653

BOLT M8X1.25X16

desc: . BOULON A PANS

2шт.

22J

2160-1023

TRIM;RUBBER 1120L

desc: . CAOUTCHOUC

1шт.

22K

S5010513

WASHER;PLAIN

desc: . RONDELLE PLATE

4шт.

23

199-00040G

BOX;TOOL

desc: BOITE

1шт.

23A

-

BOX;TOOL

desc: . BOITE

1шт.

23B

-

COVER;TOOL

desc: . COUVERCLE

1шт.

23C

S0508853

BOLT M8X1.25X20

desc: . BOULON A 6 PANS

6шт.

23D

S5102503

WASHER;SPRING

desc: . RONDELLE ELASTIQUE

8шт.

23E

2145-1243

STAY

desc: . ENTRETOISE

1шт.

23F

2114-1058D29

WASHER

desc: . RONDELLE

2шт.

23G

2705-9002

PIN;LOCK

desc: . GOUPILLE DE BLOCAGE

2шт.

23H

2125-9052B

CATCH

desc: . LOQUET

1шт.

23I

S0508653

BOLT M8X1.25X16

desc: . BOULON M8X1.25X12

2шт.

23J

2160-1023

TRIM;RUBBER 800L

desc: . CAOUTCHOUC

1шт.

23K

S5010513

WASHER;PLAIN

desc: . RONDELLE PLATE

4шт.

24

161-00228A

HANGER;STEP

desc: CINTRE

2шт.

25

160-00019

CAP M24

desc: CHAPEAU

2шт.
