Запчасти Doosan Daewoo PILOT PIPING(2 LEVER-3 SPOOL) BODY PARTS

-

400-01284

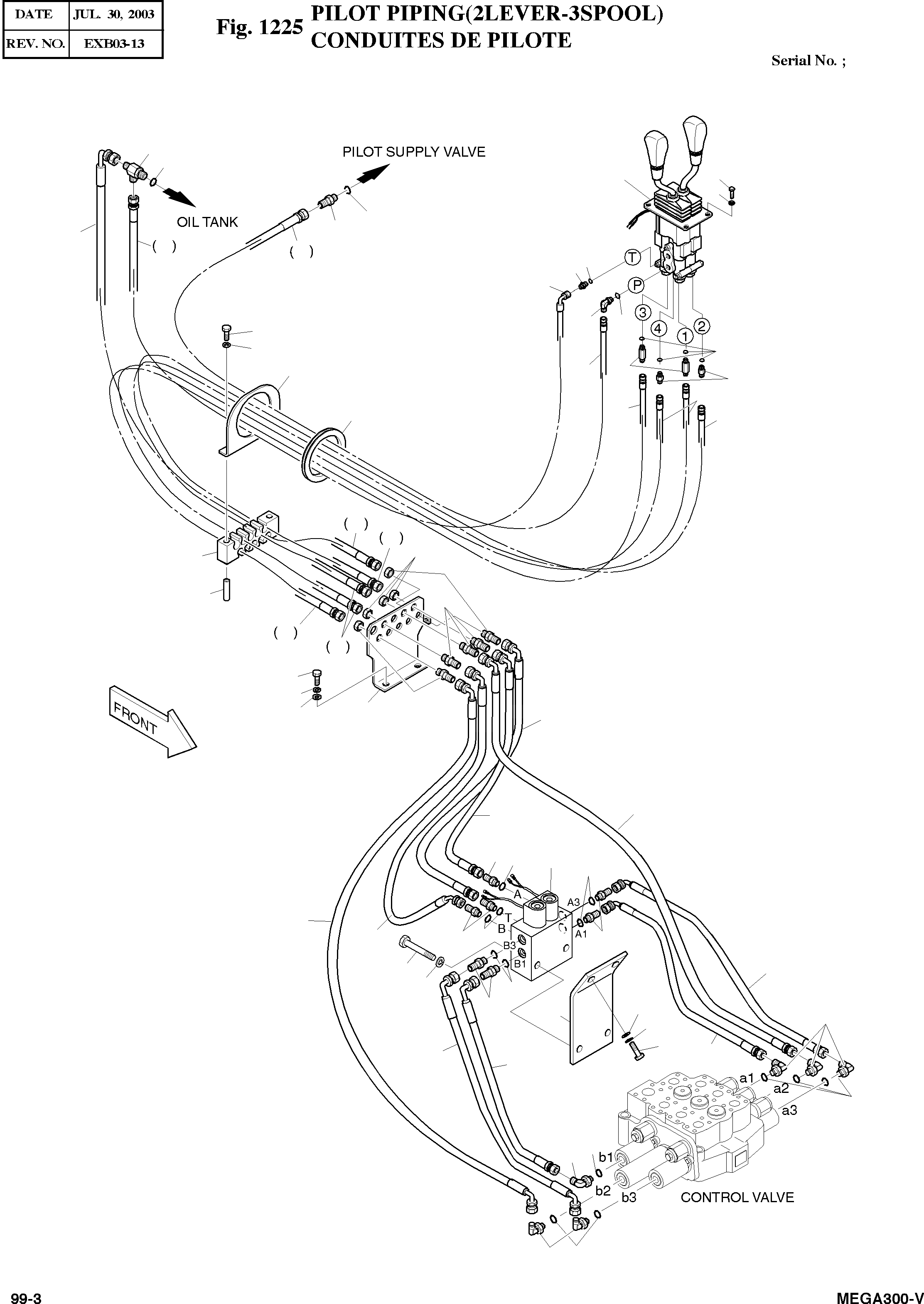

PILOT PIPING (2 LEVER-3 SPOOL)

SC: D

-2шт.

1

420-00390

VALVE;REMOCON

desc: VANNE PILOTE

1шт.

2

S2204861

BOLT M6X1.0X20

desc: BOULON A 6 PANS

4шт.

3

S5110301

WASHER M6

desc: RONDELLE ELASTIQUE M6

4шт.

4

2181-1126D49

ADAPTER UNF9/16-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

5

2181-1126D134

ADAPTER;LONG

desc: RACCORD ADAPTATEUR

2шт.

6

124-00016

CLAMP; RUBBER

desc: COLLIER

1шт.

7

4114-1717

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

8

195-01072

BRACKET

desc: SUPPORT

1шт.

9

2160-1004D57

GROMMET

desc: MANCHON CAOUTCHOUC

1шт.

10

191-00363

PLATE

desc: PLAQUE

1шт.

11

S0556853

BOLT M8X1.25X75

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

13

S0514953

BOLT M12X1.75X22

desc: BOULON A 6 PANS

2шт.

14

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

15

S5010713

WASHER N12

desc: RONDELLE

4шт.

16

2181-2718

ADAPTER;JOINT

desc: RACCORD ADAPTATEUR

2шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

15шт.

18

2181-1702D5

ELBOW

desc: COUDE EN S

6шт.

19

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

8шт.

20

181-00078D3

ADAPTER;JOINT

desc: RACCORD ADAPTATEUR

3шт.

21

2184-1026D123

HOSE;ST-ST 1650L

desc: TUYAU FLEXIBLE

1шт.

22

DS2055658

HOSE;ST-90 2400L

desc: TUYAU FLEXIBLE

1шт.

23

2184-1026D160

HOSE;ST-ST 1700L

desc: TUYAU FLEXIBLE

2шт.

24

2184-1026D220

HOSE;ST-ST 1810L

desc: TUYAU FLEXIBLE

2шт.

25

2184-1036D428

HOSE;ST-90 1220L

desc: TUYAU FLEXIBLE

2шт.

26

2184-1076D5

HOSE;90-45-270 600L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1036D68

HOSE;ST-90 450L

desc: TUYAU FLEXIBLE

2шт.

28

121-00010D1

NUT

desc: ECROU

3шт.

29

S8040061

O-RING

desc: JOINT TORIQUE

5шт.

30

S8040081

O-RING

desc: JOINT TORIQUE

1шт.

31

2181-1126D8

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

32

2181-1702D26

ELBOW

desc: COUDE EN S

1шт.

33

420-00438A

SOLENOID V/V

desc: SOUPAPE A SOLENOIDE

1шт.

34

195-02503

BRACKET

desc: SUPPORT

1шт.

35

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

2шт.

36

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

37

2181-1951D16

TEE

desc: TE

1шт.

38

2184-1036D245

HOSE;ST-90 2200L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1036D256

HOSE;ST-90 650L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1036D125

HOSE;ST-90 780L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1060D20

HOSE;ST-45 800L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1076D100

HOSE;45-90-270 900L

desc: TUYAU FLEXIBLE

1шт.
