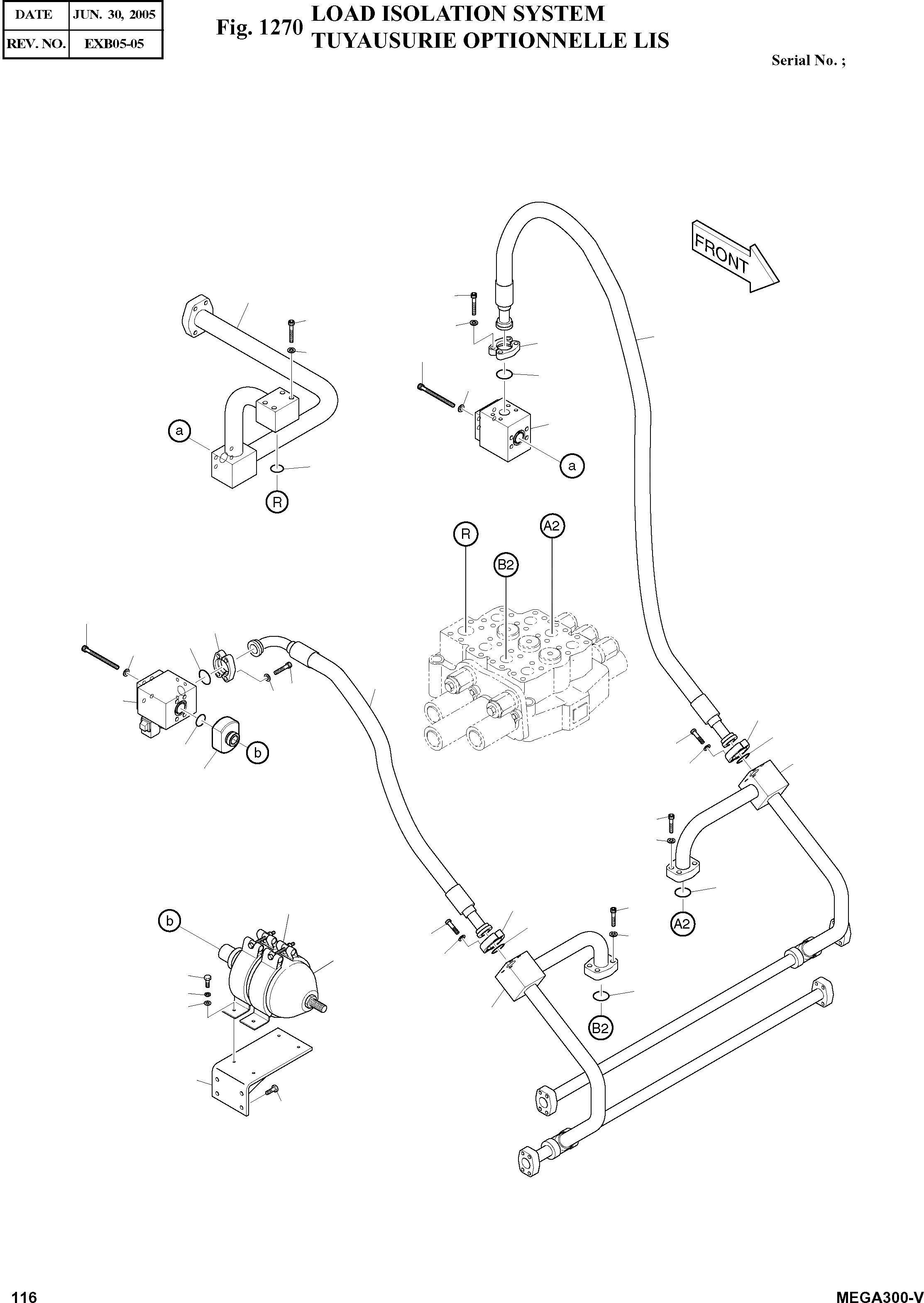

Запчасти Doosan Daewoo LOAD ISOLATION SYSTEM BODY PARTS

-

400-00340

LIS PIPING

SC: D

-2шт.

1

460-00006

ACCUMULATOR KIT

SERIAL: 1001-1329

1шт.

1

460-00006A

ACCUMULATOR KIT

SERIAL: 1330

1шт.

2

4420-9446C

VALVE;SOLENOID

desc: SOUPAPE A SOLENOIDE

2шт.

3

181-00379

ADAPTER

SERIAL: 1001-1220

1шт.

3

181-00379A

ADAPTER

SERIAL: 1221

1шт.

4

S8000381

O-RING

desc: JOINT TORIQUE

1шт.

5

140-00335A

PIPE(R.H);BOOM RAISE

desc: TUYAU

1шт.

6

140-00336A

PIPE(L.H);BOOM LOWER

desc: TUYAU

1шт.

7

140-00337B

PIPE;RETURN

desc: TUYAU

1шт.

8

DS2040275

HOSE PF1-850L

desc: TUYAU FLEXIBLE

1шт.

9

DS2040276

HOSE PF1-1000L

desc: TUYAU FLEXIBLE

1шт.

10

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

11

2181-9078

FLANGE;SPLIT

desc: BRIDE

8шт.

12

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

13

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

8шт.

14

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

36шт.

15

2180-1026D23

O-RING

desc: JOINT TORIQUE

1шт.

16

S2213166

BOLT;SOCKET M10X1.5X75

desc: BOULON A 6 PANS CREUX

4шт.

17

S2214266

BOLT;SOCKET M10X1.5X130

desc: BOULON 6 PANS CREUX

8шт.

19

195-00622A

BRACKET

desc: SUPPORT

1шт.

20

2120-2196D4

BOLT;SET M10X1.5X30

desc: BOULON A 6 PANS

4шт.

21

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

22

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

23

2114-1058D29

WASHER

desc: RONDELLE

4шт.

24

124-00275A

CLAMP;STRAP

SERIAL: 1330

2шт.
