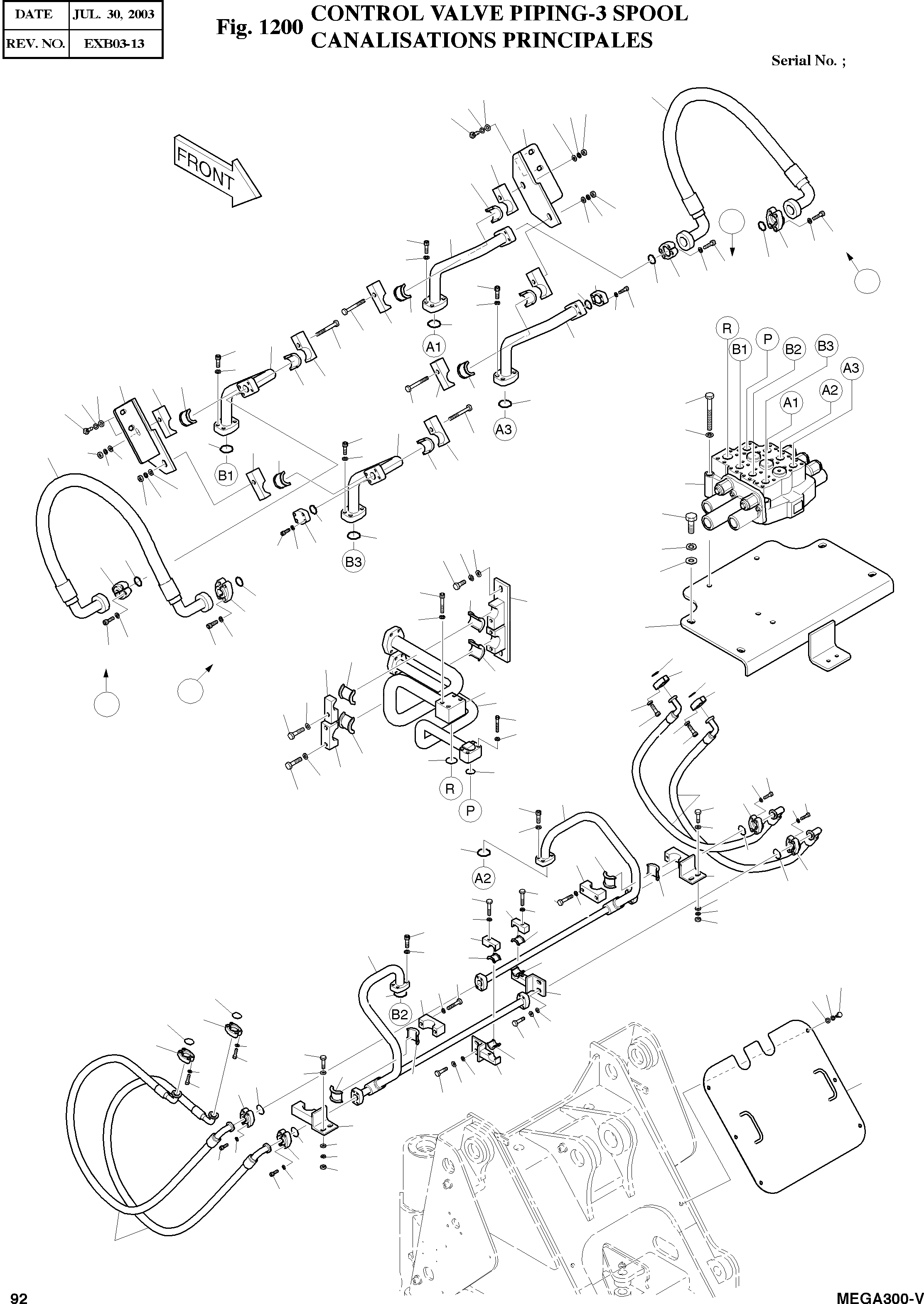

Запчасти Doosan Daewoo CONTROL VALVE PIPING-3 SPOOL BODY PARTS

-

400-00319

CONTROL PIPING

SC: D

-2шт.

1

421-00002A

VALVE;CONTROL

desc: VANNE

1шт.

2

195-01150

SUPPORT;CONTROL V/V

desc: SUPPORT

1шт.

3

193-00208B

PIPE;RETURN

desc: TUYAU

1шт.

4

193-00209A

PIPE;PUMP

desc: TUYAU

1шт.

5

193-00213B

PIPE(R.H);BOOM RAISE

desc: TUYAU

1шт.

6

193-00214A

PIPE(L.H);BOOM DOWN

desc: TUYAU

1шт.

7

193-00211A

PIPE(R.H);BUCKET CROWD

desc: TUYAU

1шт.

8

193-00212A

PIPE(L.H);BUCKET DUMP

desc: TUYAU

1шт.

9

193-00215

PIPE;(R.H)

desc: TUYAU

1шт.

10

193-00216

PIPE;(L.H)

desc: TUYAU

1шт.

11

195-00906

BRACKET;(L.H)

desc: SUPPORT

1шт.

12

195-00597A

BRACKET

desc: SUPPORT

1шт.

13

195-00598A

BRACKET;(R.H)

desc: SUPPORT

1шт.

14

195-00604A

BRACKET

desc: SUPPORT

2шт.

15

195-00606A

BRACKET;(R.H)

desc: SUPPORT

1шт.

16

195-00607A

BRACKET;(L.H)

desc: SUPPORT

1шт.

17

124-00067

CLAMP;PIPE

desc: COLLIER

9шт.

18

2161-2481

RUBBER

desc: CAOUTCHOUC

2шт.

19

191-00364

CLAMP;PIPE

desc: COLLIER

1шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

33шт.

21

S0560453

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

22

2114-1058D46

WASHER;PLAIN

desc: RONDELLE

28шт.

23

S0561853

BOLT M12X1.75X105

desc: BOULON A 6 PANS

3шт.

24

2161-2267A

RUBBER

desc: CAOUTCHOUC

14шт.

25

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE M16

4шт.

26

S0521551

BOLT M16X2.0X45

desc: BOULON A 6 PANS

4шт.

27

2114-1058D2

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

28

S0562061

BOLT M12X1.5X115

SERIAL: 1001-1156

3шт.

28

S0562066

BOLT M12X1.5X115

SERIAL: 1157

3шт.

29

S5102701

WASHER;SPRING M12

SERIAL: 1001-1156

3шт.

29

S5102703

WASHER;SPRING M12

SERIAL: 1157

3шт.

30

S2213166

BOLT;SOCKET M10X1.5X75

desc: BOULON A 6 PANS CREUX

4шт.

31

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

88шт.

32

2180-1026D23

O-RING

desc: JOINT TORIQUE

1шт.

33

2180-1026D19

O-RING

desc: JOINT TORIQUE

13шт.

34

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

24шт.

35

124-00068

CLAMP;PIPE

desc: COLLIER

2шт.

36

S0560653

BOLT M12X1.75X45

desc: BOULON A 6 PANS

10шт.

37

S4012733

NUT

desc: ECROU

8шт.

38

2161-2250A

RUBBER

desc: CAOUTCHOUC

4шт.

39

2124-1601A

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

40

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

14шт.

41

621-01682

COVER

desc: COUVERCLE

1шт.

42

S0561753

BOLT M12X1.75X100

desc: BOULON A 6 PANS

4шт.

43

2180-1026D2

O-RING

desc: JOINT TORIQUE

8шт.

44

2181-9079

FLANGE;HALF

desc: FLASQUE EN DEUX PARTIES

16шт.

45

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1067

32шт.

45

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1068

56шт.

46

2184-1250D105

HOSE

desc: TUYAU FLEXIBLE

2шт.

47

2181-9078

FLANGE;HALF

desc: BRIDE

8шт.

48

2181-2157D5

FLANGE;COVER

desc: BRIDE

2шт.

49

DS2045226

HOSE;BUCKET

desc: TUYAU FLEXIBLE

1шт.

50

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS

4шт.

51

DS2045225

HOSE;BUCKET

desc: TUYAU FLEXIBLE

1шт.

52

2184-1250D106

HOSE;BOOM

desc: TUYAU FLEXIBLE

2шт.

53

S2212466

BOLT;SOCKET M10X1.5X40

SERIAL: 1001-1067

24шт.
