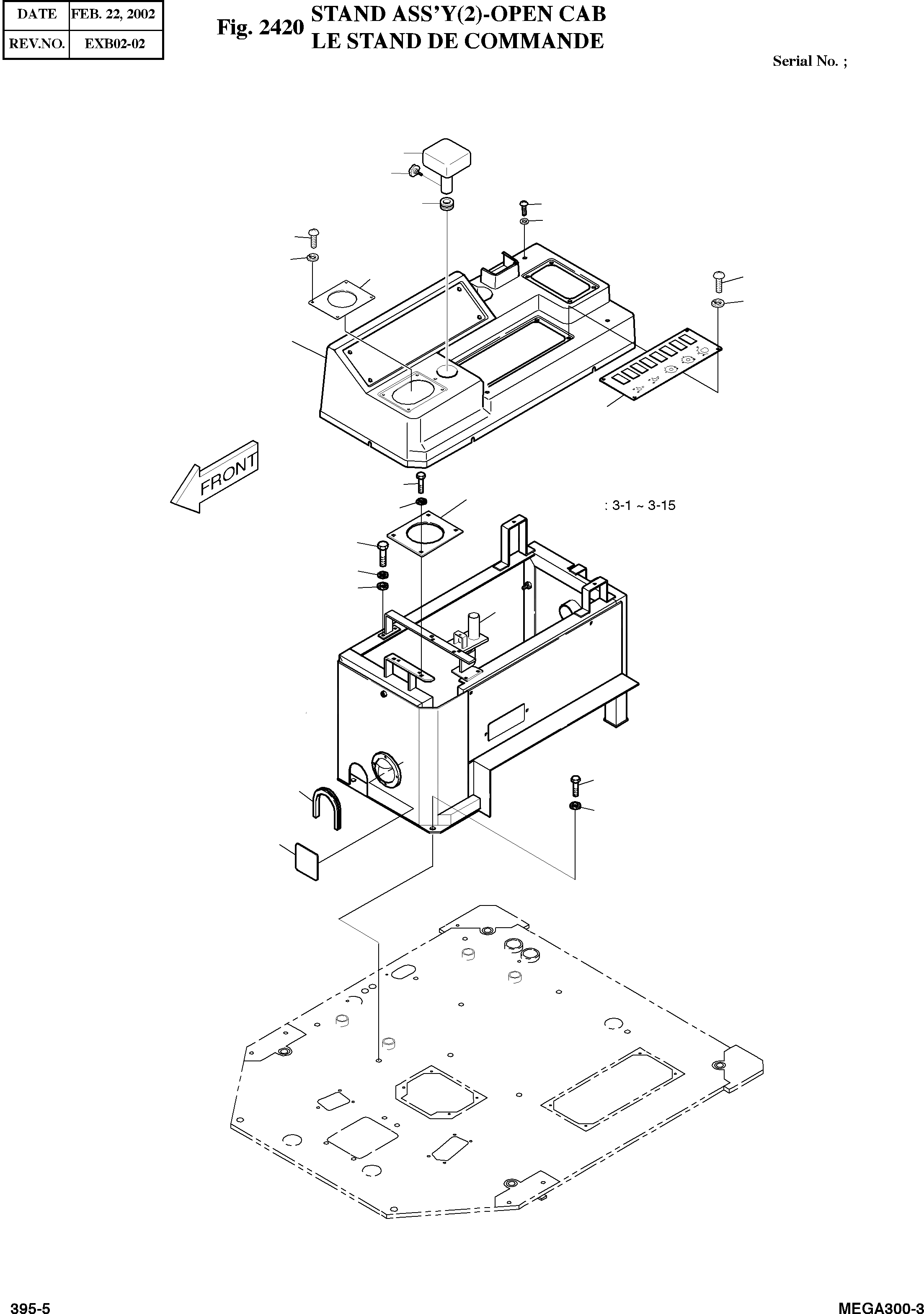

Запчасти Doosan Daewoo STAND ASSY(2)-OPEN CAB FRONT PARTS

-

195-01022

STAND ASS'Y-OPEN CAB

SC: D

-2шт.

3

4195-3983E

SUPPORT ASS'Y

desc: ENSEMBLE DE SUPPORTS

1шт.

3-7

2161-1744

RUBBER;TRIM

desc: . CAOUTCHOUC

1шт.

3-12

4197-1610A

BRACKET

desc: . SUPPORT

1шт.

3-13

S0508953

BOLT M8X1.25X22

desc: . BOULON A 6 PANS

4шт.

3-14

S5102503

WASHER;SPRING M8

desc: . RONDELLE ELASTIQUE

4шт.

3-15

S5010513

WASHER;PLAIN M8

desc: . RONDELLE PLATE

4шт.

4

195-01024

CONTROL STAND

desc: LE STAND DE COMMANDE

1шт.

5

4891-1492

TAPE

desc: RUBAN

3шт.

7

621-01050

COVER;SWITCH

desc: COUVERCLE

1шт.

8

2114-1898D5

WASHER

desc: RONDELLE

11шт.

9

2120-2166D36

BOLT M6X1.0X20

desc: BOULON A 6PANS

4шт.

11

2120-2166D26

SCREW M4X0.7X14

desc: VIS

8шт.

12

2114-1898D13

WASHER;PLAIN

desc: RONDELLE PLATE

8шт.

14

2120-2166D10

SCREW M6X1.0X14

desc: VIS

7шт.

19

4627-1106

COVER;JOYSTICK

desc: COUVERCLE

1шт.

20

2120-2166D4

BOLT M10X1.5X20

desc: BOULON A 6PANS

4шт.

21

2114-1898D1

WASHER;PLAIN

desc: RONDELLE

4шт.

26

4197-1786

REST;ARM

desc: BALANCIER

1шт.

27

4132-1138

KNOB

desc: BOSSE

1шт.

28

2160-1004D16

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

34

4621-2918C

PLATE

desc: PLAQUE

1шт.
