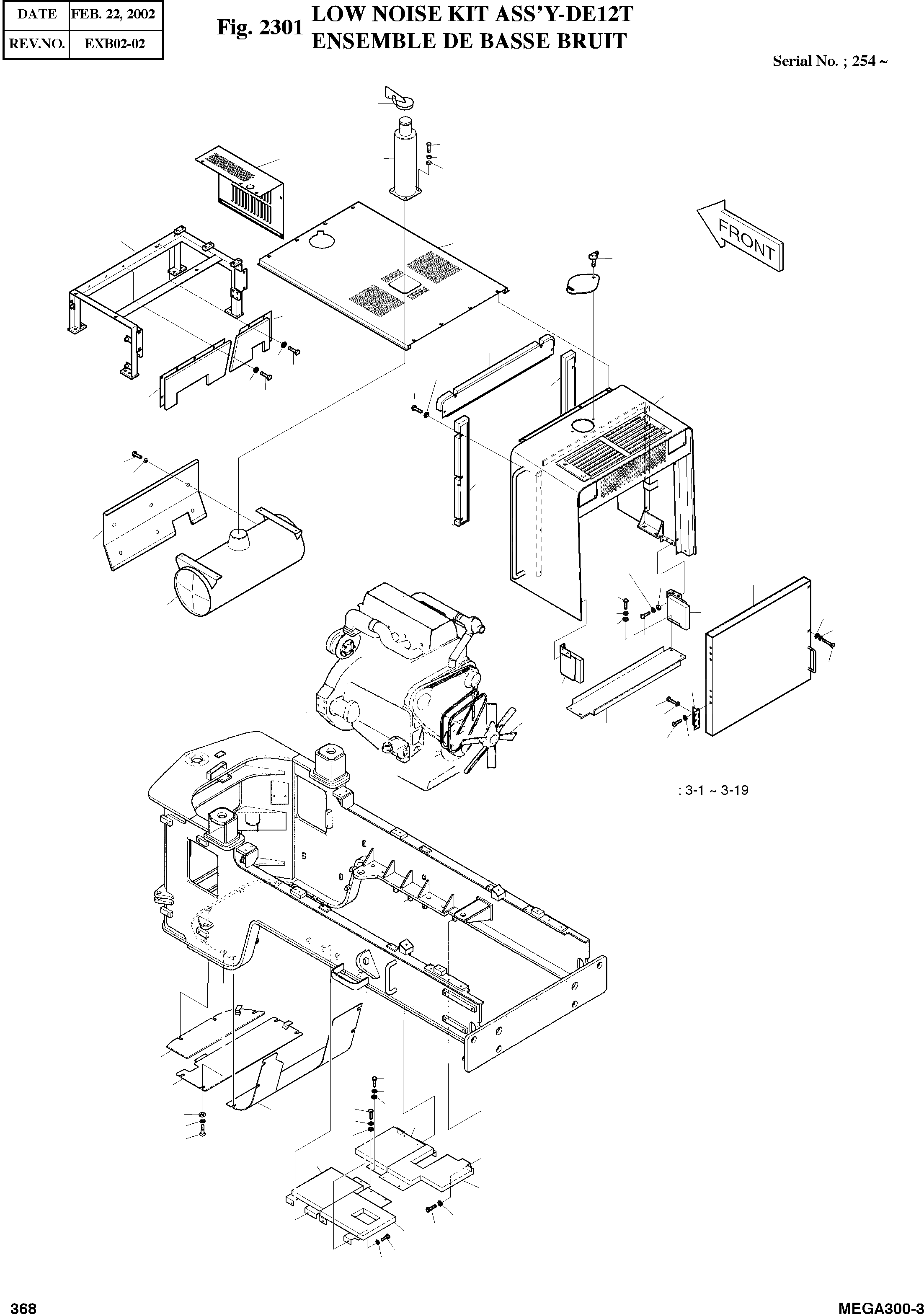

Запчасти Doosan Daewoo LOW NOISE KIT ASSY-DE12T FRONT PARTS

-

4627-1705

LOW NOISE KIT ASS'Y

SERIAL: 254

-2шт.

1

4920-9048

ENGINE COOLING FAN

desc: VENTILATEUR

1шт.

2

4203-1718

MUFFLER;2nd

desc: SILENCIEUX

1шт.

3

4142-1145C

RADIATOR GUARD SUB ASS'Y

SERIAL: 254-339

1шт.

3

4142-1145E

RADIATOR GUARD SUB ASS'Y

SERIAL: 340

1шт.

3-1

4142-1144A

GUARD;RADIATOR

SERIAL: 254-339

1шт.

3-1

4142-1144B

GUARD;RADIATOR

SERIAL: 340

1шт.

3-2

4622-1478

DOOR;GUARD

desc: . PORTE

1шт.

3-3

4197-2107

BRACKET(L.H.)

desc: . SUPPORT

1шт.

3-4

4197-2108

BRACKET(R.H.)

desc: . SUPPORT

1шт.

3-5

4197-2097A

BRACKET

desc: . SUPPORT

1шт.

3-6

2171-1031

HINGE

desc: . PAUMELLE

2шт.

3-7

4621-2347

COVER;RADIATOR FILLER

desc: . COUVERCLE

1шт.

3-8

2120-9006

BOLT;WING

desc: . BOULON A AILES

2шт.

3-9

S0511953

BOLTM10X1.5X22

desc: . BOULON A 6 PANS

6шт.

3-10

S5102603

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE M10

18шт.

3-11

S5010313

WASHER;PLAIN M6

desc: . RONDELLE

10шт.

3-12

S3456973

SCREW M6X1.0X16

desc: . VIS

10шт.

3-13

S5102303

WASHER;SPRING M6

desc: . RONDELLE ELASTIQUE M6

10шт.

3-14

S5010613

WASHER;PLAIN M10

desc: . RONDELLE

2шт.

3-15

S0559153

BOLT M10X1.5X80

desc: . BOULON A 6 PANS

2шт.

3-16

4621-3233A

COVER

desc: . COUVERCLE

1шт.

3-17

4621-3236A

COVER(L.H.)

desc: . COUVERCLE

1шт.

3-18

4621-3235A

COVER(R.H.)

desc: . COUVERCLE

1шт.

3-19

S0511653

BOLT M10X1.5X16

desc: . BOULON A 6 PANS

10шт.

4

2114-1058D63

WASHER

desc: RONDELLE

3шт.

5

4116-1577

PLATE;INSULATION

desc: PLAQUE

1шт.

6

4627-1918

COVER;BONNET

desc: COUVERCLE

1шт.

7

4627-1187B

COVER;CONDENSOR

desc: COUVERCLE

1шт.

8

4213-1125B

BAFFLE;COVER

desc: PLAQUE

1шт.

9

4213-1126B

BAFFLE;COVER

desc: PLAQUE

1шт.

10

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

6шт.

11

4603-1523A

FRAME;TANK SUPPORT

desc: CHASSIS

1шт.

12

S5010613

WASHER;PLAIN

desc: RONDELLE

6шт.

13

4213-1121B

BAFFLE;COVER

desc: PLAQUE

1шт.

14

4213-1122B

BAFFLE;COVER

desc: PLAQUE

1шт.

15

4213-1123C

BAFFLE;COVER

desc: PLAQUE

1шт.

16

4213-1124B

BAFFLE;COVER

desc: PLAQUE

1шт.

17

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

10шт.

18

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

10шт.

19

S0511953

BOLT M10X1.5X22

desc: BOULON A 6 PANS

9шт.

20

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

13шт.

21

2114-1058D62

WASHER;PLAIN

desc: RONDELLE M10

4шт.

22

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

23

4910-9005

CAP;RAIN

desc: VIBREUR

1шт.

24

4203-1727

MUFFLER;1st

desc: SILENCIEUX

1шт.

25

4627-1186

UNDER COVER;T/M

desc: COUVERCLE

1шт.

26

4627-1185

UNDER COVER;T/M

desc: COUVERCLE

1шт.

27

4627-1184

UNDER COVER;T/M

desc: COUVERCLE

1шт.

28

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS M10X1.5X30

13шт.

29

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

13шт.

30

2114-1058D54

WASHER

desc: RONDELLE PLATE

13шт.
