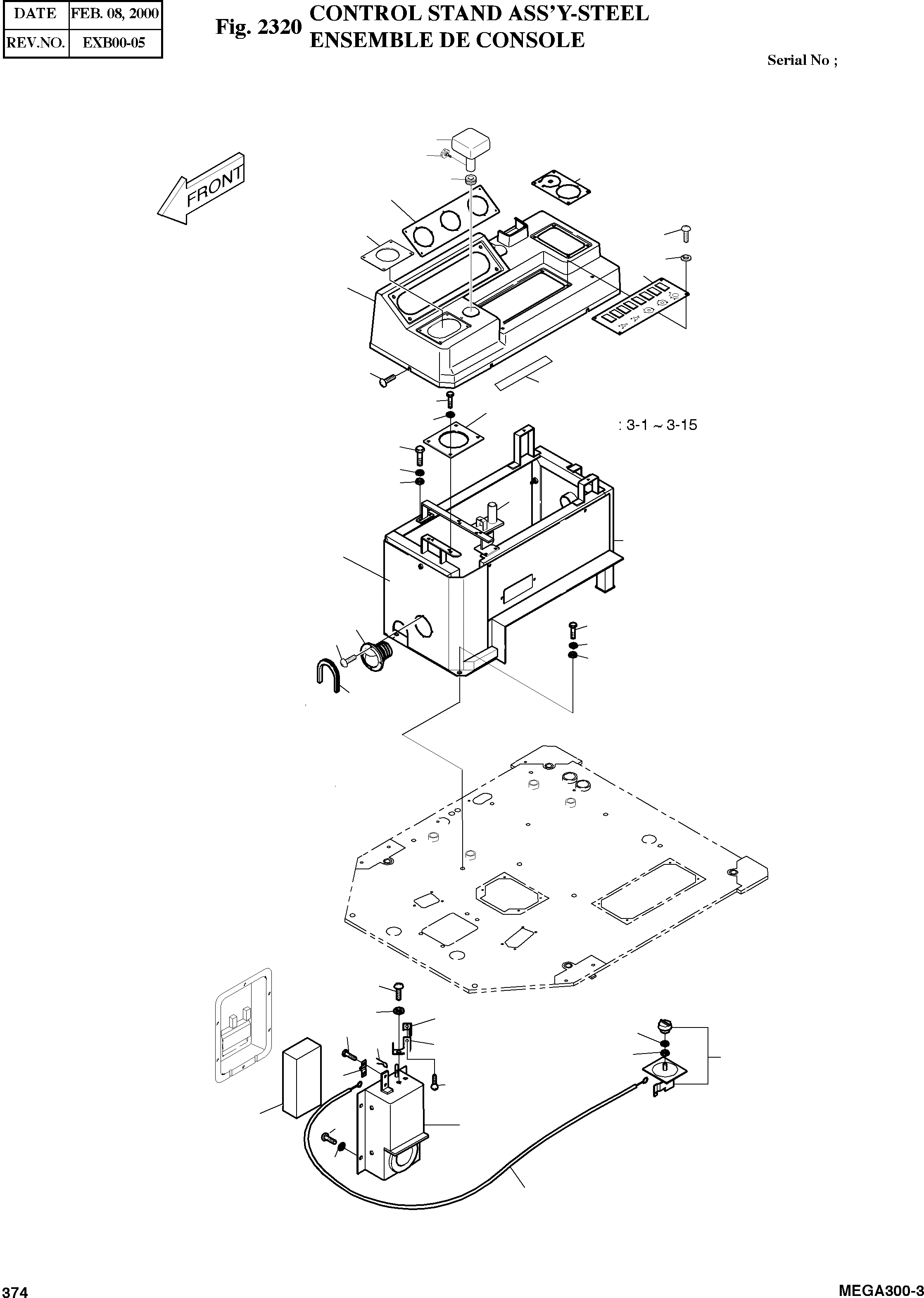

Запчасти Doosan Daewoo CONTROL STAND ASSY-STEEL FRONT PARTS

-

4197-2073F3C

CONTROL STAND ASS'Y

SC: D

-2шт.

-

4197-2073F3E

CONTROL STAND ASS'Y

SERIAL: 228-237

-2шт.

-

4197-2073F3G

CONTROL STAND ASS'Y

SERIAL: 238-330

-2шт.

-

4197-2073F3J

CONTROL STAND ASS'Y

SERIAL: 331

-2шт.

3

4195-3983E

SUPPORT ASS'Y

desc: ENSEMBLE DE SUPPORTS

1шт.

3-1

4195-3981E

SUPPORT

desc: . SUPPORT

1шт.

3-2

4621-2885C

COVER

desc: . COUVERCLE

1шт.

3-7

2161-1744

RUBBER TRIM

desc: . CAOUTCHOUC

1шт.

3-12

4197-1610A

BRACKET

desc: . SUPPORT

1шт.

3-13

S0508953

BOLT M8X1.25X22

desc: . BOULON A 6 PANS

4шт.

3-14

S5102503

WASHER;SPRING

desc: . RONDELLE ELASTIQUE M8

4шт.

3-15

S5010513

WASHER;PLAIN

desc: . RONDELLE M8

4шт.

4

4621-2888E

CONTROL STAND

desc: CONSOLE DE COMMANDE

1шт.

7

4621-2889C

COVER;SWITCH

desc: COUVERCLE

1шт.

8

4621-2890C

COVER

desc: COUVERCLE

1шт.

14

S3458963

SCREW M6X1.0X14

desc: VIS

7шт.

15

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

22шт.

19

S3458593

SCREW M4X0.7X14

desc: VIS

16шт.

20

2114-1058D52

WASHER;PLAIN M6

desc: RONDELLE

8шт.

21

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

4шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

1шт.

29

S0508853

BOLT M6X1.0X20

desc: BOULON A 6 PANS

6шт.

34

4621-2918C

PLATE

desc: PLAQUE

1шт.

45

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

48

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

16шт.

52

4415-9006

NOZZLE;ROUND

SERIAL: 1-237

1шт.

52

4415-9006A

NOZZLE;ROUND

SERIAL: 238

1шт.

53

S3460363

SCREW M3X0.5X10

desc: VIS

4шт.

54

4472-1050B

CASE;FILTER

desc: CARTER

1шт.

54-1

4191-3745

PLATE

desc: . PLAQUE

1шт.

54-2

S3450573

SCREW M4X0.7X10

desc: . VIS

2шт.

54-3

S5100103

WASHER;SPRING

desc: . RONDELLE ELASTIQUE

2шт.

54-4

2130-1011

SPRING

desc: . RESSORT

2шт.

54-5

S3450333

SCREW M3X0.8X8

desc: . VIS

2шт.

55

4549-9107

SWITCH;FRESH AIR

desc: INTERRUPTEUR

1шт.

56

4139-9067

CABLE;CONTROL

desc: CABLE DE COMMANDE

1шт.

59

2471-9040

FILTER;AIR 160X80X40

desc: FILTRE

1шт.

61

4116-1478A

PLATE

desc: PLAQUE

1шт.

62

S5735241

PIN;SPLIT

desc: GOUPILLE FENDUE

1шт.

64

2114-1058D46

WASHER

desc: RONDELLE

1шт.

66

4621-3542

COVER

desc: COUVERCLE

1шт.

68

2190-2049

PLATE;NAME

desc: PLAQUE SIGNALETIQUES

1шт.

69

4197-1786

REST;ARM

desc: BALANCIER

1шт.

70

4132-1138

KNOB M6X1.0

desc: BILLE

1шт.

71

2160-1004D16

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

77

4627-1106

COVER;JOYSTICK

desc: COUVERCLE

1шт.
