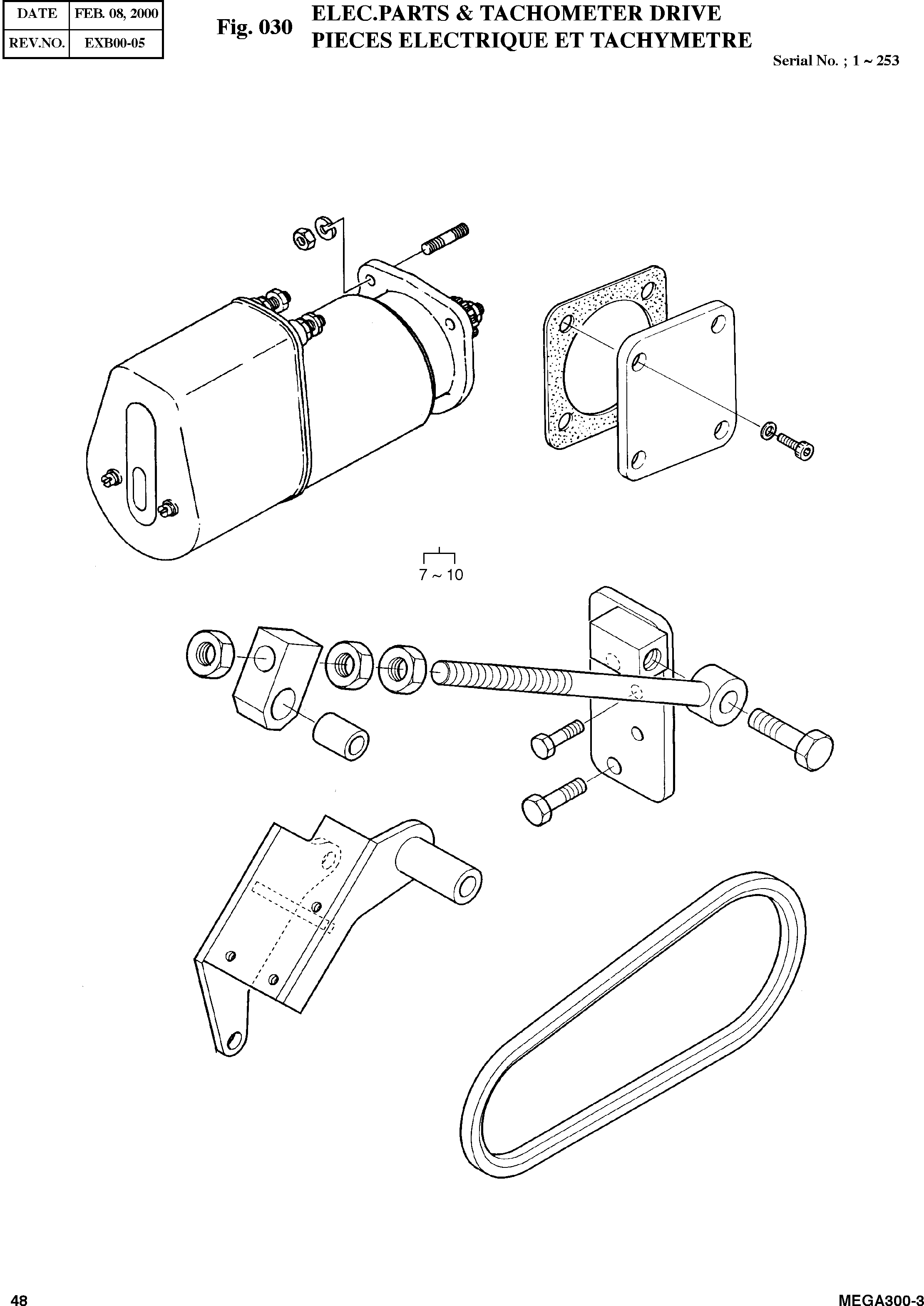

Запчасти Doosan Daewoo ELEC.PARTS & TACHOMETER DRIVE ENGINE PARTS

2

65.96801-0121

V-BELT BX1525L

SERIAL: 1-52

1шт.

2

65.96801-0122

V-BELT BX1550L

SERIAL: 53

1шт.

3

65.19102-5045

BRACKET;GENERATOR MOUNTING

desc: SUPPORT D'ALTERNATEUR

1шт.

4

06.01914-3215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

5

06.01913-3114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

2шт.

6

65.19103-6006

EYE BOLT ASS'Y

desc: BOULONE

1шт.

7

65.90435-0004C

BOLT;ADJUST

desc: . BOULON A 6 PANS

1шт.

8

65.19107-0001

PIECE;GUIDE

desc: . PIECE GUIDE

1шт.

9

65.93020-0055

BUSH

desc: . DOUILLE

1шт.

10

06.11063-9217

NUT;HEX. M14X1.5

desc: . ECROU

3шт.

11

06.01944-3421

BOLT ASS'Y

desc: BOULON A 6 PANS

1шт.

14

65.19102-5046

BRACKET

desc: SUPPORT

1шт.

15

65.26201-7123

STARTER 24VX6.6KW(65.26201-7058)

desc: DEMARREUR

1шт.

16

06.06175-8308

BOLT;STUD

desc: GOUJON

3шт.

17

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE

3шт.

18

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU

3шт.

19

65.27901-0013

GASKET

desc: JOINT

1шт.

20

65.91605-0009

COVER

desc: COUVERCLE ARRIERE

1шт.

21

06.02090-0308

BOLT;SOCKET HEAD M6X16

desc: BOULON A 6 PANS CREUX

4шт.

22

06.56180-0708

RING;SEAL A6.5X11

desc: BAGUE D'ETANCHEITE

4шт.
