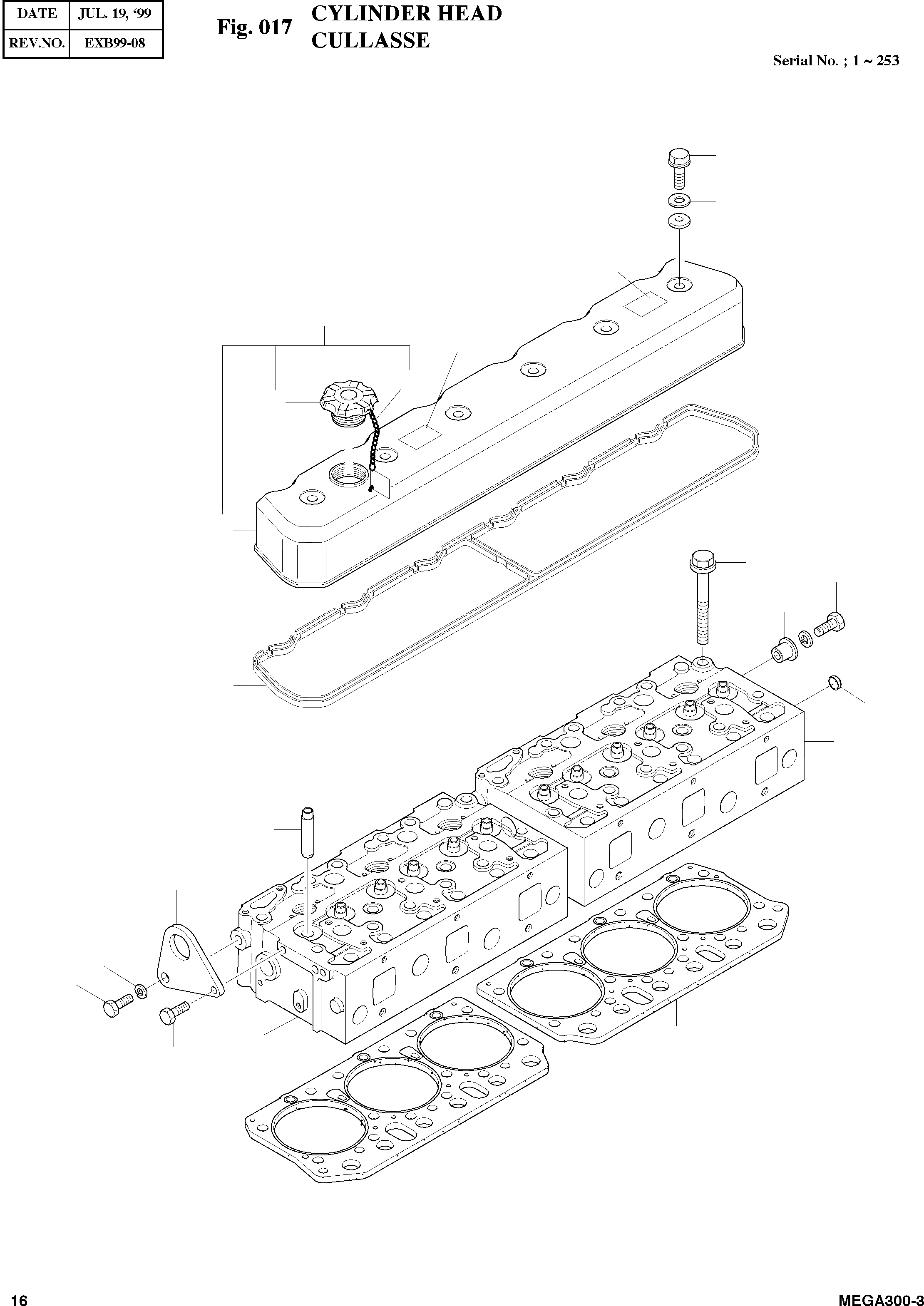

Запчасти Doosan Daewoo CYLINDER HEAD ENGINE PARTS

1

65.03101-6496W

CYLINDER HEAD ASS'Y(FRONT)

desc: ENSEMBLE CULASSE

1шт.

1

65.03101-0296U

HEAD;CYLINDER(FRONT)

SC: D

1шт.

1

65.90302-0042

PLUG;CORE Ґх32

SC: D

2шт.

1

65.90302-0041

PLUG;CORE Ґх28

SC: D

6шт.

1

65.90302-0048

PLUG;CORE Ґх25

SC: D

3шт.

1

65.90302-0049

PLUG;CORE Ґх22

SC: D

3шт.

2

65.91001-0013

SEAL;AV

SC: D

2шт.

3

65.03201-1008

GUIDE;VALVE

desc: GUIDE-SOUPAPE

12шт.

3

65.03203-1042

RING;VALVE SEAT(EXHAUST)

desc: BAGUE DE SIEGE DE SOUPAPE(ECHAPPEMENT)

6шт.

3

65.03203-1041

RING;VALVE SEAT(INTAKE)

desc: BAGUE DE SIEGE DE SOUPAPE(ADMISSION)

6шт.

4

65.03101-6497W

CYLINDER HEAD ASS'Y(REAR)

desc: ENSEMBLE CULASSE

1шт.

4

65.03101-0297U

HEAD;CYLINDER(REAR)

SC: D

1шт.

4

65.90302-0042

PLUG;CORE Ґх32

SC: D

2шт.

4

65.90302-0041

PLUG;CORE Ґх28

SC: D

6шт.

4

65.90302-0048

PLUG;CORE Ґх25

SC: D

3шт.

4

65.90302-0049

PLUG;CORE Ґх22

SC: D

3шт.

5

65.90020-0034A

BOLT;CYLINDER HEAD

desc: VIS DE CULASSE

28шт.

6-1

65.03901-0056A

GASKET;CYLINDER HEAD(FRONT)

desc: JOINT DE COUVERCLE

1шт.

6-2

65.03901-0057A

GASKET;CYLINDER HEAD(REAR)

desc: JOINT

1шт.

7

65.41520-0002

BRACKET;HANGER(FRONT)

desc: SUPPORT

1шт.

8

06.01494-4408

BOLT;HEX. M14X1.5X45

desc: BOULON A 6 PANS

1шт.

9

06.16731-2110

WASHER;SPRING A14X30

desc: RONDELLE ELASTIQUE

2шт.

10

06.01734-4411

BOLT;HEX. M14X1.5X30

desc: BOULON A 6 PANS

1шт.

12

06.01914-3215

BOLT M10X1.5X25

desc: BOULON A 6 PANS

1шт.

13

65.91701-0275

SPACER

desc: JOINT DE COUVRE-CULASSE

1шт.

14

65.03905-0018

GASKET

desc: JOINT

1шт.

15-1

65.03401-6049

COVER;CYLINDER HEAD ASS'Y

SC: D

1шт.

15

65.03401-0034

COVER;CYLINDER HEAD

desc: . COUVRE-CULASSE

1шт.

16

65.92911-5001

CHAIN ASS'Y

desc: . CHAINE

1шт.

17

65.01810-0001

CAP;OIL FILLER

desc: . BOUCHON

1шт.

18

65.03905-0017A

PACKING

desc: RONDELLE D'ETANCHEITE

6шт.

19

65.90701-0052

WASHER

desc: VIS 6 PANS

6шт.

20

65.90020-0012

BOLT;HEX

desc: BOULON A 6 PANS

6шт.

21

65.97871-0247

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

22

65.97801-0036

PLATE;CAUTION

desc: PLAQUE D'AVERTISSEMENT

1шт.
