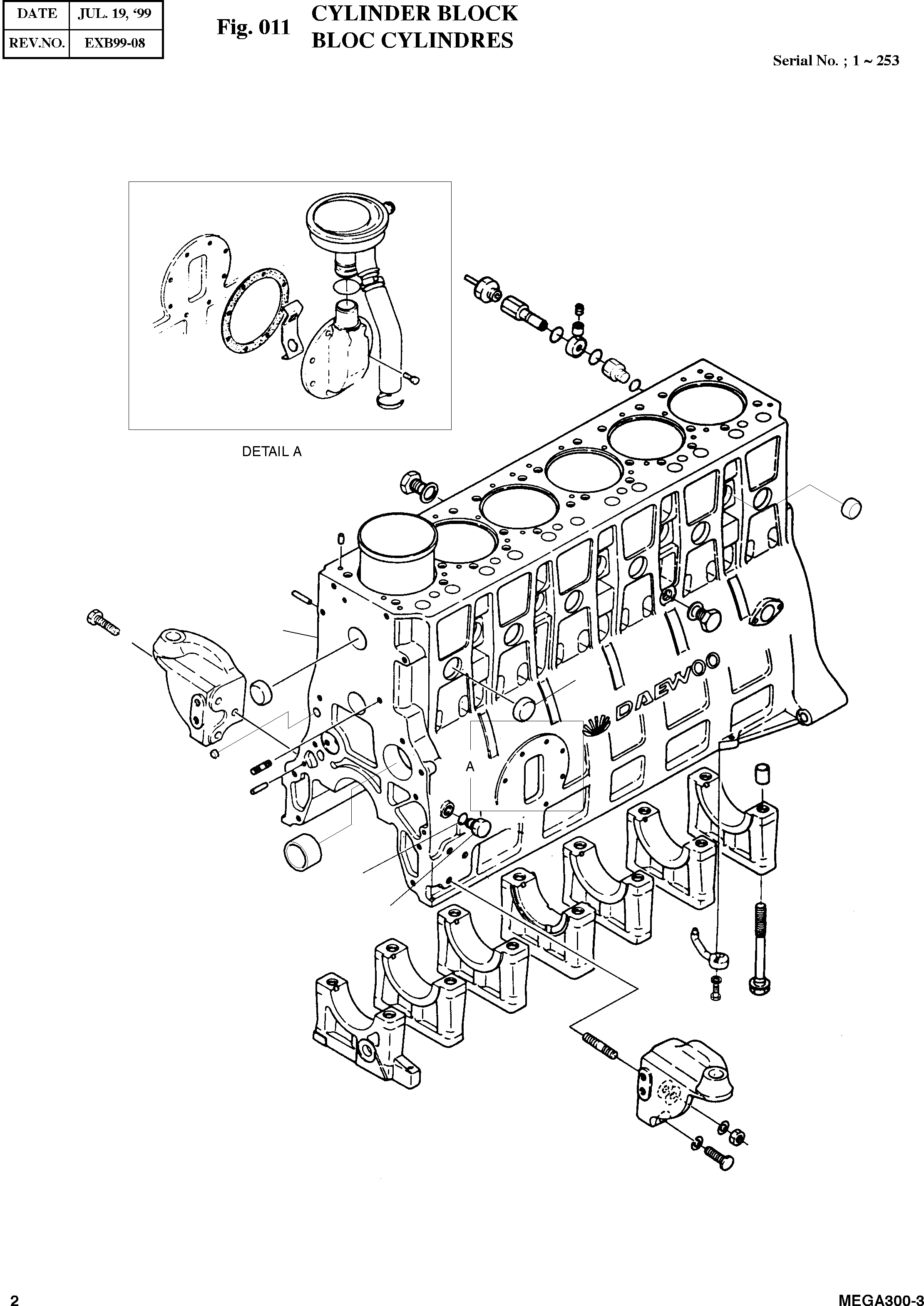

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

-

65.01101-6067

CYLINDER BLOCK ASS'Y

desc: ENSEMBLE BLOC-CYLINDRES

1шт.

1

65.01101-0048

BLOCK;CYLINDER

desc: . BLOC-CYLINDERS

1шт.

2

65.04410-0016

BUSH;CAM SHAFT

desc: . DOUILLE

4шт.

2-1

65.91606-0041

PLUG;CORE HOLE

desc: . BOUCHON

2шт.

2-2

65.90302-0048

PLUG;CORE Ґх25

desc: . BOUCHON DE DESSABLAGE 25

6шт.

3

65.01105-1157F

CAP;BEARING(7)

SC: D

1шт.

4

65.01105-1158E

CAP;BEARING(3.5)

SC: D

2шт.

4-1

65.01105-1161

CAP;BEARING(1.2.6)

SC: D

3шт.

5

65.01105-1159E

CAP;BEARING(4)

SC: D

1шт.

6

65.91710-0035

RING;LOCATING

desc: . BAGUE DE CENTRAGE

14шт.

7

65.90020-0036B

BOLT;BEARING CAP

desc: . BOULON A 6 PANS

14шт.

8

06.15091-0326

PLUG;CORE HOLE

desc: . BOUCHON

15шт.

9

65.90201-0057

BOLT;STUD. TIMING GEAR CASE

desc: GOUJON

1шт.

10

65.01201-0051

LINER;CYLINDER

desc: CHEMISE DE CYLINDRE

6шт.

11

06.22022-0907

PIN;DOWEL 6M6X12

desc: GOUPILLE D'AJUSTAGE

4шт.

12

65.90320-0022

SCREW;PLUG

desc: BOUCHON A VIS

1шт.

13

65.98150-0002

ADAPTER

desc: RACCORD

1шт.

15

06.22022-1009

PIN;DOWEL 8M6X14

desc: GOUPILLE D'AJUSTAGE

2шт.

16

06.56190-0718

RING;SEAL A22X27

desc: BAGUE D'ETANCHEITE

2шт.

17

65.90310-0136

SCREW;PLUG M22X1.5

desc: BOUCHON A VIS

2шт.

18

06.56190-0708

RING;SEAL A16X22

desc: BAGUE D'ETANCHEITE

1шт.

19

65.90310-0137

SCREW;PLUG M16X1.5

desc: BOUCHON FILETE

1шт.

20

06.22022-1112

PIN;DOWEL 10M6X20

desc: GOUPILLE D'AJUSTAGE

2шт.

21

65.98130-0076

ADAPTER

desc: RACCORD

1шт.

22

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

3шт.

23

65.27441-7007

SWITCH;OIL PRESSURE

desc: CONTACTEUR PRESSION D'HUILE

1шт.

24

65.01908-0005A

GASKET;BREATHER CASE

desc: JOINT

1шт.

25

65.01803-0006

BAFFLE;BREATHER

desc: DEFLECTEUR

1шт.

26

65.01801-0002

CASE;BREATHER

desc: CARTER

1шт.

29

06.01923-3113

BOLT;HEX. M8X20

desc: BOULON A 6 PANS

8шт.

30

65.96501-0032

O-RING 36.09X3.53

desc: . JOINT TORIQUE

1шт.

31

65.01801-5023

BREATHER PIPE ASS'Y

desc: VANNE PVC

1шт.

31

65.01801-6002

BREATHER PIPE ASS'Y

desc: VANNE PVC

1шт.

32

06.67020-0106

CLAMP;HOSE

desc: . COLLIER

1шт.

33

65.96301-0189

HOSE;RUBBER

desc: . FLEXIBLE CAOUTCHOUC

1шт.

34

65.97401-0142

CLIP;HOSE

desc: ATTACHE

1шт.

41

06.08092-2406

SCREW;PLUG M18X1.5

desc: BOUCHON A VIS

1шт.

42

06.56190-0713

RING;SEAL A18X22

desc: BAGUE D'ETANCHEITE

1шт.

43

65.01601-6002

OIL SPRAY ROZZLE

desc: INJECTEUR D'HUILE

6шт.

44

06.16044-0208

WASHER.SP B6

desc: RONDELLE PLATE

6шт.

45

65.90001-0126

BOLT.HEX

desc: BOULON A 6 PANS

12шт.

46

65.98130-0083

ADAPTER

desc: RACCORD

1шт.

47

65.41530-0131

BRACKET;MOUNTING

desc: SUPPORT

1шт.

48

65.41530-0130

BRACKET;MOUNTING

desc: SUPPORT

1шт.

49

65.90201-0063

BOLT;STUD

desc: GOUJON

2шт.

50

06.16731-2110

WASHER;SPRING A14

desc: RONDELLE ELASTIQUE

10шт.

51

06.11063-9217

NUT;HEX. M14X1.5

desc: ECROU

2шт.

52

06.01494-9410

BOLT;HEX. M14X1.5X55

desc: BOULON A 6 PANS

4шт.

52

06.01494-4409

BOLT;HEX. M14X1.5X50

desc: BOULON A 6 PANS

4шт.
