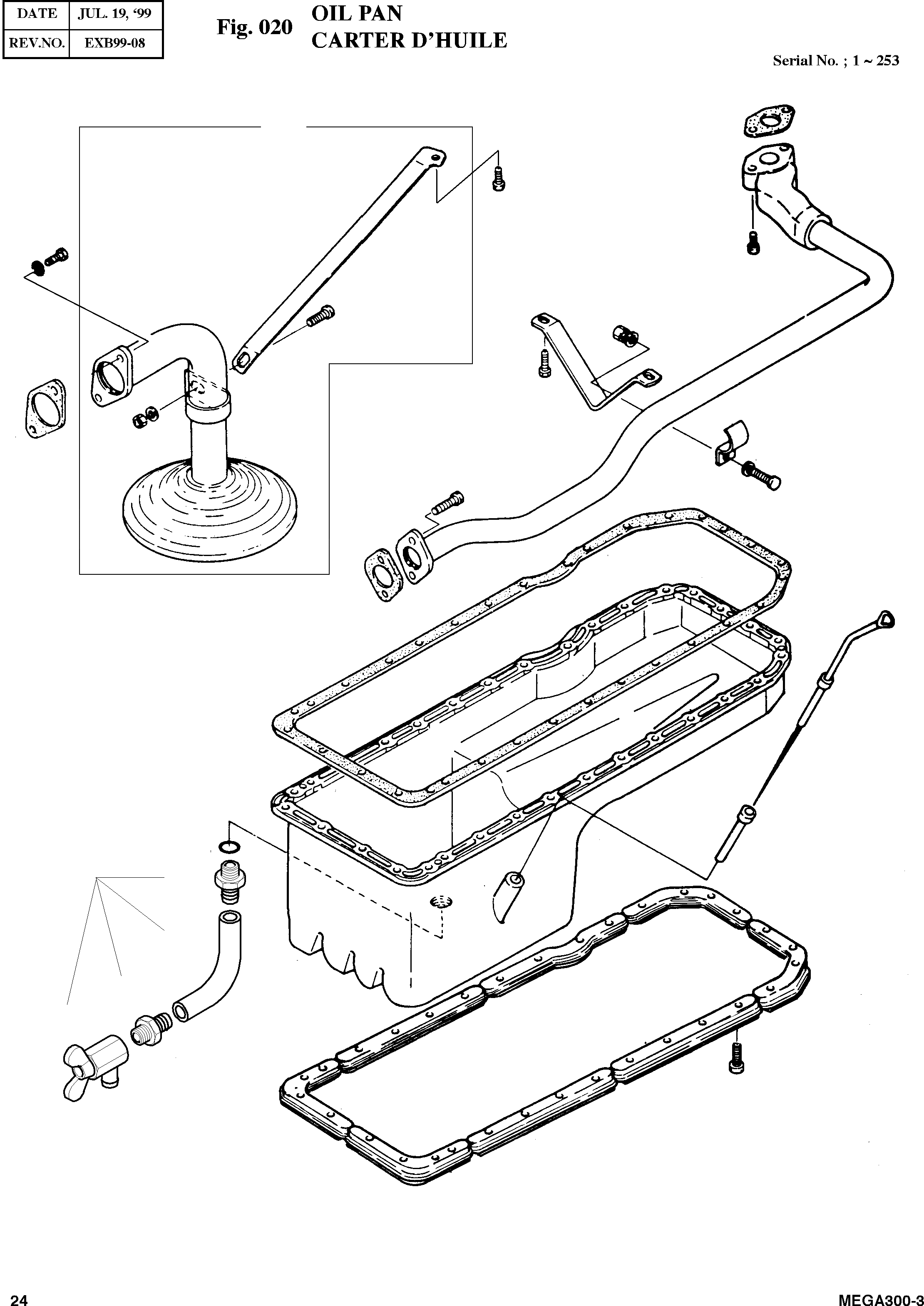

Запчасти Doosan Daewoo OIL PAN ENGINE PARTS

1

65.05801-5184

PAN;OIL

desc: CARTER MOTEUR

1шт.

2

65.90310-6005

DRAIN PLUG ASS'Y

SC: D

1шт.

2-1

65.98131-0066

ADAPTER

REP_PNO: 2181-1917D37

1шт.

2-2

65.96340-0043

HOSE;DRAIN

REP_PNO: 2184-1036D232

1шт.

2-3

65.98131-5005

ADAPTER

REP_PNO: 65.98131-5005

1шт.

2-4

65.90310-5012

COCK;DRAIN

REP_PNO: 65.90310-5012

1шт.

3

06.56190-0732

RING;SEAL A30X36

desc: CONTACT DE NIVEAU D'HUILE

1шт.

4

65.05904-0095

GASKET;OIL PAN

desc: JOINT DE CARTER D'HUILE

1шт.

5

65.90001-0136

BOLT;HEX. M8X45

desc: BOULON A 6 PANS

32шт.

7

65.05809-0052

WASHER

desc: RONDELLE PLATE

1шт.

8

65.05809-0053

WASHER

desc: RONDELLE PLATE

1шт.

9

65.05809-0056

WASHER

desc: RONDELLE PLATE

1шт.

10

65.05809-0057

WASHER

desc: RONDELLE PLATE

1шт.

10-1

65.05809-0058

WASHER

desc: RONDELLE PLATE

1шт.

10-2

65.05809-0059

WASHER

desc: RONDELLE PLATE

1шт.

11

65.05806-0018

TUBE;OIL LEVER GAUGE

desc: TUBE DE GUIDAGE

1шт.

12

65.05805-5119

GAUGE;OIL LEVEL

desc: JAUGE D'HUILE

1шт.

12-1

65.05701-6042

OIL SUCTION PIPE ASS'Y

SC: D

1шт.

13

65.05701-5202

OIL PIPE ASS'Y

desc: ENSEMBLE TUBE D'ASPIRATION D'HUILE

1шт.

14

06.01283-7114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

2шт.

15

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

2шт.

16

65.05740-0013

BRACKET

desc: SUPPORT

1шт.

17

06.01283-7113

BOLT;HEX. M8X20

desc: BOULON A 6 PANS

1шт.

18

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

1шт.

19

65.90510-0012

NUT;LOCK M8

desc: ECROU DE BLOCAGE

1шт.

20

06.01923-3111

BOLT;HEX. M8X16

desc: BOULON A 6 PANS

1шт.

22

65.05701-5253

OIL PIPE ASS'Y(O/P-O/C)

desc: ENSEMBLE TUBE D'HUILE

1шт.

23

06.01923-3113

BOLT;HEX. M8X20

desc: BOULON A 6 PANS

2шт.

26

06.05740-0014

BRACKET

desc: SUPPORT

1шт.

27

65.97401-0131

CLAMP

desc: COLLIER

1шт.

28

06.01283-7115

BOLT;HEX. M8X25

desc: BOULON A 6 PANS

1шт.

29

06.15010-2311

WASHER 8.4

desc: RONDELLE PLATE

2шт.

30

65.90510-0012

NUT;LOCK M8

desc: ECROU DE BLOCAGE

1шт.

31

65.90001-6005

BOLT;SOCKET HEAD

desc: BOULON A 6 PANS CREUX

2шт.

33

06.01923-3111

BOLT;HEX. M8X16

desc: BOULON A 6 PANS

2шт.

39

65.96601-0019

GASKET

desc: JOINT(TUBE D'ASPIRATION D'HUILE)

1шт.

41

65.96601-0022

GASKET

desc: JOINT

2шт.
