Запчасти Doosan Daewoo REMOTE PRESSURE CHECK PIPING BODY PARTS

-

4400-1765

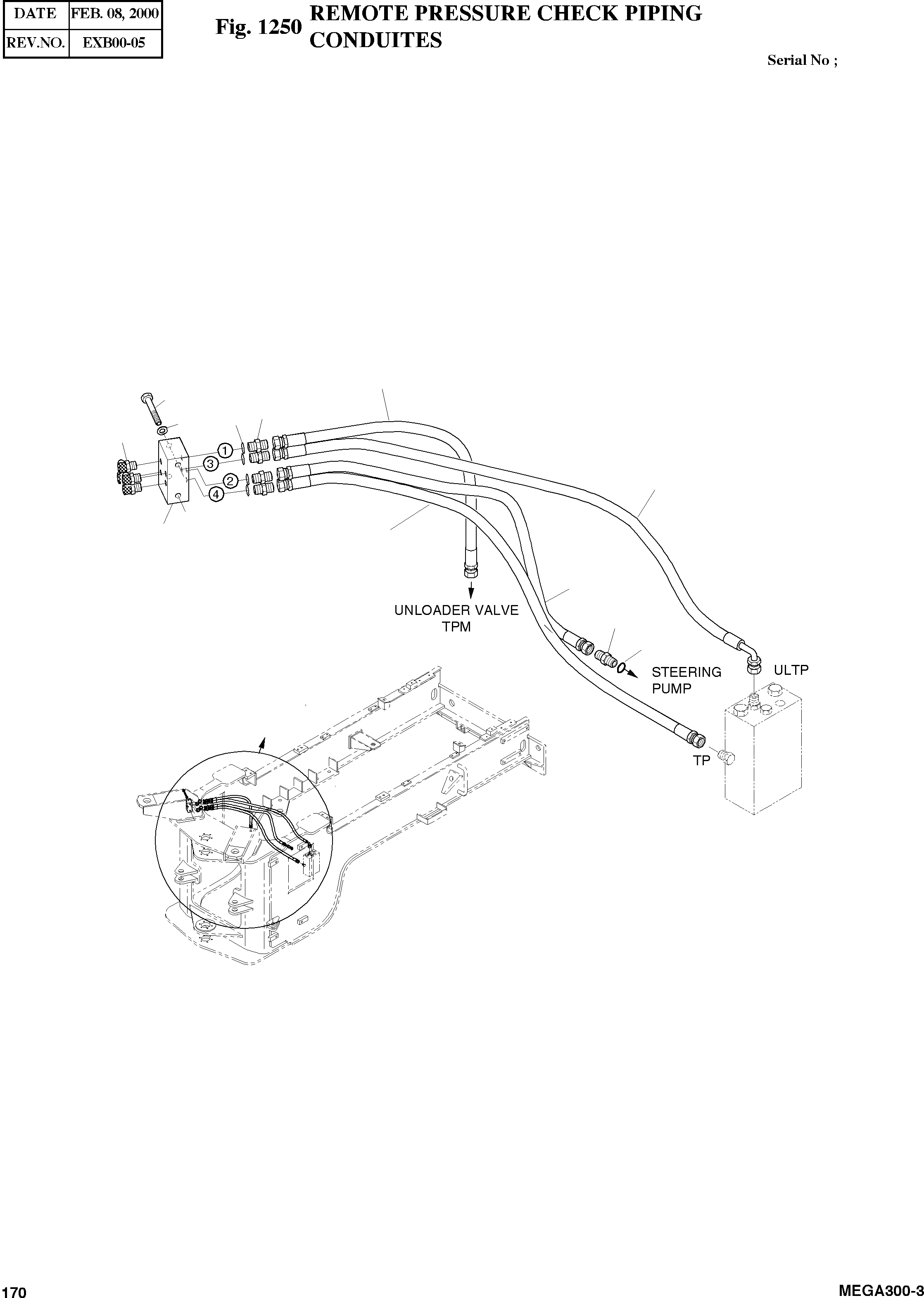

REMOTE PRESSURED CHECK PIPING ASS'Y

SC: D

-2шт.

1

4423-1451

BLOCK

desc: BLOC

1шт.

2

S0559153

BOLT M10X1.5X80

desc: BOULON A 6 PANS

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

4

2184-1026D263

HOSE ST-ST. L600

desc: TUYAU FLEXIBLE

1шт.

5

2120-9008

SCREW;COUPLING

SERIAL: 1-302

4шт.

5

120-00002

SCREW;COUPLING

SERIAL: 303

4шт.

6

2184-1036D59

HOSE ST-90ўЄ. L1200

desc: TUYAU FLEXIBLE

1шт.

7

2184-1026D38

HOSE ST-ST. L1100

SERIAL: 1-102

2шт.

7

2184-1026D3

HOSE ST-ST. L1300

SERIAL: 103

2шт.

8

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD

4шт.

9

2184-1026D139

HOSE ST-ST. L900

desc: TUYAU FLEXIBLE

1шт.

10

2181-2333

ADAPTER PF1/8-PF1/4

desc: RACCORD

1шт.

11

S8000081

O-RING PF1/8

desc: JOINT TORIQUE

1шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

4шт.
