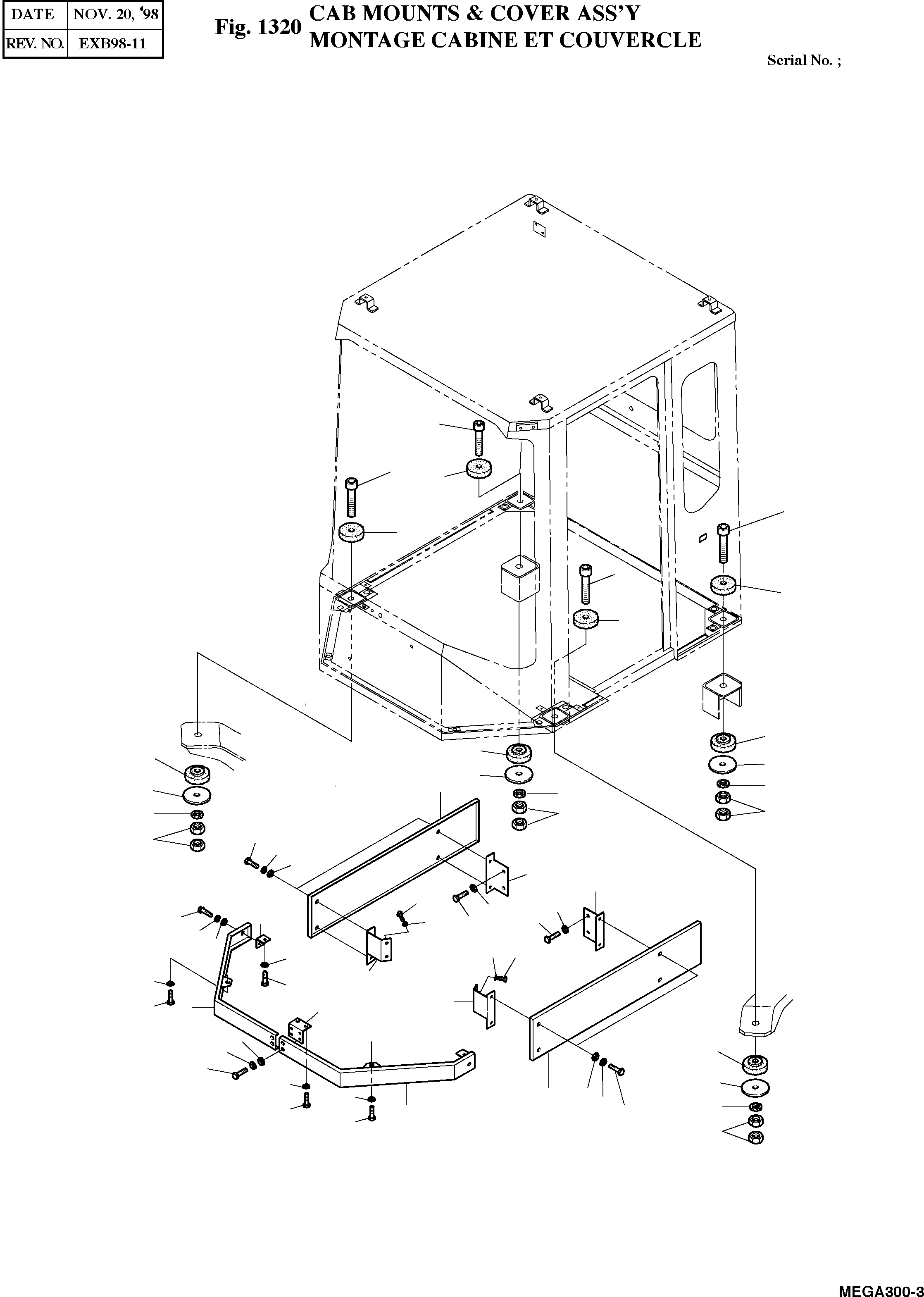

Запчасти Doosan Daewoo CAB MOUNTS & COVER ASSY BODY PARTS

-

4622-4029

CAB MOUNTS & COVER ASS'Y

SC: D

-2шт.

1

S2235461

BOLT;SOCKET M24X3.0X150

desc: BOULON A 6 PANS CREUX

4шт.

1

S2235661

BOLT;SOCKET M24X3.0X170

desc: BOULON A 6 PANS CREUX

4шт.

2

2161-9413

MOUNT;CABIN

desc: CAOUTCHOUC

8шт.

3

4114-4156

WASHER;REBOUND

SERIAL: 1-172

4шт.

3

4114-4156A

WASHER;REBOUND

SERIAL: 173

4шт.

4

S5011313

WASHER;PLAIN M24

desc: RONDELLE PLATE

4шт.

5

S4013343

NUT M24X3.0

desc: ECROU

8шт.

6

4621-4465A

COVER

desc: COUVERCLE

1шт.

7

4621-4466A

COVER

desc: COUVERCLE

1шт.

8

4621-4467A

COVER

desc: COUVERCLE

1шт.

9

4621-4468A

COVER

desc: COUVERCLE

1шт.

10

4195-4845A

BRACKET

desc: SUPPORT

2шт.

11

4195-4846A

BRACKET

desc: SUPPORT

1шт.

12

S0511953

BOLT M10X1.5X22

desc: BOULON A 6 PANS

24шт.

13

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

14

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

12шт.

15

4197-1084

BRACKET

desc: SUPPORT

1шт.

15

4197-1084A

BRACKET

desc: SUPPORT

1шт.

16

4197-1085

BRACKET

desc: SUPPORT

1шт.

16

4197-1085A

BRACKET

desc: SUPPORT

1шт.

17

4197-1086

BRACKET

desc: SUPPORT

1шт.

17

4197-1086A

BRACKET

desc: SUPPORT

1шт.
