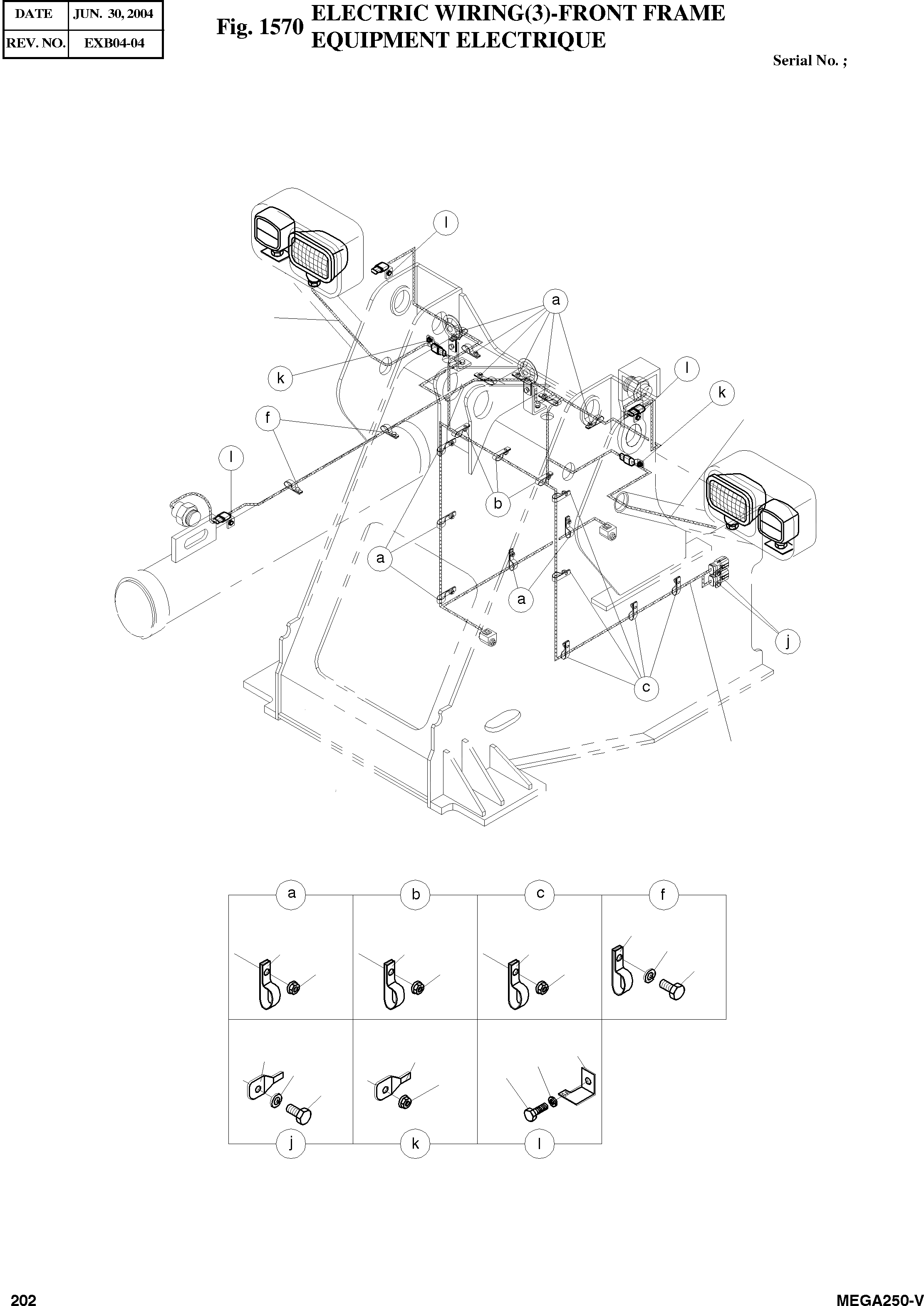

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-FRONT FRAME BODY PARTS

-

500-00065

ELECTRIC PARTS

SC: D

-2шт.

4

530-00132

HARNESS;FRONT FRAME

SERIAL: 1001-1184

1шт.

4

530-00447

HARNESS;FRONT FRAME

SERIAL: 1185

1шт.

5

530-00026A

HARNESS;FRONT LAMP

SERIAL: 1001-1184

2шт.

21

2195-3500

BRACKET;HOUSING

desc: SUPPORT

3шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

3шт.

23

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

3шт.

25

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

27

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

4шт.

28

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

29

2124-1509D1

CLIP D12/M8

desc: ATTACHE

13шт.

30

2124-1509D2

CLIP D18/M8

desc: ATTACHE

3шт.

31

2124-1509D3

CLIP D24/M8

desc: ATTACHE

5шт.

34

2121-1305

NUT M8X1.25

desc: ECROU

21шт.
