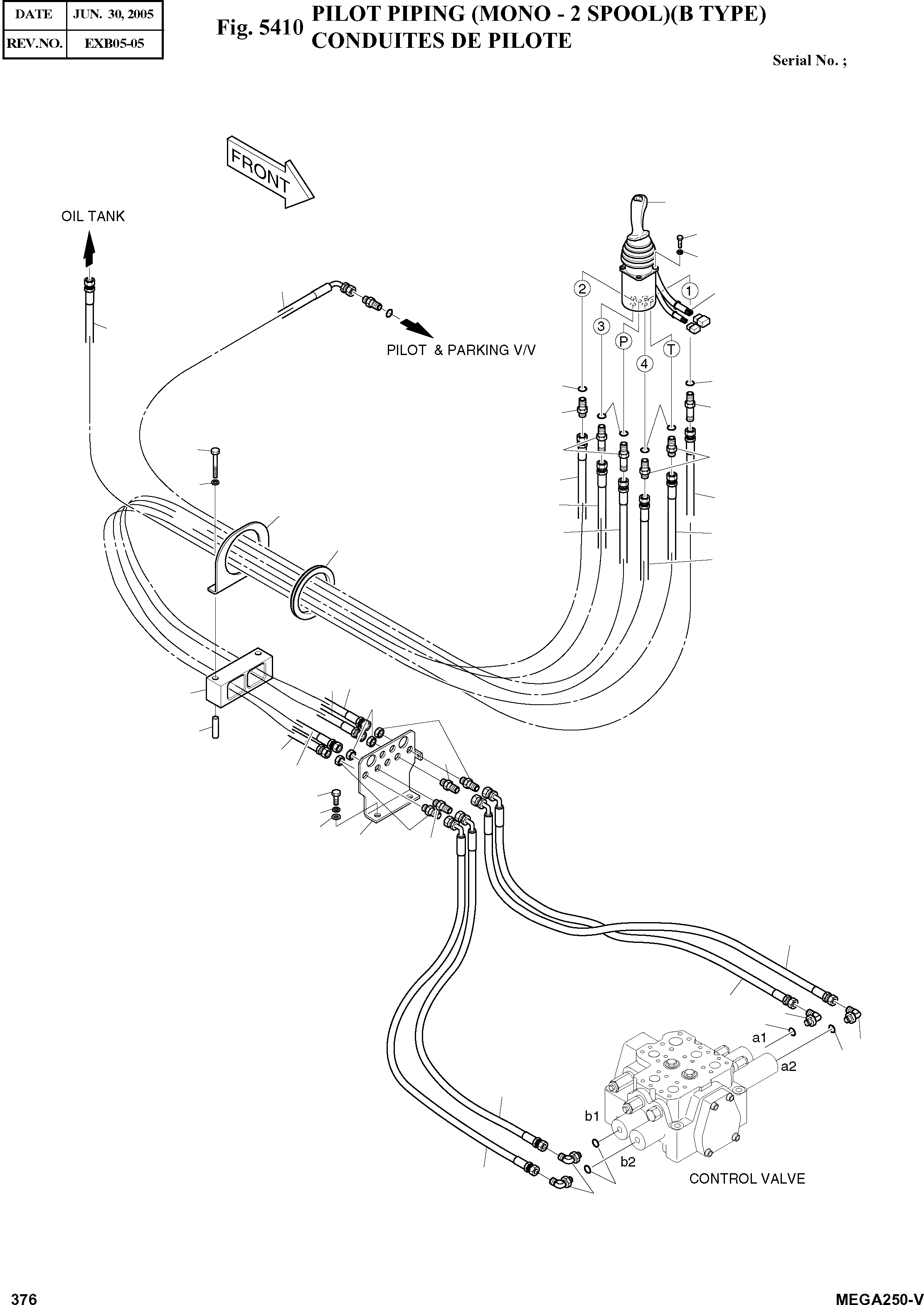

Запчасти Doosan Daewoo PILOT PIPING (MONO - 2 SPOOL)(B TYPE) OPTION PARTS

-

K1010092

PILOT PIPING

SC: D

-2шт.

1

426-00105

VALVE;REMOCON

desc: VANNE PILOTE

1шт.

2

S2204866

BOLT M6X1.0X20

desc: BOULON A 6PANS

4шт.

3

S5110303

WASHER M6

desc: RONDELLE ELASTIQUE

4шт.

4

2181-1917D57

ADAPTER;LONG PF1/4-PF3/8

desc: ADAPTEUR

3шт.

5

2181-1917D55

ADAPTER PF1/4-PF3/8

desc: ADAPTEUR

3шт.

6

S8180221

RING;SEAL D14.2-D19.9

desc: RONDELLE D'ETANCHEITE

6шт.

7

K1004165A

CLAMP

desc: COLLIER

1шт.

8

K1004689

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

9

2160-1004D57

GROMMET

desc: MANCHON CAOUTCHOUC

1шт.

10

195-01072

BRACKET

desc: SUPPORT

1шт.

11

S0557066

BOLT M8X1.25X85

desc: BOULON A 6PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

195-02875B

BRACKET

desc: SUPPORT

1шт.

14

S0515066

BOLT M12X1.75X25

desc: BOULON A 6PANS

2шт.

15

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

16

S5010713

WASHER M12

desc: RONDELLE

2шт.

17

2181-2718

ADAPTER;JOINT

desc: ADAPTEUR

2шт.

18

181-00078D3

ADAPTER;JOINT 2-PF3/8

desc: ADAPTEUR

2шт.

19

121-00010D1

NUT

desc: ECROU

2шт.

20

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

4шт.

22

S8000141

O-RING

desc: JONT TORIQUE

4шт.

24

2184-1026D248

HOSE PF3/8-2500L

desc: TUYAU FLEXIBLE

1шт.

25

DS2053707

HOSE PF3/8-1720L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1026D378

HOSE PF3/8-1750L

desc: TUYAU FLEXIBLE

3шт.

27

2184-1026D160

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1036D248

HOSE PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1036D427

HOSE PF3/8-1170L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1036D181

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1036D244

HOSE PF3/8-1130L

desc: TUYAU FLEXIBLE

1шт.

33

K1009197

HARNESS;JOINT

desc: HARNAIS

1шт.
