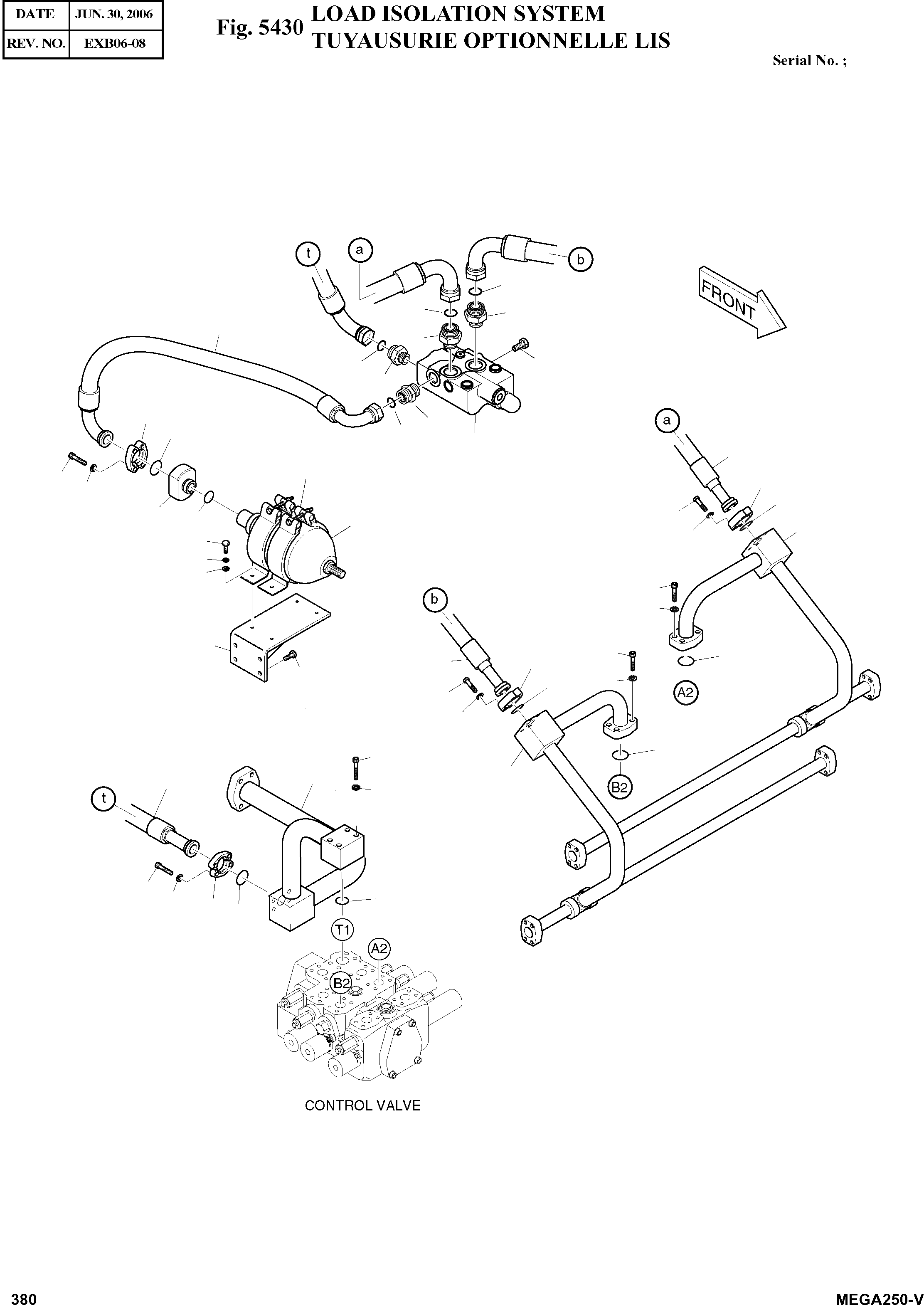

Запчасти Doosan Daewoo LOAD ISOLATION SYSTEM OPTION PARTS

-

K1018466

LOAD ISOLATION SYSTEM

SC: D

-2шт.

1

460-00006A

ACCUMULATOR KIT

desc: RESERVOIR

1шт.

2

K1009189

VALVE;SHOCKLESS

desc: VANNE

1шт.

3

181-00379A

ADAPTER

desc: ADAPTEUR

1шт.

4

S8000381

O-RING

desc: JONT TORIQUE

1шт.

5

K1007221A

PIPE

desc: TUYAU

1шт.

6

K1007222A

PIPE

desc: TUYAU

1шт.

7

K1007223

PIPE;RETURN

desc: TUYAU

1шт.

8

DS2025075

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

DS2025058

HOSE

desc: TUYAU FLEXIBLE

1шт.

10

2180-1026D19

O-RING

desc: JONT TORIQUE

6шт.

11

2181-9078

FLANGE

desc: BRIDE

8шт.

12

S2212266

BOLT;SOCKET

desc: BOULON A 6PANS

16шт.

13

S2212366

BOLT;SOCKET

desc: BOULON A 6PANS

8шт.

14

S5110603

WASHER

desc: RONDELLE

24шт.

15

2180-1026D23

O-RING

desc: JONT TORIQUE

1шт.

16

S2216166

BOLT;SOCKET

desc: BOULON A 6PANS

4шт.

17

DS2021134

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

DS2025065

HOSE

desc: TUYAU FLEXIBLE

1шт.

19

195-01623

BRACKET

desc: SUPPORT

1шт.

20

2120-2196D4

BOLT;SET

desc: BOULON A 6PANS

4шт.

21

S0508866

BOLT

desc: BOULON A 6PANS

4шт.

22

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

23

2114-1058D29

WASHER

desc: RONDELLE

4шт.

24

124-00275A

CLAMP;ACCUMULATOR

desc: COLLIER

2шт.

25

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

26

K1010676

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

27

S8030161

O-RING

desc: JONT TORIQUE

4шт.

28

DS0025036

BOLT;SET

desc: BOULON A 6PANS

2шт.
