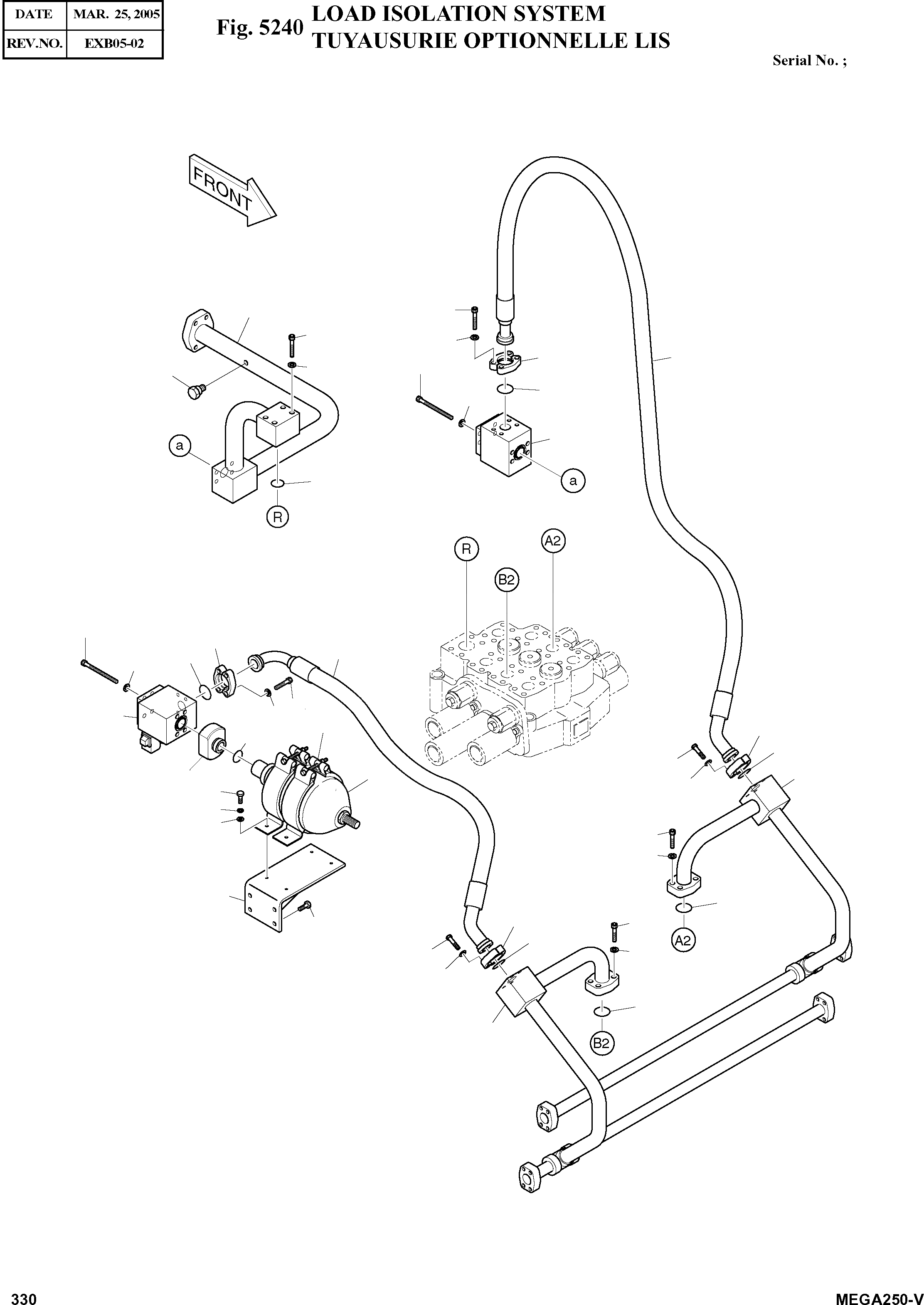

Запчасти Doosan Daewoo LOAD ISOLATION SYSTEM OPTION PARTS

-

400-00659

LIS PIPING

SC: D

-2шт.

1

460-00006A

ACCUMULATOR KIT

desc: RESERVOIR

1шт.

2

4420-9446C

VALVE;SOLENOID

desc: SOUPAPE A SOLENOIDE

2шт.

3

181-00379A

ADAPTER

desc: ADAPTEUR

1шт.

4

S8000381

O-RING

desc: JONT TORIQUE

1шт.

5

193-00648

PIPE;R.H

desc: TUYAU

1шт.

6

193-00649A

PIPE;L.H

desc: TUYAU

1шт.

7

193-00647

PIPE;RETURN

desc: TUYAU

1шт.

8

DS2039073

HOSE PF1-780L

desc: TUYAU FLEXIBLE

1шт.

9

DS2043058

HOSE PF1-850L

desc: TUYAU FLEXIBLE

1шт.

10

2180-1026D19

O-RING

desc: JONT TORIQUE

6шт.

11

2181-9078

FLANGE;SPLIT

desc: BRIDE

8шт.

12

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6PANS

16шт.

13

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6PANS

8шт.

14

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

36шт.

15

2180-1026D23

O-RING

desc: JONT TORIQUE

1шт.

16

S2213166

BOLT;SOCKET M10X1.5X75

desc: BOULON A 6PANS

4шт.

17

S2214266

BOLT;SOCKET M10X1.5X130

desc: BOULON A 6PANS

8шт.

18

2181-2047

PLUG

desc: BOUCHON

1шт.

19

195-01623

BRACKET

desc: SUPPORT

1шт.

20

2120-2196D4

BOLT;SET M10X1.5X30

desc: BOULON A 6PANS

4шт.

21

S0508853

BOLT M8X1.25X20

desc: BOULON A 6PANS

4шт.

22

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

23

2114-1058D29

WASHER

desc: RONDELLE

4шт.

24

124-00275A

CLAMP;STRAP

desc: COLLIER

2шт.
