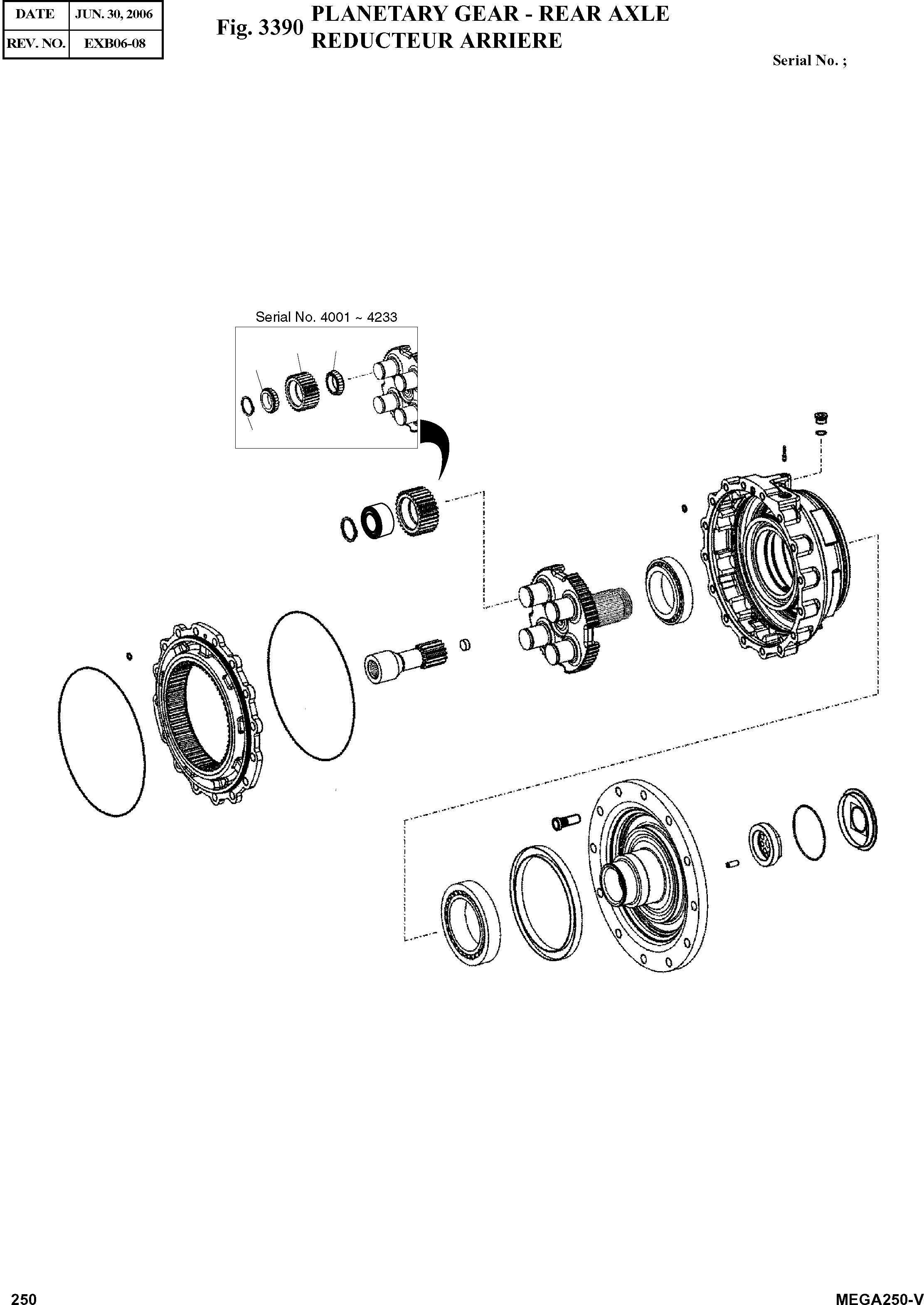

Запчасти Doosan Daewoo PLANETARY GEAR - REAR AXLE HYDRAULIC PARTS

10

K9000768

HOUSING;BRAKE

SERIAL: 4001-4233

2шт.

10

K9002963

HOUSING;BRAKE

SERIAL: 4234

2шт.

20

K9000032

PLUG

desc: BOUCHON

2шт.

30

K9000179

O-RING

desc: JOINT TORIQUE

4шт.

40

K9000769

GEAR;RING

desc: PIGNON

2шт.

50

K9000176

O-RING

desc: JOINT TORIQUE

4шт.

60

K9000240

RING;MULTI SEAL

desc: JOINT

2шт.

70

K9000323

BEARING;TAPPER ROLLER

desc: ROULEMENT A ROULEAUX

2шт.

80

K9000770

BEARING;TAPPER ROLLER

desc: ROULEMENT A ROULEAUX

2шт.

90

K9000771

SHAFT;OUTPUT

SERIAL: 4001-4233

2шт.

90

K9002964

SHAFT;OUTPUT

SERIAL: 4234

2шт.

100

K9000674

NUT;SLOTTED

desc: ECROU

2шт.

110

K9000173

PIN;SLOTTED

desc: GOUPILLE

2шт.

120

K9000286

COVER

desc: COUVERCLE

2шт.

130

2.180-00284

O-RING

desc: JOINT TORIQUE

2шт.

150

K9000772

SHAFT;SUN GEAR

desc: ARBRE

2шт.

160

K9000773

GEAR;PLANET

SERIAL: 4001-4233

8шт.

160

K9002965

GEAR;PLANET

SERIAL: 4234

8шт.

180

K9000774

CARRIER;PLANET

SERIAL: 4001-4233

2шт.

180

K9002966

CARRIER;PLANET

SERIAL: 4234

2шт.

210

K9000277

BOLT;STOP

desc: BOULON

2шт.

250

K9000775

BEARING;TAPPER ROLLER

SERIAL: 4001-4233

8шт.

250

K9002967

BEARING;ROLLER

SERIAL: 4234

8шт.

260

K9000776

BEARING;TAPPER ROLLER

SERIAL: 4001-4233

8шт.

270

K9000777

RING;RETAINING

desc: ANNEAU DE SOUTIEN

8шт.

281

K9000164

PLUG;SCREW

desc: BOUCHON

2шт.

282

1.180-00137

O-RING

desc: JOINT TORIQUE

2шт.

400

K9002864

BOLT;WHEEL

SERIAL: 4234

24шт.
