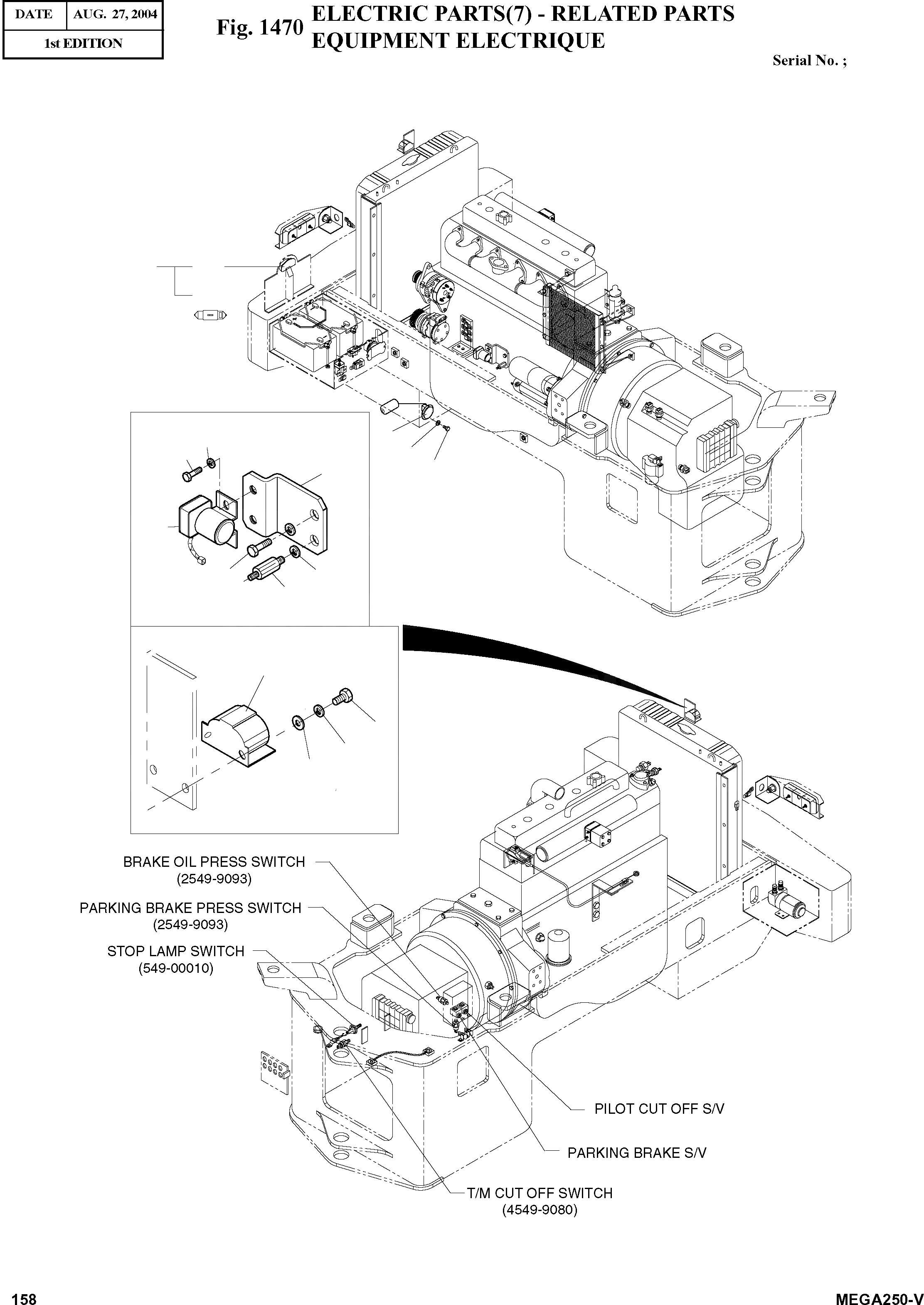

Запчасти Doosan Daewoo ELECTRIC PARTS(7) - RELATED PARTS BODY PARTS

-

500-00179

ELECTRIC PARTS(7)

SC: D

-2шт.

19

544-00007

RELAY;PREHEAT

desc: RELAIS DE PRECHAUFFAGE

1шт.

20

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

21

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

22

195-02193

BRACKET;RELAY

desc: SUPPORT

1шт.

23

2120-2235

BOLT;STUD M10X1.25X15

desc: GOUJON

1шт.

24

S0711853

BOLT M10X1.25X20

desc: BOULON A 6PANS

1шт.

25

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

31

2516-1124

BUZZER;BACK-UP

desc: VIBREUR ARRIERE

1шт.

32

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

2шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

34

S5010513

WASHER;PLAIN M8

desc: RONDELLE

2шт.

40

2534-1139A

LAMP;LICENCE

desc: LAMPE

1шт.

40A

2534-6019

CASE;LAMP

desc: . CARTER

1шт.

40B

2515-1021D5

BULB 24V 5W

desc: . AMPOULE

1шт.

41

547-00019A

SENSOR;FUEL

desc: SENDER

1шт.

42

S0502953

BOLT M5X0.8X12

desc: BOULON A 6 PANS

5шт.

43

S5100203

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE

5шт.
