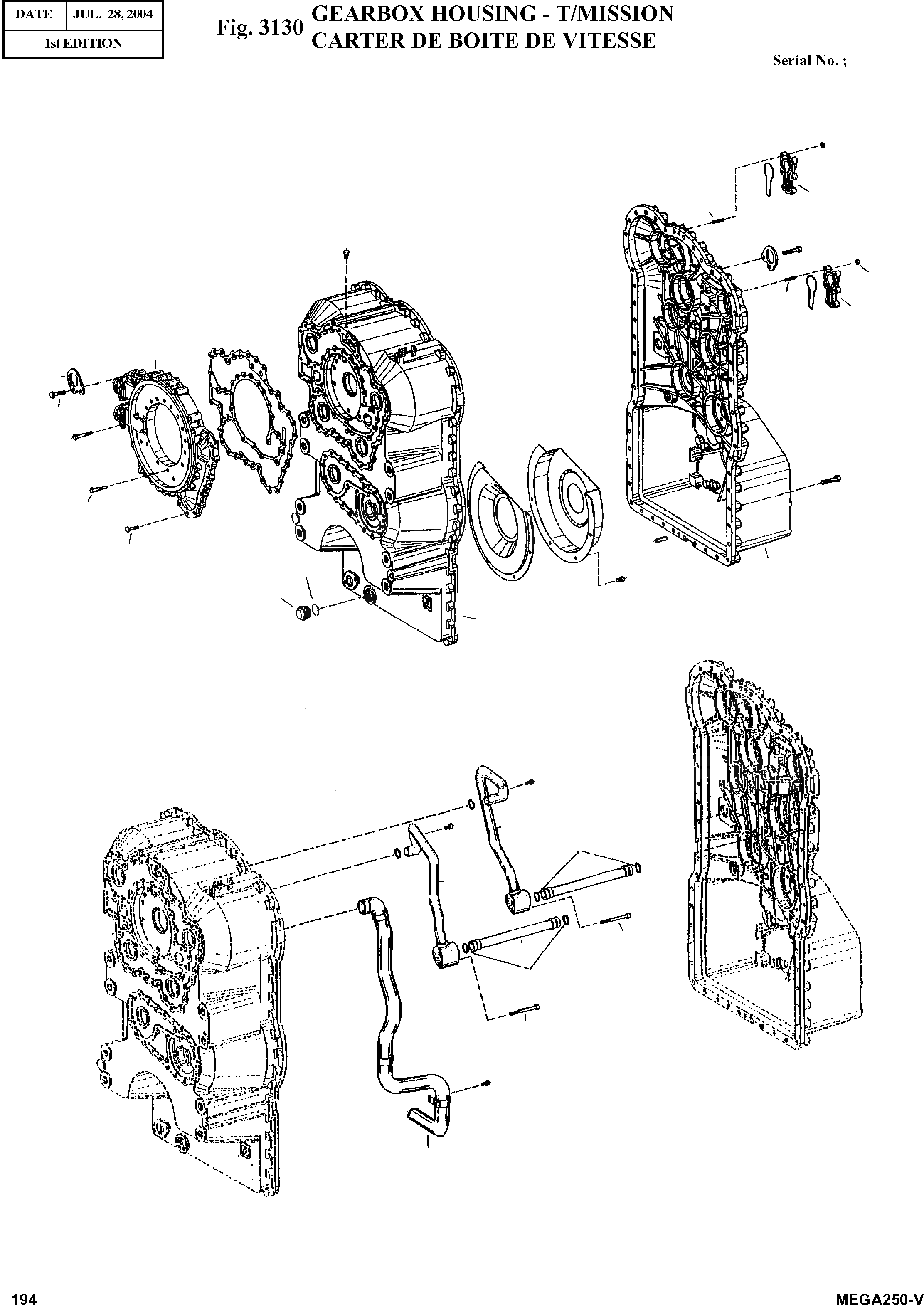

Запчасти Doosan Daewoo GEARBOX HOUSING - T/MISSION HYDRAULIC PARTS

10

K9000587

HOUSING;FRONT

desc: CARTER

1шт.

30

1.402-00117

HOUSING;REAR

desc: CARTER

1шт.

40

1.123-00002

PIN

desc: GOUPILLE

2шт.

50

1.120-00098

SCREW M10X50

desc: VIS

51шт.

60

1.412-00003

PLATE;FIXING

desc: PLAQUE

1шт.

70

1.120-00098

SCREW

desc: VIS

2шт.

80

1.461-00009

SHEET;SCREEN

desc: FEUILLE

1шт.

90

1.461-00010

SHEET;SCREEN

desc: FEUILLE

1шт.

100

1.120-00081

SCREW

desc: VIS

5шт.

140

2.422-00001

BREATHER

desc: RENIFLARD

1шт.

160

1.402-00115

HOUSING;OIL FEED

desc: CARTER

1шт.

170

1.180-00001

GASKET

desc: GARNITURE

1шт.

180

1.120-00083

SCREW M8X45

desc: VIS

21шт.

200

1.120-00082

SCREW M8X30

desc: VIS

15шт.

220

1.120-00084

SCREW M8X60

desc: VIS

4шт.

240

1.412-00003

PLATE;FIXING

desc: PLAQUE

1шт.

250

1.120-00079

SCREW

desc: VIS

2шт.

260

1.430-00001

COVER

desc: COUVERCLE

2шт.

270

1.180-00051

O-RING

desc: JOINT TORIQUE

2шт.

280

1.120-00036

STUD M8X25

desc: GOUJON

12шт.

300

1.121-00034

NUT;HEX

desc: ECROU 6 PANS

12шт.

310

K9000588

TUBE;OIL

desc: TUBE

1шт.

311

1.180-00053

O-RING

desc: JOINT TORIQUE

1шт.

312

1.120-00081

SCREW

desc: VIS

2шт.

314

1.441-00257

TUBE;OIL

desc: TUBE

1шт.

328

1.120-00099

SCREW

desc: VIS

1шт.

340

1.180-00053

O-RING

desc: JOINT TORIQUE

1шт.

350

K9000589

TUBE;OIL

desc: TUBE

1шт.

351

1.180-00053

O-RING

desc: JOINT TORIQUE

1шт.

352

1.120-00081

SCREW

desc: VIS

2шт.

354

1.441-00257

TUBE;OIL

desc: TUBE

1шт.

364

1.120-00099

SCREW

desc: VIS

1шт.

380

1.180-00053

O-RING

desc: JOINT TORIQUE

2шт.

390

1.441-00260

TUBE;SUCTION

desc: TUBE

1шт.

400

1.120-00081

SCREW

desc: VIS

1шт.

451

1.181-00015

PLUG

desc: BOUCHON

1шт.

452

1.180-00052

O-RING

desc: JOINT TORIQUE

1шт.
