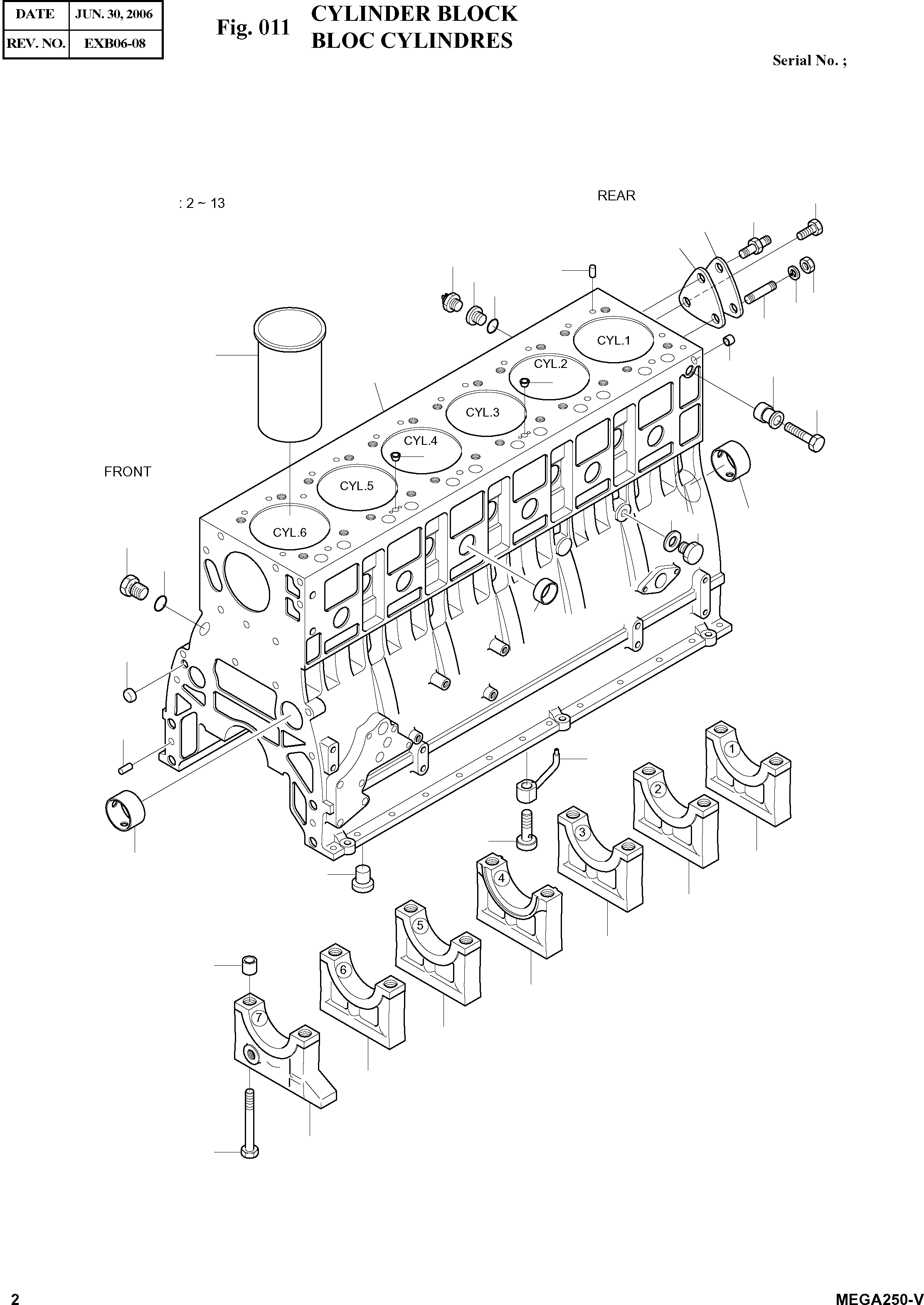

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

1

65.01101-6040H

CYLINDER BLOCK ASS'Y

SERIAL: 050907

1шт.

1

65.01101-6040J

CYLINDER BLOCK ASS'Y

SERIAL: 050908

1шт.

2

65.01101-0040M

BLOCK;CYLINDER

SERIAL: 050907

1шт.

2

65.01101-0040O

BLOCK;CYLINDER

SERIAL: 050908

1шт.

3

06.15091-0326

PLUG;CORE HOLE B40D

desc: . BOUCHON

9шт.

4

06.15091-0313

PLUG;CORE HOLE B20D

desc: . BOUCHON

2шт.

5

65.91001-0002

PLUG

SERIAL: 050907

2шт.

5

65.91001-0013

AVSEAL

SERIAL: 060223

2шт.

5

65.91001-0013A

AVSEAL

SERIAL: 060224

2шт.

6

65.91020-0013

PLUG

desc: . BOUCHON

1шт.

7

65.04410-0017

BUSH;CAMSHAFT

SC: B

4шт.

8

65.01105-1164E

CAP;BEARING NO.7

SC: D

1шт.

8

65.01105-1175C

CAP;BEARING NO.7

SC: D

1шт.

9

65.01105-1160F

CAP;BEARING NO.3 5

SC: D

2шт.

10

65.01105-1156D

CAP;BEARING THRUST

SC: D

1шт.

11

65.01105-1172B

CAP;BEARING NO.1 2 6

SC: D

3шт.

12

65.91710-0035B

RING LOCATING

desc: . ANNEAU

14шт.

13

65.90020-0035B

BOLT;BEARING 12.9t

desc: . BOULON

14шт.

20

65.01201-0050

LINER;CYLINDER

desc: RECOUVREMENT

6шт.

21

65.90310-0048

SCREW;PLUG M10X1.5

desc: BOUCHON

6шт.

22

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

6шт.

23

65.90310-0091

SCREW;PLUG M12X1.5

desc: BOUCHON

1шт.

24

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

1шт.

25

06.22022-0907

PIN;DOWEL 6M6X10

SERIAL: 050907

6шт.

25

06.22022-0911

PIN;DOWEL 6M6X10

SERIAL: 050908

6шт.

26

65.96601A0042

GASKET;END COVER

desc: GARNITURE

1шт.

27

65.91605-0006B

COVER;END

desc: COUVERCLE

1шт.

28

06.01913-3114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

1шт.

29

06.06225-0704

BOLT;STUD M8X20

desc: BOULON DE GOUJON

1шт.

30

65.90201-0075

BOLT;SPACER

desc: BOULON

1шт.

31

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

2шт.

32

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS

1шт.

33

06.22022-1013

PIN;DOWEL 8X24

desc: GOUPILLE

2шт.

34

06.01013-9517

BOLT;HEX M16X60

desc: BOULON

1шт.

35

65.91701-0148

SPACER

desc: ENTRETOISE

1шт.

36

65.27441-7007

SWITCH;OIL PRESSURE

desc: INTERRUPTEUR

1шт.

37

65.98130-0194

ADAPTER

desc: ADAPTEUR

1шт.

38

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

1шт.

42

65.01601-6003

OIL SPRAY NOZZLE ASS'Y

desc: BEC

6шт.

43

65.05405-6001

RELIEF VALVE ASS'Y

desc: VANNE

6шт.
