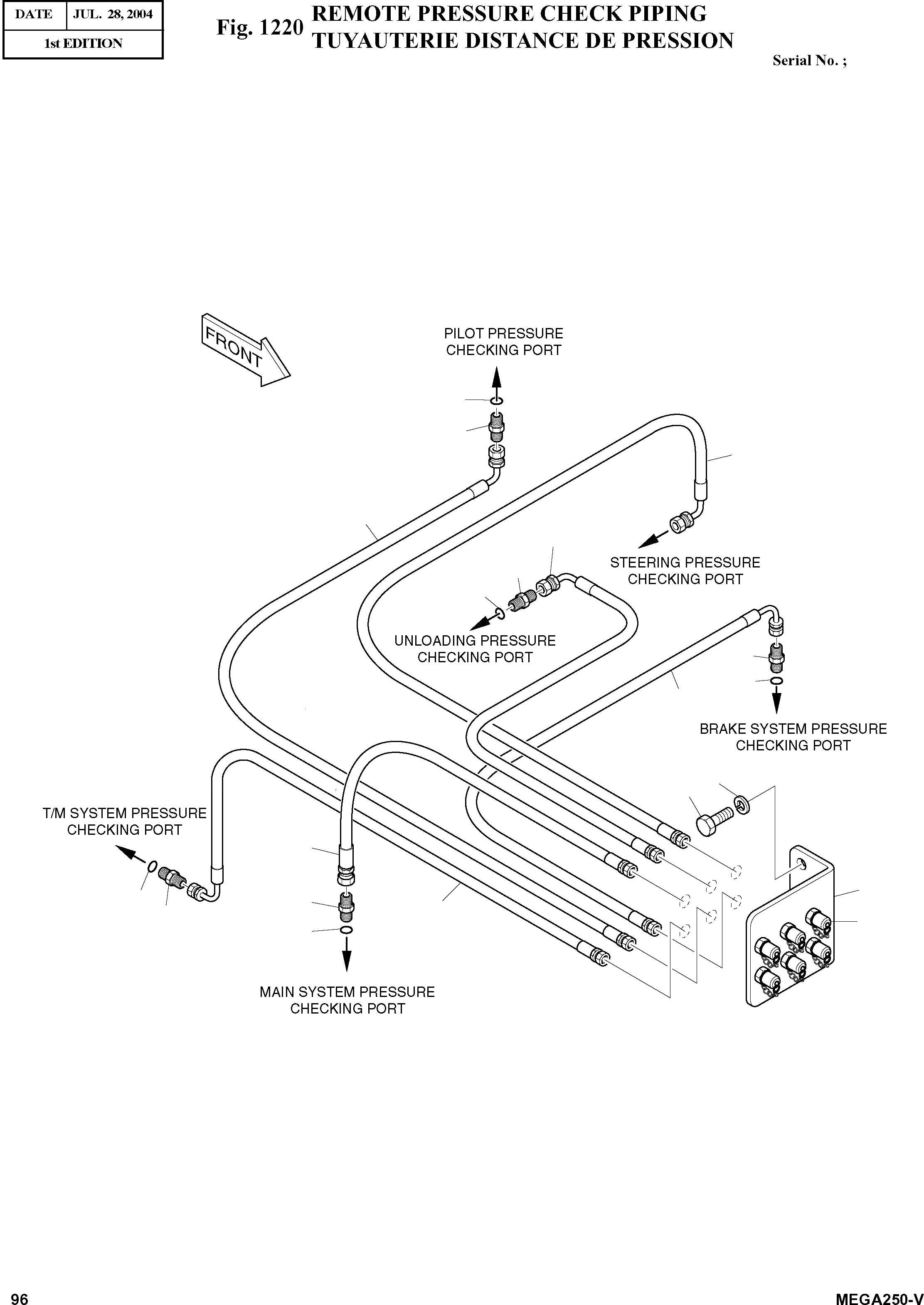

Запчасти Doosan Daewoo REMOTE PRESSURE CHECK PIPING BODY PARTS

-

K1000666

REMOTE PRESSURE CHECK PIPING

SC: D

-2шт.

1

284-00007A

CHECK PORTS ASS'Y

desc: CHECK

1шт.

1A

120-00003

SCREW;COUPLING

desc: . VIS

6шт.

2

S0512053

BOLT M10X1.5X25

desc: BOULON

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

4

2184-1026D420

HOSE PF1/4-510L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1036D167

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1036D442

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1036D31

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

8

DS2055678

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1036D37

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

10

181-00372A

ADAPTER

desc: ADAPTEUR

1шт.

11

180-00408

O-RING

desc: JOINT TORIQUE

1шт.

12

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

4шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

4шт.
