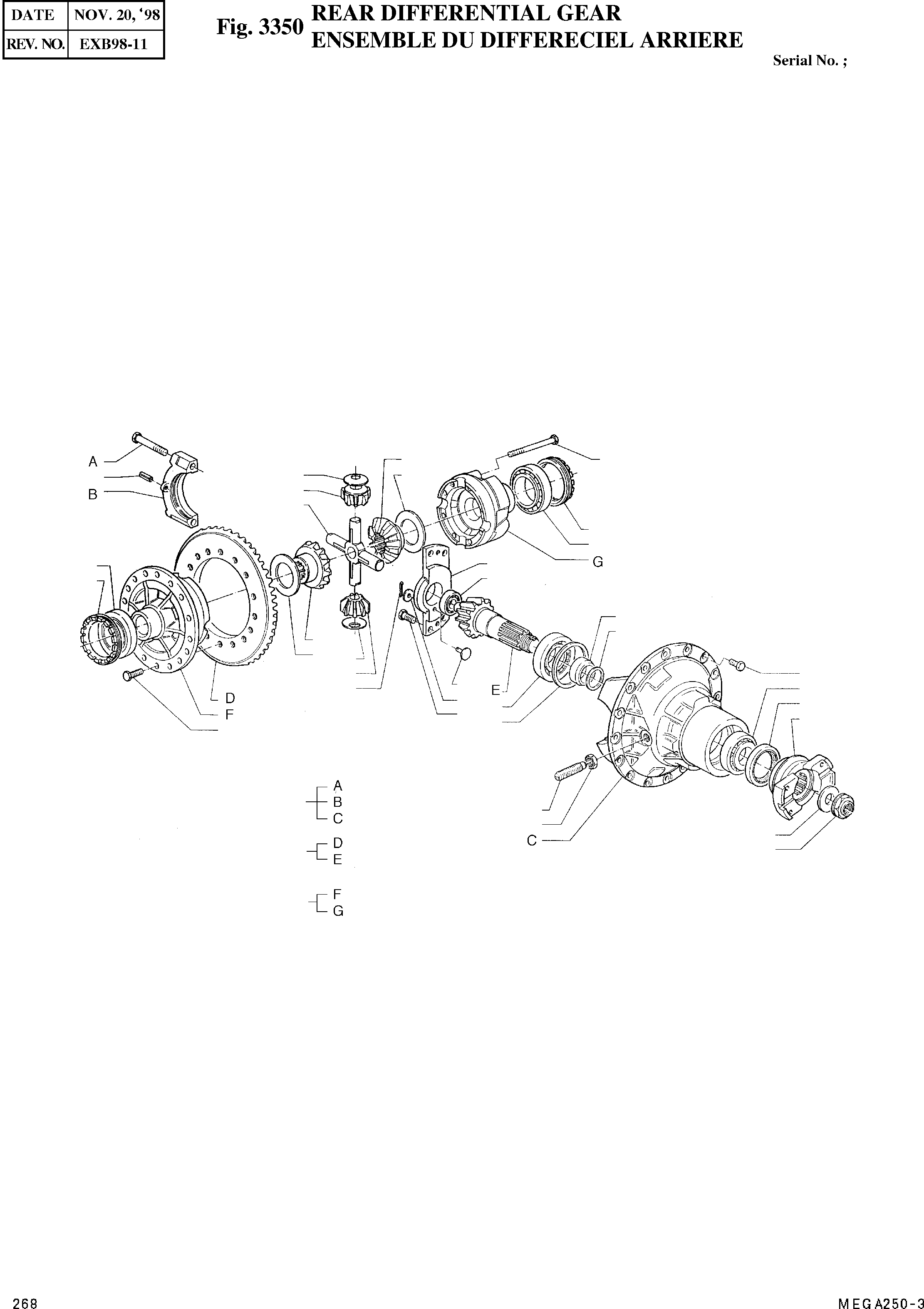

REAR DIFFERENTIAL GEAR

Запчасти Doosan Daewoo REAR DIFFERENTIAL GEAR HYDRAULIC PARTS

11
6
9
5
1
8
7
3
2
12
2
13
3
18
19
6
5
9
8
28
14
10
24
15
25
16
22
23
17
4
110
20
21
26
27
120
130
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

70270

PIN D8X40

desc: BROCHE

2шт.

2

70264

BEARING

desc: PALIER

2шт.

3

3111603

NUT;ADJUSTING

desc: ECROU

2шт.

4

70369

SCREW

desc: VIS

18шт.

5

3119763

RING;SLEEVING

desc: BAGUE

2шт.

6

3119733

GEAR;SUN

desc: PIGNON

2шт.

7

3119753

CROSS

desc: ESSIEU CROIX

1шт.

8

3119743

GEAR;PLANETARY

desc: PIGNON

4шт.

9

3119773

RING;SLEEVING

desc: BAGUE

4шт.

10

70387

PIN;SPLIT

desc: GOUPILLE FENDUE

1шт.

11

70268

SCREW M12X100

desc: VIS

8шт.

12

3119693

BEAM;CONNECTION

desc: BRIDE

1шт.

13

70351

BEARING

desc: PALIER

1шт.

14

3120143

PIN

desc: BROCHE

1шт.

15

3120133

WASHER

desc: RONDELLE

1шт.

16

70348

BEARING

desc: PALIER

1шт.

17

3119803

SHIM 3.50mm

SC: R

17

3119813

SHIM 3.60mm

SC: R

17

3119823

SHIM 3.70mm

SC: R

17

3119833

SHIM 3.80mm

SC: R

17

3119843

SHIM 3.90mm

SC: R

17

3119853

SHIM 4.00mm

SC: R

17

3119863

SHIM 4.10mm

SC: R

17

3119873

SHIM 4.20mm

SC: R

17

3119883

SHIM 4.30mm

SC: R

17

3119893

SHIM 4.40mm

SC: R

17

3119903

SHIM 4.50mm

SC: R

18

3119703

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

19

3119913

SHIM 0.500mm

SC: R

19

3119923

SHIM 1.000mm

SC: R

19

3119933

SHIM 1.025mm

SC: R

19

3119943

SHIM 1.050mm

SC: R

19

3119953

SHIM 1.075mm

SC: R

19

3119963

SHIM 1.100mm

SC: R

19

3119973

SHIM 1.125mm

SC: R

19

3119983

SHIM 1.150mm

SC: R

19

3119993

SHIM 1.175mm

SC: R

19

3120003

SHIM 1.200mm

SC: R

19

3120013

SHIM 1.225mm

SC: R

19

3120023

SHIM 1.250mm

SC: R

19

3120033

SHIM 1.275mm

SC: R

19

3120043

SHIM 1.300mm

SC: R

19

3120053

SHIM 1.325mm

SC: R

19

3120063

SHIM 1.350mm

SC: R

19

3120073

SHIM 1.375mm

SC: R

19

3120083

SHIM 1.400mm

SC: R

19

3120093

SHIM 1.425mm

SC: R

19

3120103

SHIM 1.450mm

SC: R

19

3120113

SHIM 1.475mm

SC: R

19

3120123

SHIM 1.500mm

SC: R

20

3119783

PIN M20X1.5

desc: BROCHE

1шт.

21

70009

NUT M20X1.5

desc: ECROU

1шт.

22

70269

SCREW M16X1.5X35

desc: VIS

4шт.

23

3212033

COMPLETE;FLANGE

desc: ENSEMBLE DE BRIDE

1шт.

24

70349

BEARING

desc: PALIER

1шт.

25

70988

GASKET D65X120X10

desc: JOINT

1шт.

26

3100323

WASHER

desc: RONDELLE

1шт.

27

3143623

NUT

desc: ECROU

1шт.

28

70322

SCREW

desc: VIS

16шт.

110

3130783

SUPPORT ASS'Y

desc: ENSEMBLE DE SUPPORT

1шт.

120

3163853

SHAFT;BEVEL GEAR

desc: ARBRE

1шт.

130

3130893

CARRIER ASS'Y

desc: DIFFERENCIEL AVANT

1шт.
