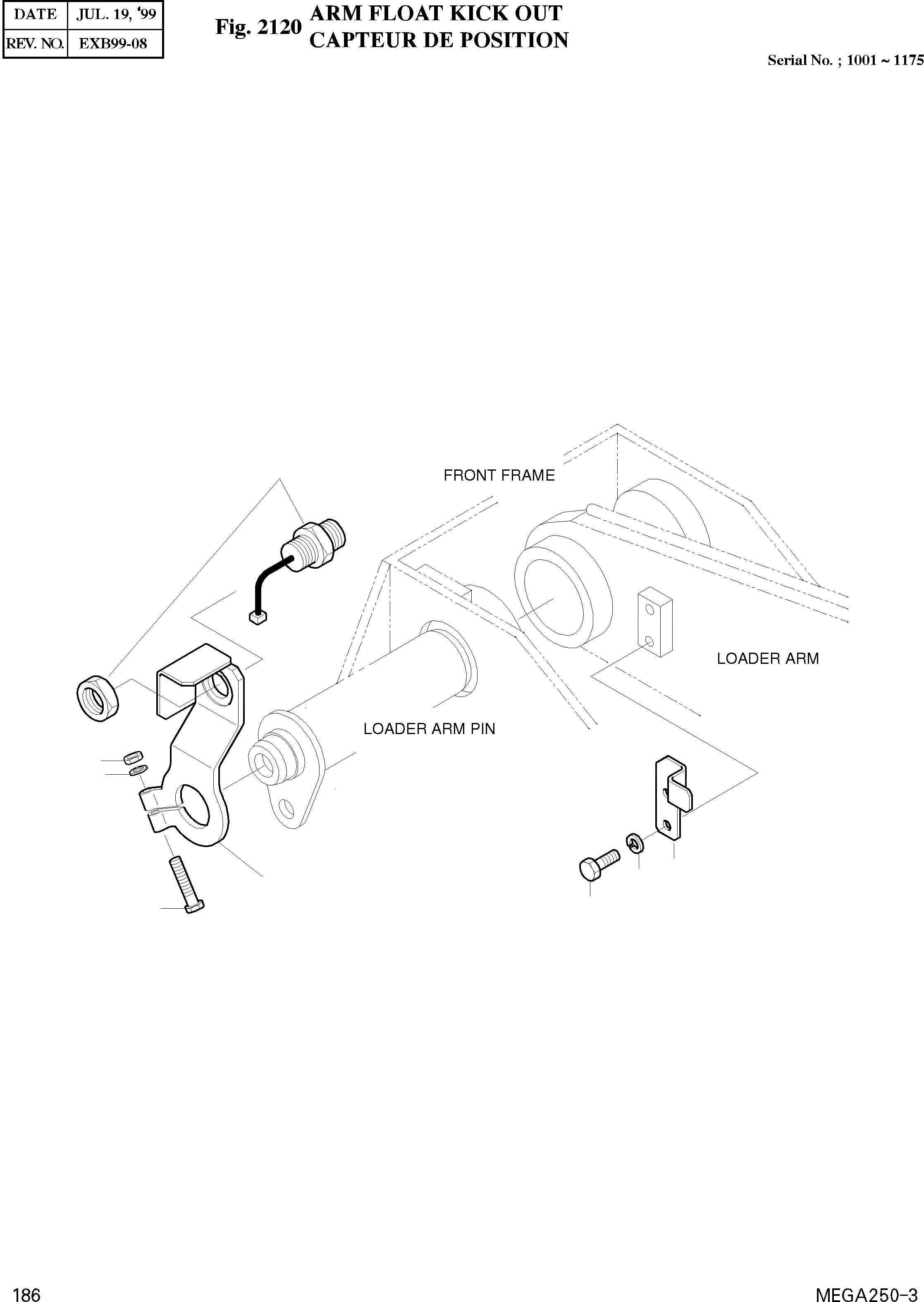

Запчасти Doosan Daewoo ARM FLOAT KICK OUT FRONT PARTS

-

4715-4010

ARM FLOAT KICK OUT ASS'Y

SERIAL: 1001-1175

1

4195-4643

BRACKET

desc: SUPPORT

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

1шт.

3

S4012633

NUT

desc: ECROU M10X1.5

1шт.

4

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

3шт.

5

4549-1148

SWITCH;PROXIMITY

desc: INTERRUPTEUR

1шт.

6

4191-4512

PLATE

desc: PLAQUE

1шт.

7

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.
