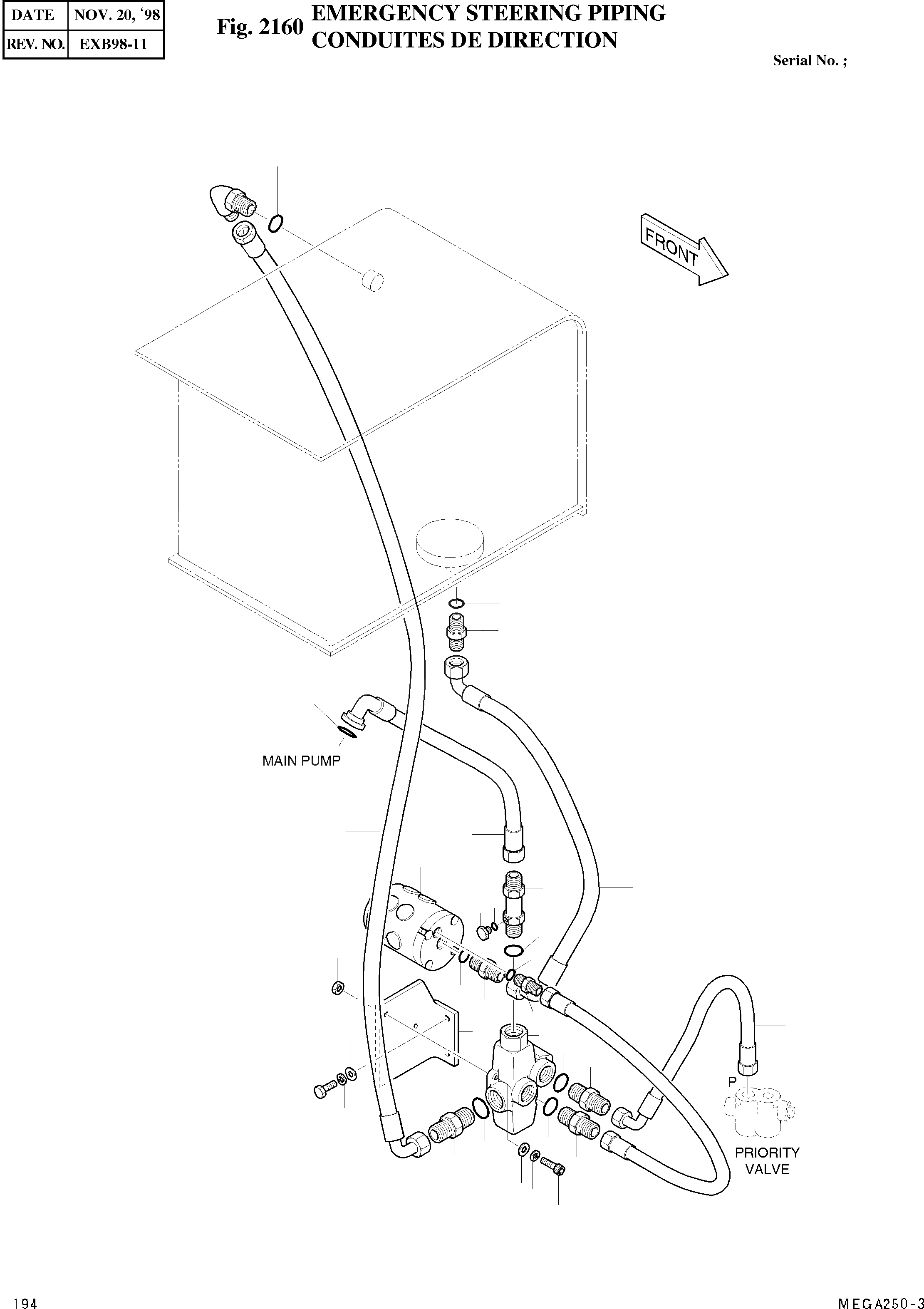

Запчасти Doosan Daewoo EMERGENCY STEERING PIPING FRONT PARTS

-

4400-1899

EMERCENCY STEERING ASS'Y

SC: D

1

4401-9187

PUMP KIT;EMERG STEER

desc: SUPPORT

1шт.

2

4420-9356

VALVE;SWITCH

desc: BOULON A 6 PANS

1шт.

3

2181-1950D1

PLUG 1/4PFO

desc: RONDELLE ELASTIQUE

1шт.

4

2184-1061D254

HOSE PF3/4-850L

SERIAL: 1001-1150

1шт.

4

2184-1061D115

HOSE PF3/4-950L

SERIAL: 1151

1шт.

5

2184-1089D17

HOSE PF1-1050L

SERIAL: 1001-1145

1шт.

5

2184-1089D14

HOSE PF1-850L

SERIAL: 1146

1шт.

6

2184-1026D300

HOSE PF1/4-300L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1026D382

HOSE PF3/4-870L

desc: TUYAU FLEXIBLE

1шт.

8

4184-1290

HOSE PF1/2-1950L

desc: TUYAU FLEXIBLE

1шт.

9

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

10

4621-3977

PLATE

SERIAL: 1001-1156

1шт.

10

4621-3977A

PLATE

SERIAL: 1157

1шт.

11

S0515253

BOLT M12X1.25X30

desc: BOULON A 6 PANS

2шт.

12

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

2шт.

13

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

2шт.

14

2181-1126D22

ADAPTER PFO1XPFM3/4

desc: RACCORD ADAPTATEUR

1шт.

15

S8000291

O-RING P29

desc: JOINT TORIQUE

1шт.

16

2181-1917D44

ADAPTER M22X1.5XPF3/4

desc: RACCORD ADAPTATEUR

1шт.

17

S8180341

PACKING

desc: RONDELLE D'ETANCHEITE

1шт.

18

2181-1917D45

ADAPTER M42X2.0XPF3/4

SERIAL: 1001-1156

1шт.

18

4181-2803

ADAPTER M42X2.0XPF3/4

SERIAL: 1157

1шт.

19

S8180631

RING;SEAL M42

SERIAL: 1001-1106

3шт.

19

S8181631

RING;SEAL M42

SERIAL: 1107-1156

3шт.

19

S8180631

RING;SEAL M42

SERIAL: 1157

3шт.

20

2181-1917D43

ADAPTER M42X2.0XPF1

SERIAL: 1001-1156

1шт.

20

4181-2808

ADAPTER M42X2.0XPF1

SERIAL: 1157

1шт.

21

4193-1436

PIPE M42X2.0XPF1

SERIAL: 1001-1156

1шт.

21

4193-1436A

PIPE M42X2.0XPF1

SERIAL: 1157

1шт.

22

4181-2550

ADAPTER M33X2.0XPF3/4

desc: RACCORD ADAPTATEUR

1шт.

23

S8180521

RING;SEAL M33

desc: BAGUE D'ETANCHEITE

1шт.

24

2181-1702D1

ELBOW;S

SERIAL: 1001-1140

1шт.

24

2181-1702D71

ELBOW;S

SERIAL: 1141

1шт.

25

S8000111

O-RING P11

desc: JOINT TORIQUE

1шт.

26

2181-1917D52

ADAPTER M48X2.0XPF1/2

SERIAL: 1001-1156

1шт.

26

4181-2810

ADAPTER M48X2.0XPF1/2

SERIAL: 1157

1шт.

27

S8180691

RING;SEAL M48

SERIAL: 1001-1106

1шт.

27

S8181691

RING;SEAL M48

SERIAL: 1107-1156

1шт.

27

S8180691

RING;SEAL M48

SERIAL: 1157

1шт.

35

S8000241

O-RING PF3/4

desc: JOINT TORIQUE

1шт.

36

2114-1058D10

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

37

2114-1058D30

WASHER;PLAIN M12

desc: RONDELLE

2шт.

38

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

1шт.

39

S4012633

NUT

SERIAL: 1016

2шт.
