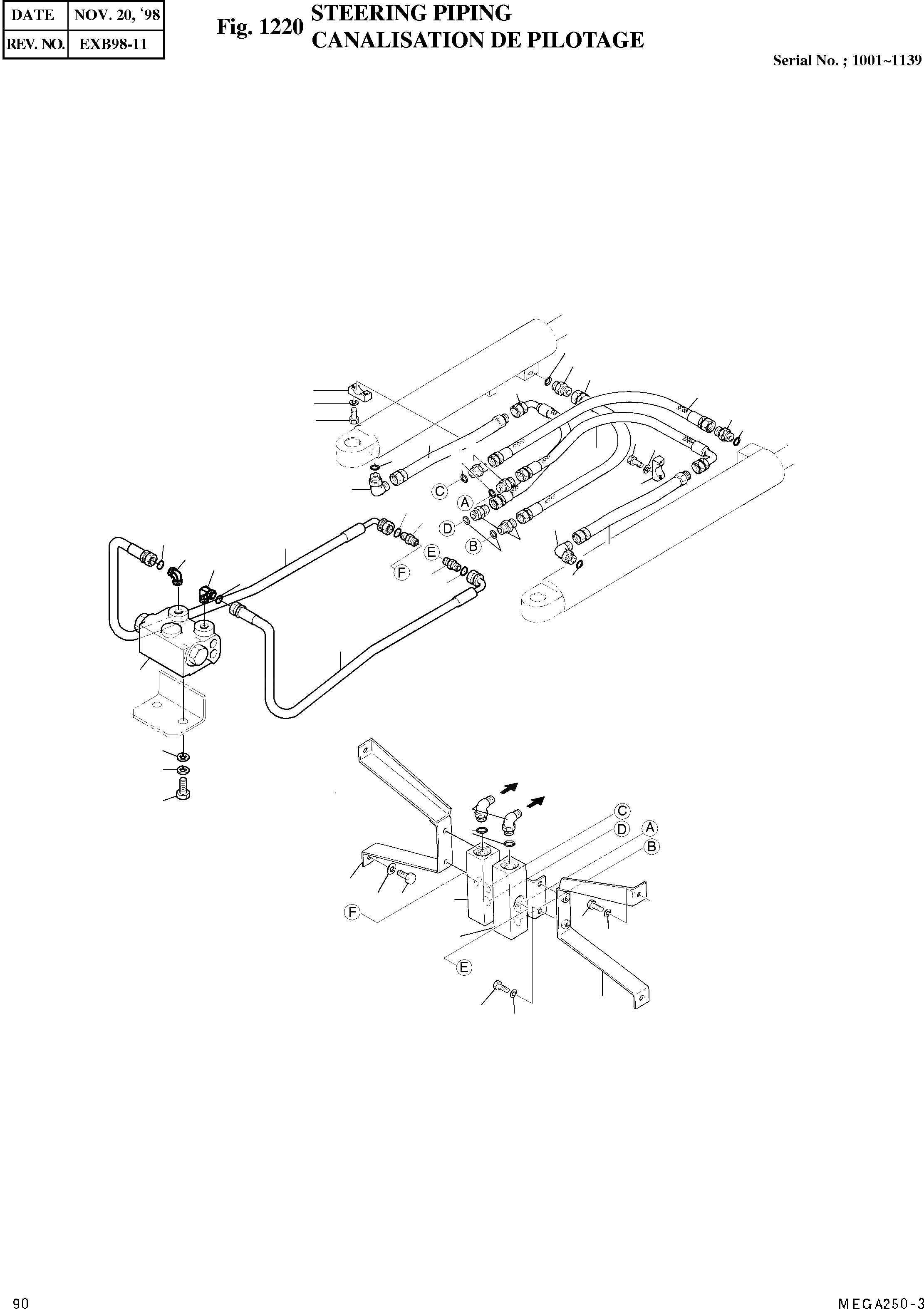

Запчасти Doosan Daewoo STEERING PIPING BODY PARTS

-

4400-1794

STEERING PIPING ASS'Y

SERIAL: 1001-1139

1

4420-9199

VALVE;CUSHION

desc: VANNE

1шт.

2

S0508753

BOLT M8X1.25X18

desc: BOULON A 6 PANS

2шт.

3

S5102603

WASHER;SPRING Ґх10

desc: RONDELLE ELASTIQUE M10

8шт.

4

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

6

2181-1702D47

ADAPTER;S

desc: ADAPTEUR

2шт.

7

2180-1026D26

O-RING 7/16UNF

desc: JOINT TORIQUE

2шт.

8

2184-1071D9

HOSE PF1/2-630L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1061D235

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.

10

2181-1126D6

ADAPTER PF1/2-PF1/2

desc: RACCORD ADAPTATEUR

6шт.

11

S8000181

O-RING

desc: JOINT TORIQUE

8шт.

12

4182-1587

PIPE

desc: CONDUITE

2шт.

13

4124-4042

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

14

S0558253

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

15

2181-1702D2

ELBOW;S PF1/2

desc: COUDE

2шт.

16

2184-1054D51

HOSE PF1/2-700L

desc: TUYAU FLEXIBLE

1шт.

17

4197-1536A

BRACKET

desc: SUPPORT

2шт.

18

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

4шт.

19

S5102703

WASHER;SPRING Ґх12

desc: RONDELLE ELASTIQUE M12

4шт.

20

2181-1702D42

ELBOW PF3/4XPF1/2

desc: RACCORD

2шт.

21

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

22

4237-1077

BLOCK;PORT(R.H.)

desc: BLOC

1шт.

23

4237-1078

BLOCK;PORT(L.H.)

desc: BLOC

1шт.

24

S8000241

O-RING PF3/4

desc: JOINT TORIQUE

2шт.

25

2184-1071D38

HOSE (S-90)PF1/2-580L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1054D52

HOSE PF1/2-650L

desc: TUYAU FLEXIBLE

1шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

2шт.

28

S8000111

O-RING

desc: JOINT TORIQUE

2шт.
