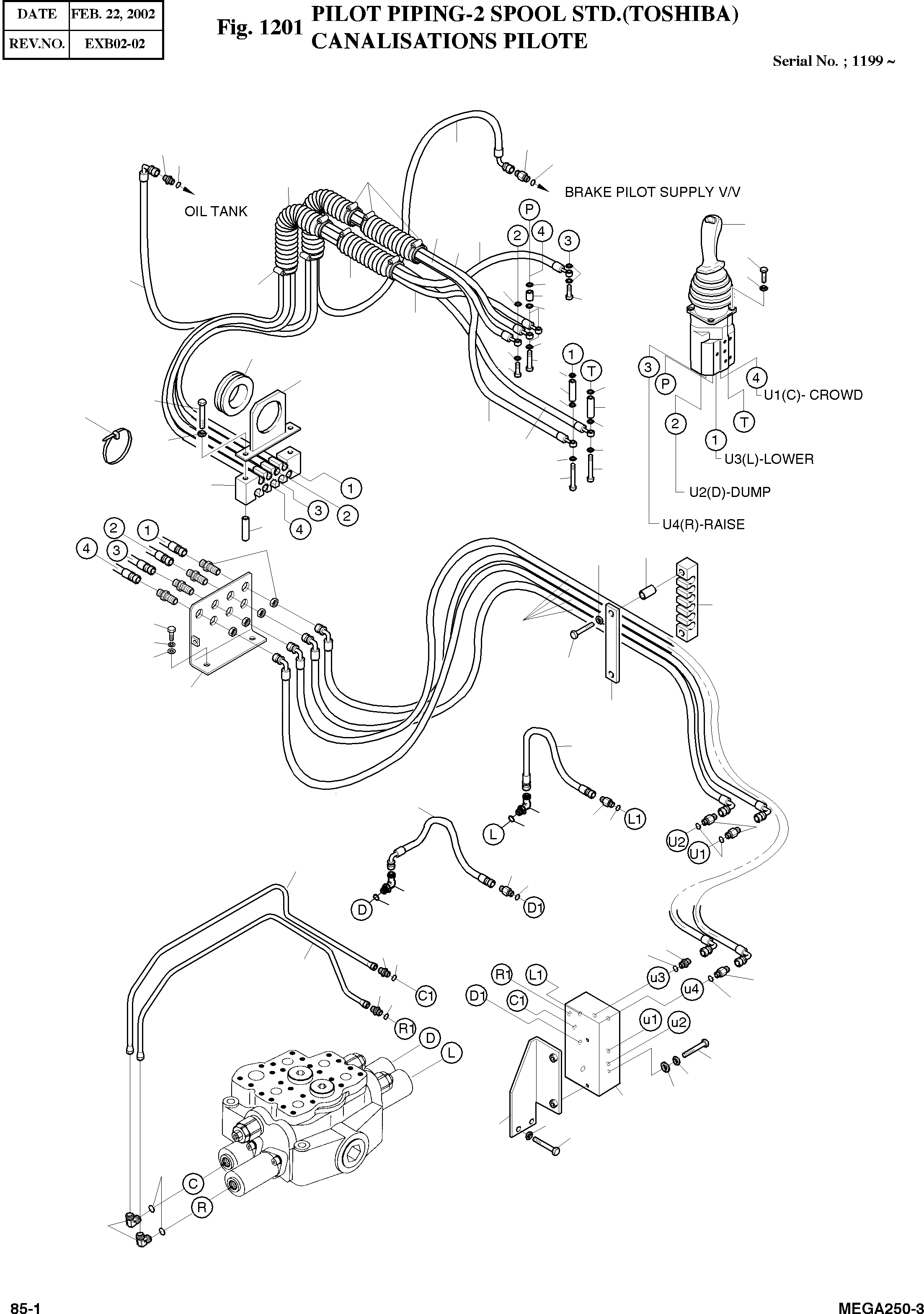

Запчасти Doosan Daewoo PILOT PIPING-2 SPOOL STD.(TOSHIBA) BODY PARTS

-

400-00017F1

PILOT PIPING-STD

SERIAL: 1199-1285

-

400-00253

PILOT PIPING-STD

SERIAL: 1286

1

4420-1263

PILOT VALVE(CONNECTOR)

SERIAL: 1199-1305

1шт.

1

426-00105

PILOT VALVE(CONNECTOR)

SERIAL: 1306

1шт.

1-1

4420-9443A

CONTROLLER;PILOT

desc: . CONTROLEUR

1шт.

2

S2204861

BOLT M6X1.0X20

desc: BOULON A 6 PANS CREUX

4шт.

3

S5110301

WASHER SPRING

desc: RONDELLE ELASTIQUE M6

4шт.

4

2181-2718

ADAPTER PF3/8

desc: RACCORD

4шт.

5

S8180221

COVER;SEAL

desc: RONDELLE D'ETANCHEITE

16шт.

6

4114-4089

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

7

4114-4088

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

8

4120-4043B

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

9

4120-4044B

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

10

4120-4045B

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

11

4184-1253

HOSE;BANJO 3/8-1/4 BANJO 2500L

desc: TUYAU FLEXIBLE

4шт.

12

4184-1254A

HOSE;BANJO 3/8-1/4 BANJO 2050L

desc: TUYAU FLEXIBLE

1шт.

13

4184-1252

HOSE;BANJO 3/8-1/4 BANJO 2800L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1128D17

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

4шт.

16

4197-2064

BRACKET

desc: SUPPORT

1шт.

17

2160-1004D21

BUSHING;RUBBER

desc: ETOUPE

1шт.

18

4124-1536A

CLAMP;RUBBER

desc: COLLIER

1шт.

19

S0556853

BOLT M8X1.25X75

desc: BOULON A 6 PANS

2шт.

20

S5102303

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M6

6шт.

21

4114-1717

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

22

4412-1110

BRACKET

SERIAL: 1199-1280

1шт.

22

4412-1110A

BRACKET

SERIAL: 1281-1285

1шт.

22

4412-1110B

BRACKET

SERIAL: 1286

1шт.

23

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

2шт.

25

2181-1126D7

ADAPTER;S PF3/8-PFO3/8

desc: RACCORD

2шт.

26

2181-1126D27

ADAPTER;LONG PF3/8-PFO3/8

desc: RACCORD ADAPTATEUR

4шт.

27

S8000141

O-RING P14

desc: JOINT TORIQUE

23шт.

28

2158-1017D1

PROTECTOR

desc: TUYAU FLEXIBLE

1шт.

29

S8450044

CLAMP

desc: COLLIER

6шт.

30

S8450053

CLAMP

desc: COLLIER

2шт.

31

4124-1537A

CLAMP;RUBBER

desc: COLLIER

1шт.

32

4124-1538

PLATE

desc: PLAQUE

1шт.

33

4114-1718

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

34

S0556353

BOLT M8X1.25X60

desc: BOULON A 6 PANS

2шт.

35

2114-1058D46

WASHER

desc: RONDELLE

2шт.

36

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

38

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

40

4182-1389

BLOCK(STD.)

desc: BLOC

1шт.

41

4197-1296A

BRACKET

desc: SUPPORT

1шт.

42

S0556953

BOLT M8X1.25X80

desc: BOULON A 6 PANS

2шт.

43

S5010513

WASHER;PLAIN

desc: RONDELLE M8

2шт.

45

S0558253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

2шт.

46

2181-1916D10

ADAPTER 3/8PFO-M16X1.5

desc: RACCORD ADAPTATEUR

2шт.

48

2181-2185D2

ELBOW PFO3/8-M16X1.5

desc: COUDE

2шт.

50

182-00001

PIPE;BUCKET CROWD

desc: CONDUITE

1шт.

51

2184-1046D197

HOSE PF1/4-300L

desc: TUYAU FLEXIBLE

1шт.

52

182-00002

PIPE;BOOM RAISE

desc: CONDUITE

1шт.

53

2184-1045D156

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

56

2124-1084D1

CLIP;BAND

desc: CLIP

10шт.

57

2158-1017D2

HOSE

desc: TUYAU FLEXIBLE

1шт.

58

2181-1126D36

ADAPTER PF3/8-PF1/4

desc: RACCORD ADAPTATEUR

2шт.
