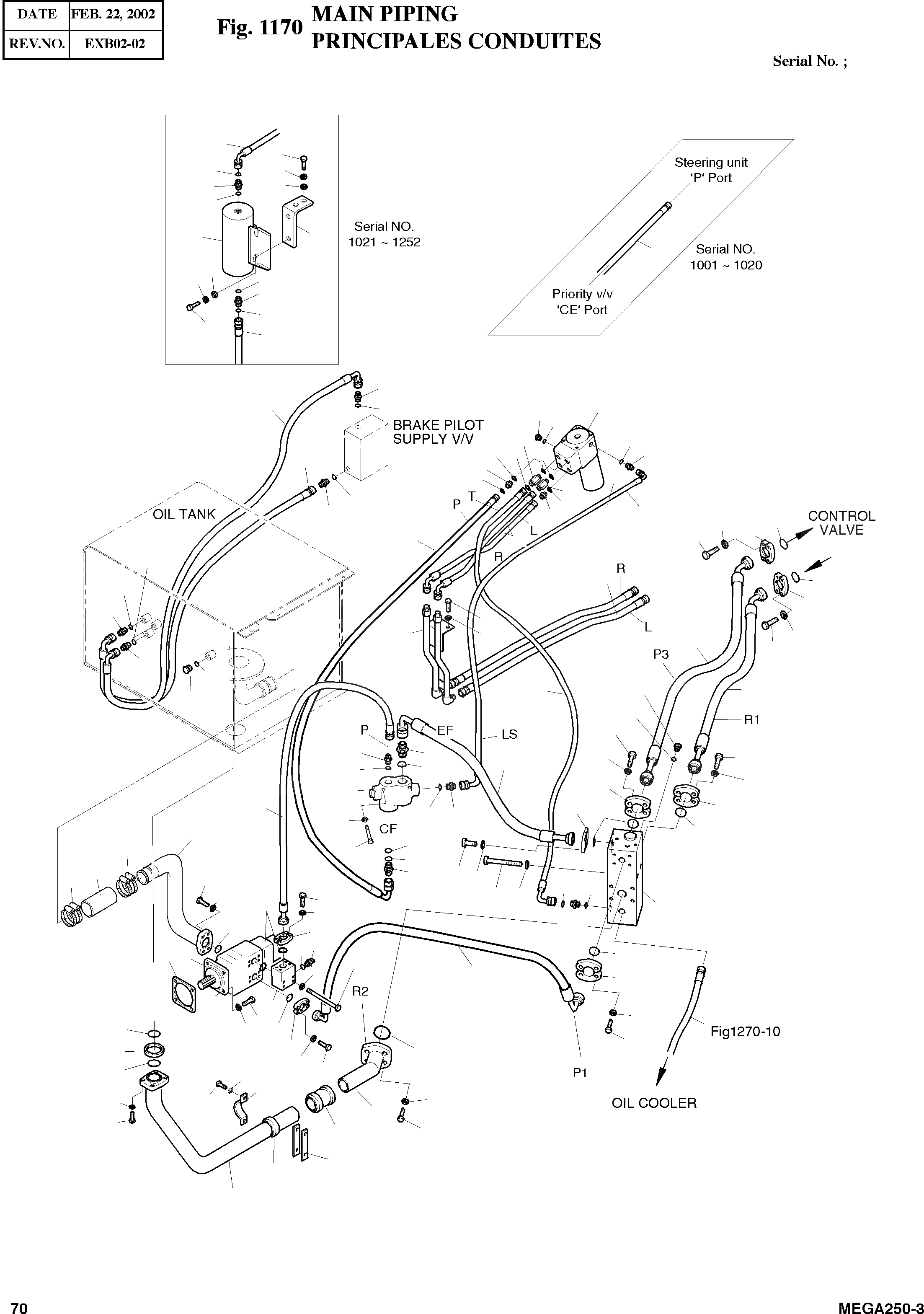

Запчасти Doosan Daewoo MAIN PIPING BODY PARTS

-

4400-1785

MAIN PIPING

SC: D

1

4401-9227

MAIN PUMP

desc: POMPE

1шт.

2

4420-9404A

STEERING UNIT

SERIAL: 1001-1066

1шт.

2

4420-9555

STEERING UNIT

SERIAL: 1067

1шт.

3

4420-9406

PRIORITY VALVE

desc: SOUPAPE DE PRIORITE

1шт.

4

4420-9408

UNLOADER VALVE

SERIAL: 1001-1066

1шт.

4

4420-9408P

UNLOADER VALVE

SERIAL: 1067-1127

1шт.

4

4420-9408PA

UNLOADER VALVE

SERIAL: 1128-1230

1шт.

4

4420-9408PB

UNLOADER VALVE

SERIAL: 1231

1шт.

5

4181-2625A

BLOCK

desc: BLOC

1шт.

6

S2215761

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6 PANS CREUX

4шт.

7

2944-744M1

THRUSTER

desc: POUSSER

1шт.

8

S5102703

WASHER;SPRING

SERIAL: 1001-1020

6шт.

8

S5102703

WASHER;SPRING

SERIAL: 1021-1252

10шт.

8

S5102703

WASHER;SPRING

SERIAL: 1253

6шт.

9

S0560553

BOLT M12X1.75X40

SERIAL: 1001-1154

4шт.

9

S0560563

BOLT M12X1.75X40

SERIAL: 1155

4шт.

10

S2213261

BOLT;SOCKET M10X1.5X80

desc: BOULON A 6 PANS

4шт.

11

S0556953

BOLT M8X1.25X80

SERIAL: 1001-1207

2шт.

11

S0556753

BOLT M8X1.25X70

SERIAL: 1208

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

13

S2216761

BOLT;UNLOADER M12X1.75X105

desc: BOULON A 6 PANS CREUX

2шт.

14

4182-1541A

PIPE;STEER 1/2"PFҐх21.7

desc: CONDUITE

1шт.

15

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

20шт.

16

4193-1372A

PIPE;SUCTION 3"SAEҐх89.1

desc: CONDUITE

1шт.

17

S8450082

CLAMP;HOSE Ґх82~102

desc: COLLIER

4шт.

18

2185-1002D55

HOSE;SUCTION 240L

SERIAL: 1001-1106

1шт.

18

2185-1002D7

HOSE;SUCTION 200L

SERIAL: 1107

1шт.

19

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

16шт.

20

2181-9078

FLANGE;SPLIT 1"SAE 3000

desc: FLASQUE EN DEUX PARTIES

8шт.

21

4215-1003D7

FLANGE;SPLIT 1 1/4"SAE 3000

desc: BRIDE

4шт.

22

4215-1003D5

FLANGE;SPLIT 1 1/2"SAE 3000

desc: FLASQUE

4шт.

23

2181-2333

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

24

2181-1890D3

PLUG PFO3/4

desc: BOUCHON

1шт.

25

4182-1585

PIPE;RETURN Ґх60.5

desc: CONDUITE

1шт.

26

2414-9001A

COUPLING Ґх60.5

desc: ACCOUPLEMENT

1шт.

27

4182-1586A

PIPE;RETURN Ґх60.5

desc: CONDUITE

1шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

29

S8000081

O-RING

desc: JOINT TORIQUE

1шт.

30

4180-1259

GASKET SAE'C'-4BOLT

desc: JOINT

1шт.

31

2181-1126D83

ADAPTER A=78 PF1/2

desc: RACCORD ADAPTATEUR

1шт.

32

4181-2599

ADAPTER;S ORS3/4-PF1/2

SERIAL: 1001-1020

2шт.

32

4181-2599

ADAPTER;S ORS3/4-PF1/2

SERIAL: 1021-1252

4шт.

32

4181-2599

ADAPTER;S ORS3/4-PF1/2

SERIAL: 1253

2шт.

33

2181-1126D21

ADAPTER;S PFO3/4-PFM1

desc: RACCORD ADAPTATEUR

2шт.

34

4181-2600

ADAPTER A=78 ORS3/4-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

35

S0515053

BOLT M12X1.75X25

SERIAL: 1001-1020

2шт.

35

S0515053

BOLT M12X1.75X25

SERIAL: 1021-1252

6шт.

35

S0515053

BOLT M12X1.75X25

SERIAL: 1253

2шт.

36

2181-4133D5

ADAPTER;S PFO1-ORS3/4

desc: RACCORD ADAPTATEUR

1шт.

37

2184-1036D265

HOSE PF3/8-1500L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1061D195

HOSE PF1/2-1500L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1089D39

HOSE (S-90)

desc: TUYAU FLEXIBLE

1шт.

40

S2215361

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

12шт.

41

S5110701

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

18шт.

42

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

43

2124-1030

PIPE;CLAMP

SERIAL: 1001-1154

1шт.

43

4124-1682

PIPE;CLAMP

SERIAL: 1155

1шт.

44

2181-1126D6

ADAPTER PF1/2-PF1/2

desc: RACCORD ADAPTATEUR

3шт.

45

2181-1126D7

ADAPTER;S PF3/8-PFO3/8

desc: RACCORD

2шт.

46

2180-1026D28

O-RING

desc: JOINT TORIQUE

3шт.

47

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

5шт.

48

2180-1026D23

O-RING SAE 1 1/4"

desc: JOINT TORIQUE

2шт.

49

S8030121

O-RING F12. 0.75"ORS

SERIAL: 1001-1020

4шт.

49

S8030121

O-RING F12. 0.75"ORS

SERIAL: 1021-1252

6шт.

49

S8030121

O-RING F12. 0.75"ORS

SERIAL: 1253

4шт.

50

S8010751

O-RING G75

desc: JOINT TORIQUE

1шт.

51

S0558153

BOLT M0X1.5X30

desc: BOULON A 6 PANS

2шт.

52

S8000181

O-RING P18. 1/2PF

SERIAL: 1001-1020

7шт.

52

S8000181

O-RING P18. 1/2PF

SERIAL: 1021-1252

9шт.

52

S8000181

O-RING P18. 1/2PF

SERIAL: 1253

7шт.

53

S8000141

O-RING P14. 3/8PF

desc: JOINT TORIQUE

3шт.

54

S8000111

O-RING P11. 1/4"PF

desc: JOINT TORIQUE

4шт.

55

S8000241

O-RING P24. 3/4"PF

desc: JOINT TORIQUE

3шт.

56

2180-1026D27

O-RING SAE 2"

desc: JOINT TORIQUE

2шт.

57

2184-1089D17

HOSE (S-90)PF1-1050L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1026D296

HOSE (S-S) PF1/2-1100L

SERIAL: 1001-1140

2шт.

58

2184-1026D280

HOSE PF1/2-800L

SERIAL: 1141

2шт.

59

2184-1197D71

HOSE PF3/4-1670L

SERIAL: 1001-1020

1шт.

60

2184-1061D243

HOSE PF1-1400L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1197D39

HOSE 1 3/16"-12UN-1250L

SERIAL: 1001-1275

1шт.

61

2184-1197D118

HOSE 1 3/16"-12UN-1370L

SERIAL: 1276

1шт.

62

4184-1269

HOSE PF1-700L

SERIAL: 1001-1154

1шт.

62

4184-1310

HOSE PF1-1000L

SERIAL: 1155-1230

1шт.

62

4184-1310A

HOSE PF1-1000L

SERIAL: 1231

1шт.

63

2184-1036D74

HOSE PF1/2-610L

SERIAL: 1001-1275

2шт.

63

2184-1036D76

HOSE PF1/2-800L

SERIAL: 1276

2шт.

64

2184-1098D57

HOSE PF1 1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1098D58

HOSE PF1 1/2-1055L

desc: TUYAU FLEXIBLE

1шт.

66

2181-1950D1

PLUG PF1/4

desc: BOUCHON

2шт.

67

S2215461

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

4шт.

68

4161-2413

PLATE;RUBBER

SERIAL: 1016

2шт.

69

2203-1699A

MUFFLER;HYD

SERIAL: 1021-1252

1шт.

70

2184-1197D28

HOSE 1 3/16"-12UN-700L

SERIAL: 1021-1252

1шт.

71

2184-1197D56

HOSE 1 3/16"-12UN-1200L

SERIAL: 1021-1110

1шт.

71

2184-1197D12

HOSE 1 3/16"-12UN-1200L

SERIAL: 1111-1252

1шт.

72

S5010713

WASHER;PLAIN

SERIAL: 1021-1252

4шт.

73

4412-1092

PLATE

SERIAL: 1021-1066

1шт.

73

4412-1092A

PLATE

SERIAL: 1067-1252

1шт.

74

4161-2488

RUBBER

SERIAL: 1155

1шт.

75

2184-1197D71

HOSE 1670L

SERIAL: 1253

1шт.
