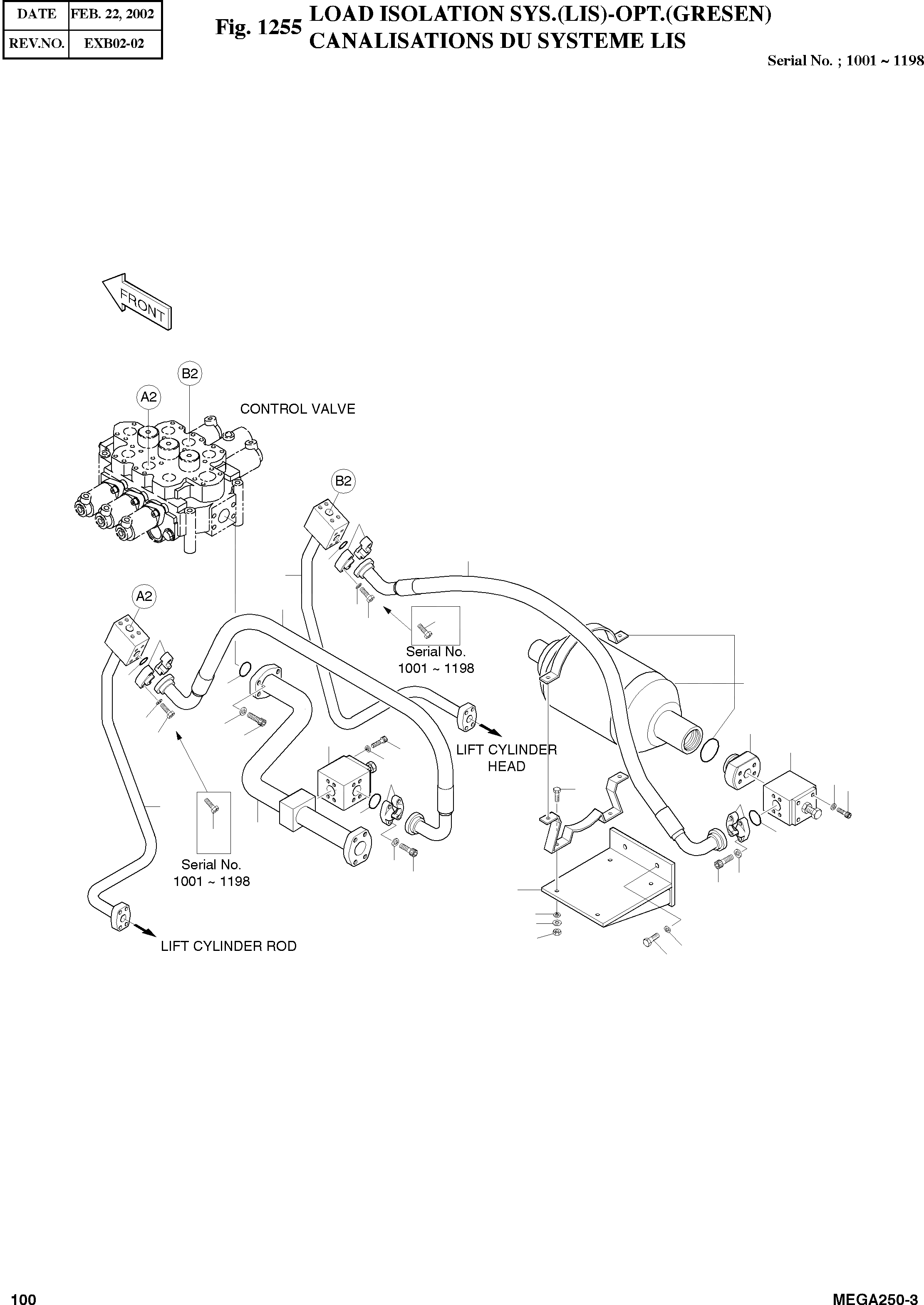

Запчасти Doosan Daewoo LOAD ISOLATION SYS.(LIS)-OPT.(GRESEN) BODY PARTS

-

4400-1827F1

LIS PIPING(OPT)

SERIAL: 1001-1198

1

4420-9446B

SOLENOID VALVE

SERIAL: 1001-1068

2шт.

1

4420-9446BP

SOLENOID VALVE

SERIAL: 1069

2шт.

3

4195-4873

SUPPORT

desc: SUPPORT

1шт.

4

4182-1619

PIPE;RETURN 2 SPOOL

SERIAL: 1001-1068

1шт.

4

4182-1619A

PIPE;RETURN 2 SPOOL

SERIAL: 1069

1шт.

5

4182-1620

PIPE;UP

SERIAL: 1001-1198

1шт.

5

4182-1620A

PIPE;UP

SERIAL: 1199

1шт.

6

4182-1621

PIPE;DOWN

SERIAL: 1001-1198

1шт.

6

4182-1621A

PIPE;DOWN

SERIAL: 1199

1шт.

7

2184-1124D99

HOSE 1150L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1094D49

HOSE 1200L

desc: TUYAU FLEXIBLE

1шт.

9

4181-2689

ADAPTER ACC. M50X1.5

desc: RACCORD ADAPTATEUR

1шт.

10

S5010513

WASHER;PLAIN

desc: RONDELLE M8

4шт.

11

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

4шт.

12

S4012533

NUT M8X1.25

desc: ECROU

4шт.

13

2181-9078

FLANGE;HALF SAE1"

desc: FLASQUE EN DEUX PARTIES

4шт.

14

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

15

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1198

8шт.

15

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1199

24шт.

16

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE M20

28шт.

17

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

18

2181-9079

FLANGE;HALF SAE0.75"

desc: FLASQUE EN DEUX PARTIES

4шт.

19

S2214261

BOLT;SOCKET M10X1.5X130

desc: BOULON 6 PANS CREUX

8шт.

20

S2212461

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6 PANS CREUX

4шт.

21

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

22

S2262261

BOLT;SOCKET M10X1.25X40

SERIAL: 1001-1198

16шт.

23

2180-1026D3

O-RING

desc: JOINT TORIQUE

1шт.

25

4460-9038

ACCUMULATOR KIT

desc: RESERVOIR

1шт.

29

S0515153

BOLT M12X1.75X28

desc: BOULON A 6 PANS

4шт.

30

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

4шт.
