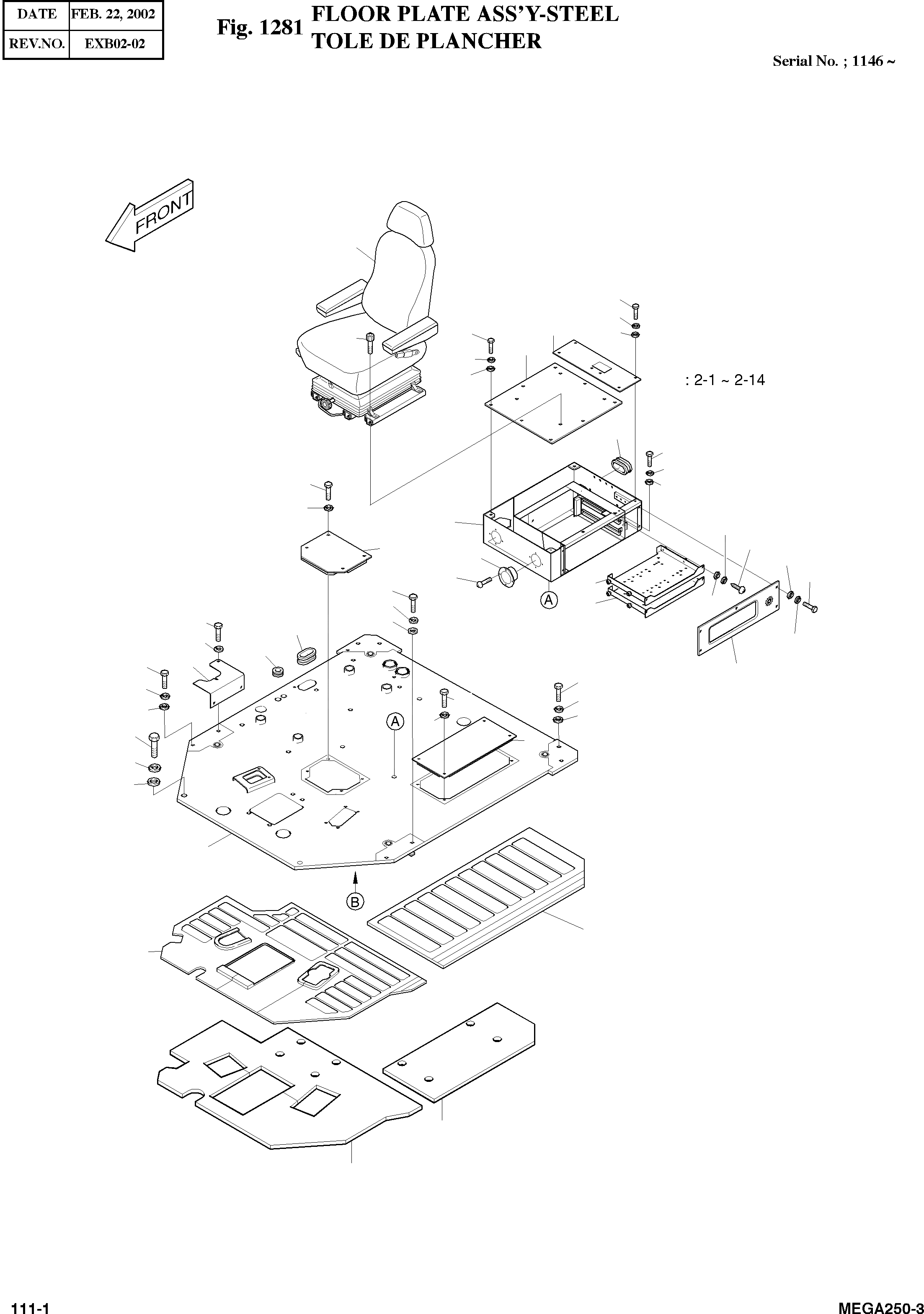

Запчасти Doosan Daewoo FLOOR PLATE ASSY-STEEL BODY PARTS

-

4197-2073F2E

CONTROL STAND ASS'Y

SERIAL: 1146-1167

-

4197-2073F2G

CONTROL STAND ASS'Y

SERIAL: 1168-1305

-

4197-2073F2J

CONTROL STAND ASS'Y

SERIAL: 1306

1

2901-9026

SEAT

SERIAL: 1146-1167

1шт.

1

4901-9036

SEAT

SERIAL: 1168

1шт.

2

4512-1106C

ELECTRIC BOX ASS'Y

SERIAL: 1146-1305

1шт.

2

4512-1106E

ELECTRIC BOX ASS'Y

SERIAL: 1306

1шт.

2-1

4512-1105C

ELECTRIC BOX

desc: . ENSEMBLE ELECTRICITE

1шт.

2-2

4621-2861B

COVER

desc: . COUVERCLE

1шт.

2-3

4621-2862A

COVER

desc: . COUVERCLE

1шт.

2-4

4621-2863A

COVER

desc: . COUVERCLE

1шт.

2-5

4621-2860A

PLATE

SERIAL: 1146-1305

1шт.

2-5

4621-2860B

PLATE

SERIAL: 1306

1шт.

2-6

4621-2859A

PLATE

SERIAL: 1146-1305

1шт.

2-6

4621-2859B

PLATE

SERIAL: 1306

1шт.

2-7

S0512053

BOLT M10X1.5X25

desc: . BOULON A 6 PANS

6шт.

2-8

S5010613

WASHER;PLAIN M10

desc: . RONDELLE

6шт.

2-9

S5102603

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE M10

6шт.

2-10

S0504553

BOLT M6X1.0X14

desc: . BOULON A 6 PANS

9шт.

2-11

S5010313

WASHER;PLAIN M6

desc: . RONDELLE

13шт.

2-12

S5102303

WASHER;SPRING M6

desc: . RONDELLE ELASTIQUE M6

13шт.

2-13

S3450973

SCREW M6X1.0X16

desc: . VIS M6X1.0X20

4шт.

2-14

2161-1744

BUSHING;RUBBER

desc: . CAOUTCHOUC

1шт.

9

4621-2907B

COVER

desc: COUVERCLE

1шт.

15

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

12шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

23

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

4шт.

25

S5010713

WASHER;PLAIN M12

desc: RONDELLE

4шт.

29

S0504853

BOLT M6X1.0X20

desc: BOULON A 6 PANS

4шт.

35

4191-3439G

FLOOR PLATE

desc: TAPIS DE SOL

1шт.

37

4621-2900B

COVER

desc: COUVERCLE

1шт.

38

4621-2901C

COVER

desc: COUVERCLE

1шт.

39

4161-2278A

N.V.R FOAM

desc: EPONGE

1шт.

40

2114-1961D3

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE M20

8шт.

41

2114-1961D4

WASHER;PLAIN M20

desc: RONDELLE

8шт.

42

2120-2208D4

BOLT M20X2.5X60

desc: BOULON A 6 PANS

6шт.

43

2120-2208D7

BOLT M20X2.5X55

desc: BOULON A 6 PANS

2шт.

44

S0558253

BOLT M10X1.5X35

desc: BOULON A 6 PANS

2шт.

45

S5010613

WASHER;PLAIN M10

desc: RONDELLE

2шт.

46

2160-1238

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

1шт.

47

2160-1004D45

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

50

4161-2009B

MAT;FLOOR

desc: TAPIS DE SOL

1шт.

51

4161-2008B

MAT;FLOOR

desc: TAPIS DE SOL

1шт.

53

S3460363

SCREW M3X0.5X10

desc: VIS

8шт.

74

4161-2335

FOAM

desc: EPONGE

1шт.

75

2415-9007

NOZZLE;AIR

desc: INJECTEUR

2шт.

76

S2208761

BOLT;SOCKET M8X1.25X18

desc: BOULON A 6 PANS CREUX

4шт.

78

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

8шт.
