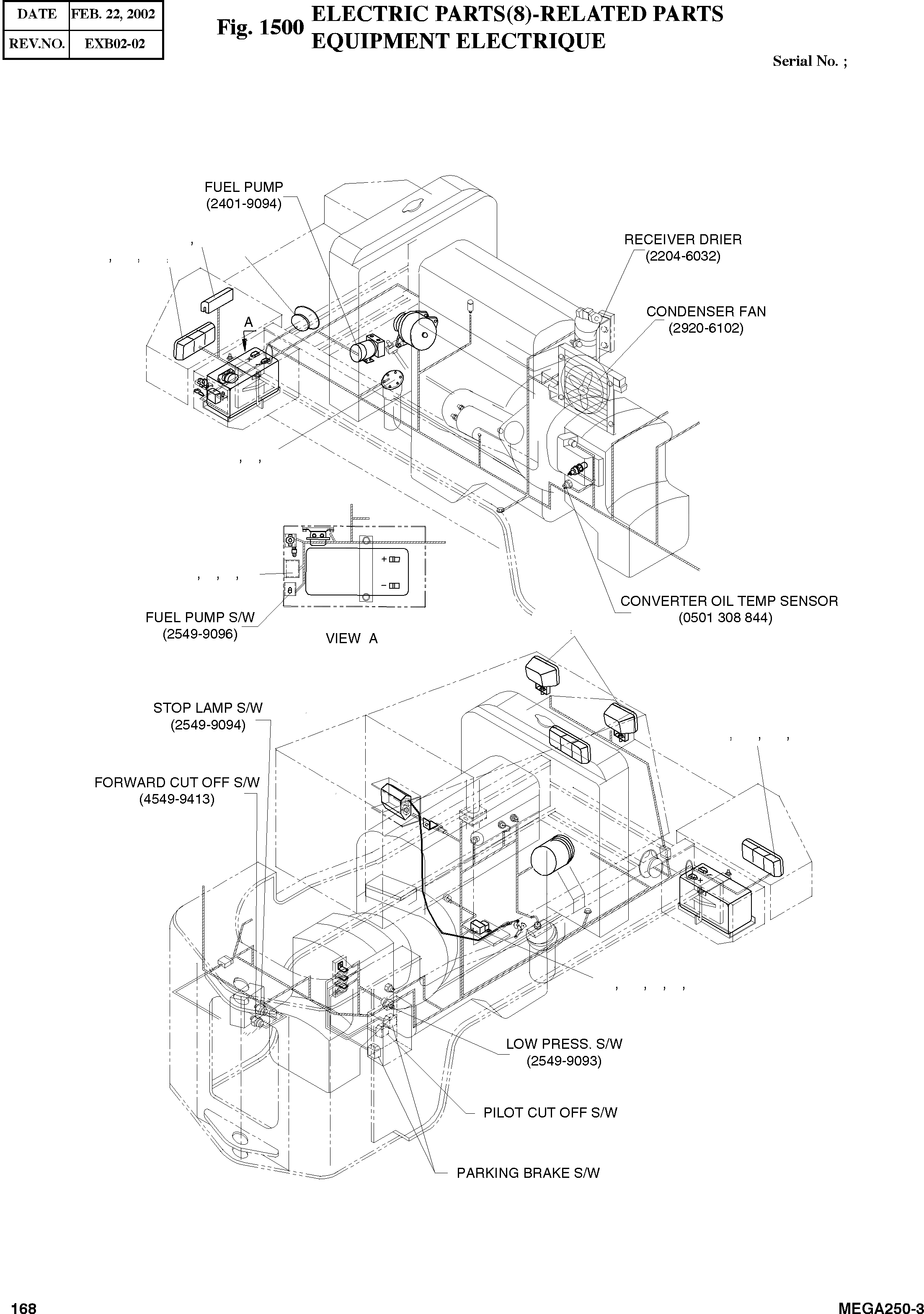

Запчасти Doosan Daewoo ELECTRIC PARTS(8)-RELATED PARTS BODY PARTS

-

4500-1182

ELECTRIC PARTS

SC: D

25

2534-9049B

LAMP;WORKING(REAR) 24V 55W

SERIAL: 1001-1305

2шт.

25

2534-9049C

LAMP;WORKING(REAR) 24V 70W

SERIAL: 1306

2шт.

25A

2515-1016D3

BULB;HALOGEN 24V 55W

SERIAL: 1001-1305

1шт.

25A

2515-1016D4

BULB;HALOGEN 24V 70W

SERIAL: 1306

1шт.

29

2534-1132

LAMP;REAR COMBI

desc: LAMPE

2шт.

29A

S866220H

BULB(STOP/CLEARANCE) 24V 25/10W

desc: . LAMPE

1шт.

29B

S864225H

BULB(TURN SIGNAL) 24V 25W

desc: . LAMPE 24V 25W

1шт.

29C

S864225H

BULB(BACK UP) 24V 25W

desc: . LAMPE 24V 25W

1шт.

30

2534-1056

LAMP;LICENCE 24V 3WX2

desc: ECLAIRAGE PLAQUE MINERALOGIQUE

1шт.

30A

S860203H

BULB 24V 3W

desc: . LAMPE

2шт.

38

2544-9015

RELAY;PREHEAT

SERIAL: 1001-1168

1шт.

38

2544-6020

RELAY;PREHEAT

SERIAL: 1169

1шт.

38A

2527-6001

FUSE;LINK 127A

desc: . FUSIBLE(127A)

1шт.

39

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

40

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

41

S4012333

NUT M6X1.0

desc: ECROU M6X1.0

2шт.

42

2544-1009A

RELAY;STARTER

SERIAL: 1001-1106

1шт.

42

2544-1022

RELAY;STARTER

SERIAL: 1107

1шт.

43

S0504453

BOLT M6X1.0X12

SERIAL: 1001-1106

4шт.

43

S0504453

BOLT M6X1.0X12

SERIAL: 1107

2шт.

44

S5102303

WASHER;SPRING M6

SERIAL: 1001-1106

4шт.

44

S5102303

WASHER;SPRING M8

SERIAL: 1107

2шт.

45

4403-1067

COVER;RELAY

SERIAL: 1001-1106

1шт.

46

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

6шт.

47

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

6шт.

52

4516-1108

BUZZER;BACK

desc: VIBREUR

1шт.

54

4547-9023A

SENSOR;FUEL

desc: CAPTEUR

1шт.
