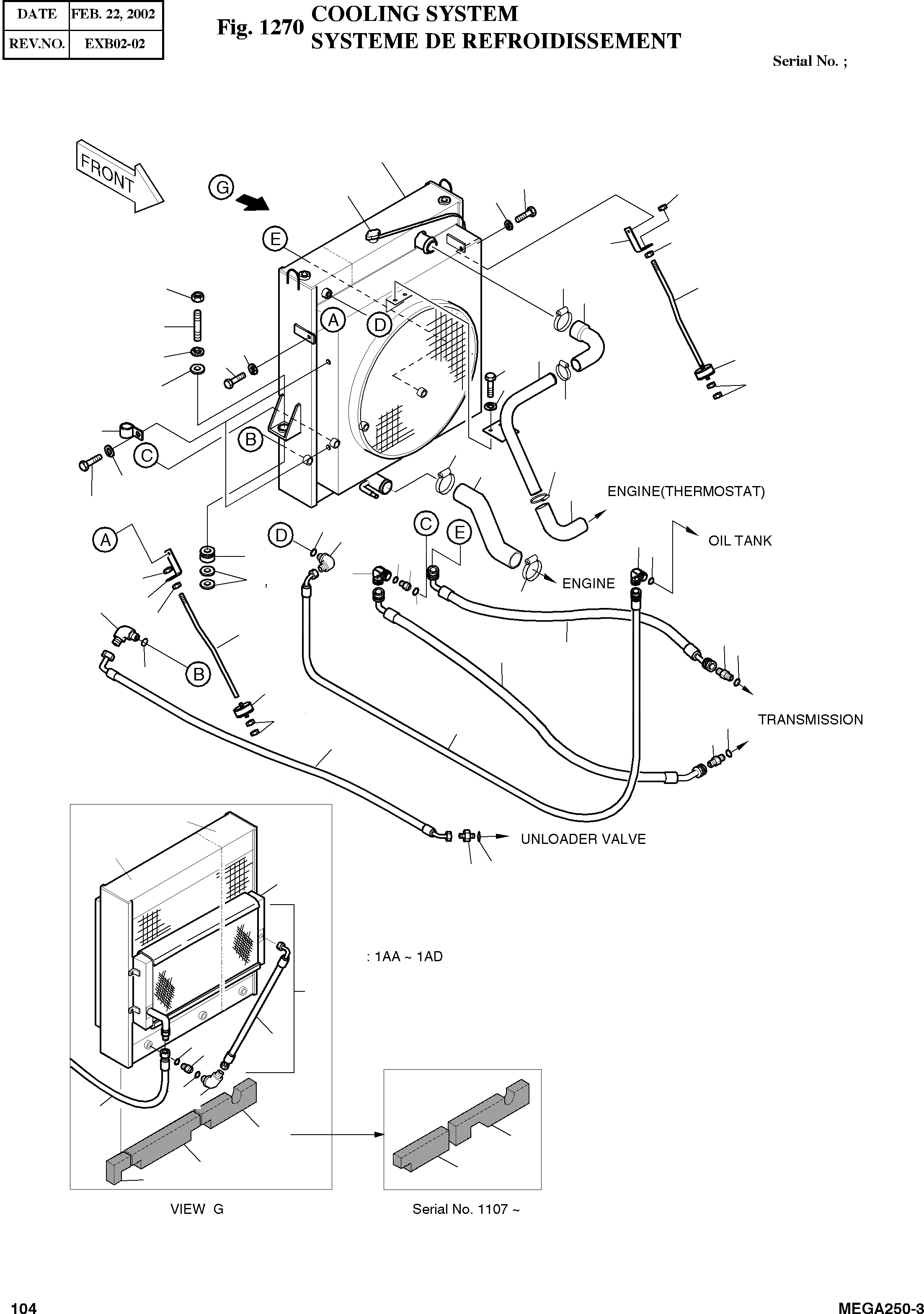

Запчасти Doosan Daewoo COOLING SYSTEM BODY PARTS

-

4202-1015

COOLER PIPING

SC: D

1

4202-1022

RADIATOR ASS'Y

SERIAL: 1001-1015

1шт.

1

4202-1022A

RADIATOR ASS'Y

SERIAL: 1016-1100

1шт.

1

4202-1022B

RADIATOR ASS'Y

SERIAL: 1101

1шт.

1A

4202-9062A

RADIATOR ASS'Y

SERIAL: 1001-1015

1шт.

1A

4202-9062B

RADIATOR ASS'Y

SERIAL: 1016-1100

1шт.

1A

4202-9062C

RADIATOR ASS'Y

SERIAL: 1101

1шт.

1AA

4202-6115

OIL COOLER;TRANSMISSION

desc: .. RADIATEUR D'HUILE

1шт.

1AB

20600541

RADIATOR

desc: .. RADIATEUR

1шт.

1AC

21800711

OIL COOLER;HYD

desc: .. REFRIGERATION

1шт.

1AD

12101640

CAP

desc: .. CAP

1шт.

1B

S8000241

O-RING

desc: . JOINT TORIQUE

2шт.

1C

2181-2337D7

REDUCER

desc: . RACCORD

1шт.

1D

2181-1702D1

ELBOW PF3/4-PF3/4

desc: . RACCORD

1шт.

2

2184-4007

HOSE;WATER

SERIAL: 1001-1191

1шт.

2

185-00003

HOSE;WATER

SERIAL: 1192

1шт.

3

4184-1265

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

4

4182-1578A

PIPE;WATER

desc: CONDUITE

1шт.

5

4184-1266A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

6

S8450053

CLAMP;HOSE

desc: COLLIER

3шт.

7

S8450044

CLAMP;HOSE

desc: COLLIER

3шт.

8

2184-1096D107

HOSE 1910L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1076D89

HOSE 1880L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1076D72

HOSE (90ўЄ-45ўЄ)PF3/4-2370L

SERIAL: 1001-1015

1шт.

10

2184-1076D97

HOSE (90ўЄ-45ўЄ)PF3/4-2470L

SERIAL: 1016

1шт.

11

2181-1702D7

ELBOW;S

desc: COUDE

1шт.

12

2181-1126D1

ADAPTER;S

desc: RACCORD

1шт.

13

2181-1917D35

ADAPTER;S M30X1.5-PF1

desc: RACCORD ADAPTATEUR

1шт.

14

S8180481

SEAL;RING

desc: RONDELLE D'ETANCHEITE

2шт.

15

2184-1036D302

HOSE PF3/4-3045L

desc: TUYAU FLEXIBLE

1шт.

16

2181-1702D1

ELBOW;S PFO3/4XPF3/4

desc: RACCORD

3шт.

17

2181-1917D50

ADAPTER;S M30X1.5-PF1

desc: RACCORD ADAPTATEUR

1шт.

18

S8000241

O-RING 3/4PF

desc: JOINT TORIQUE

6шт.

19

4161-9407

MOUNT;RUBBER

desc: CAOUTCHOUC

2шт.

20

2114-1058D25

WASHER 6T

desc: RONDELLE

2шт.

21

2114-1059D218

SHIM 1.0T

SERIAL: 1001-1015

8шт.

21

2114-1059D231

SHIM 1.0T

SERIAL: 1016

8шт.

22

2114-1059D217

SHIM 2.0T

SERIAL: 1001-1015

4шт.

22

2114-1059D230

SHIM 2.0T

SERIAL: 1016

4шт.

23

4120-1491A

BOLT;STUD M12X1.75X80

SERIAL: 1001-1191

2шт.

23

4120-1491B

BOLT;STUD M12X1.75X80

SERIAL: 1192

2шт.

24

S5102703

WASHER;SPRING Ґх12

desc: RONDELLE ELASTIQUE M12

2шт.

25

S4012703

NUT M12X1.75

desc: ECROU

2шт.

26

3079781M1

MOUNT;RUBBER

desc: ENSEMBLE SUPPORT DE MONTAGE

2шт.

27

4145-4032A

STAY;RADIATOR

desc: ENTRETOISE

2шт.

28

4197-1436

BRACKET(L.H.)

desc: SUPPORT

1шт.

29

4121-1254D4

NUT M10X1.5

desc: ECROU M10x1.5

2шт.

30

S4012933

NUT M16X2.0

desc: ECROU

4шт.

31

S0514853

BOLT M12X1.25X20

desc: BOULON A 6 PANS

2шт.

32

2124-1353D7

CLIP Ґх31/M10

desc: CLIP

2шт.

33

S0711253

BOLT M10X1.25X14

desc: BOULON A 6 PANS

2шт.

34

S5102603

WASHER;SPRING Ґх10

desc: RONDELLE ELASTIQUE M10

2шт.

35

4197-1438

BRACKET(R.H.)

desc: SUPPORT

1шт.

36

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.

37

4161-2279

POLYURETHANE FOAM

SERIAL: 1001-1106

1шт.

38

4161-2280

POLYURETHANE FOAM

SERIAL: 1001-1106

1шт.

38

4161-2280A

POLYURETHANE FOAM

SERIAL: 1107

1шт.

39

4161-2281

POLYURETHANE FOAM

SERIAL: 1001-1106

1шт.

39

4161-2281A

POLYURETHANE FOAM

SERIAL: 1107

1шт.

40

2184-1036D73

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

1шт.

41

2181-2337D7

REDUCER PFO3/4-PF3/4

desc: RACCORD

1шт.
