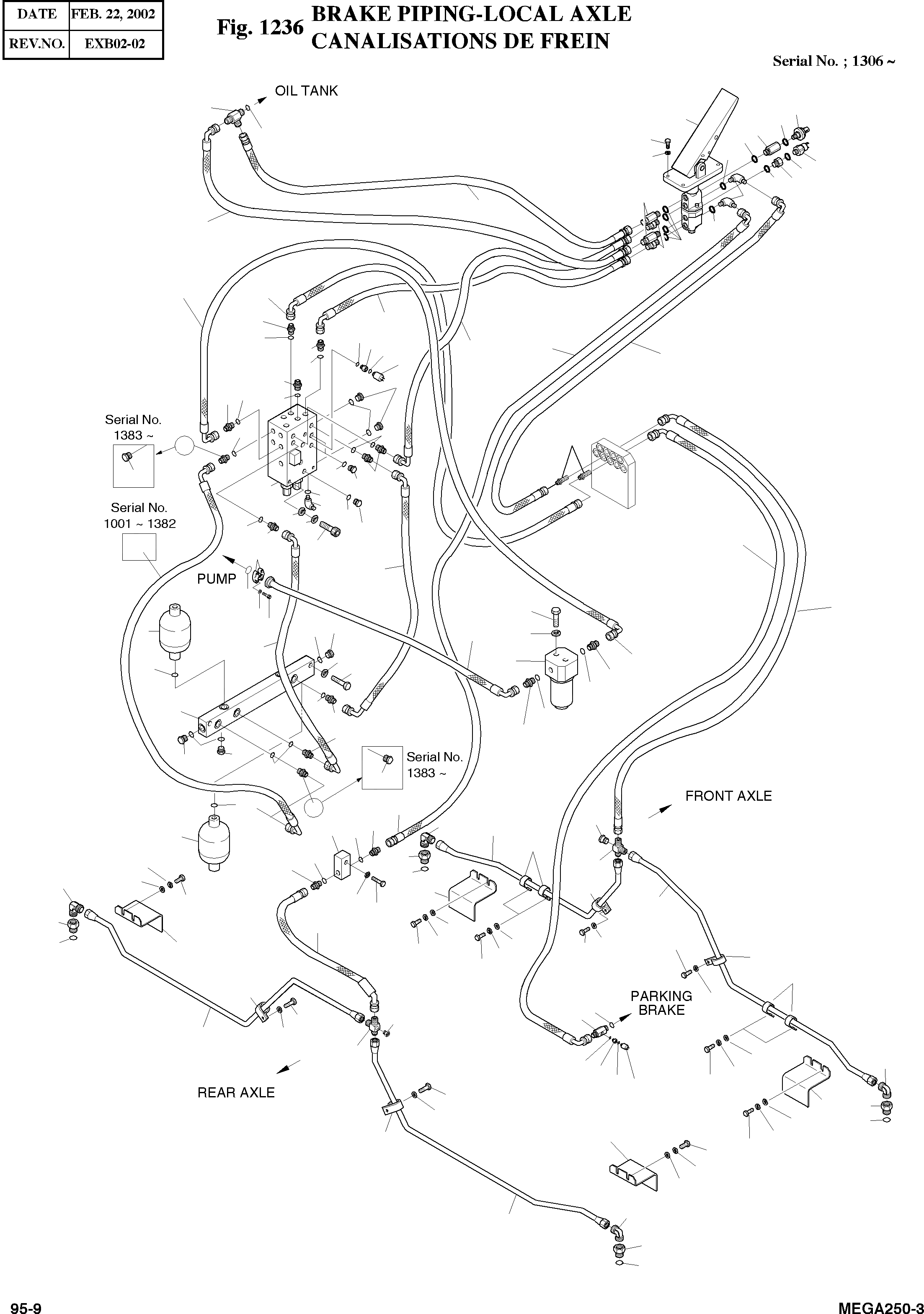

Запчасти Doosan Daewoo BRAKE PIPING-LOCAL AXLE BODY PARTS

-

400-00248

BRAKE PIPING-LOCAL AXLE

SC: D

1

420-00073

BRAKE;FOOT-VWP

desc: VANNE DE FREIN

1шт.

2

4420-9566

BRAKE & PILOT SUPPLY VALVE

desc: ENSEMBLE DE FREIN

1шт.

3

4474-9061

PILOT;FILTER

desc: FILTRE

1шт.

3A

00179

O-RING

desc: . JOINT TORIQUE

1шт.

3B

00552

RING;BAXK UP

desc: . BAGUE DE SOUTIEN

1шт.

4

2460-9055

ACCUMULATOR

SERIAL: 1306-1382

2шт.

4

460-00015

ACCUMULATOR

SERIAL: 1383

2шт.

5

4549-9080

SWITCH;T/M DISCONNECT

desc: INTERRUPTEUR

1шт.

6

2549-9094

SWITCH;STOP

desc: INTERRUPTEUR

1шт.

7

2549-9093

SWITCH;L.P.W.S

desc: MANOSTAT

2шт.

8

2181-2180

ADAPTER PF1/4-PFO1/4

desc: RACCORD ADAPTATEUR

2шт.

9

2181-1702D55

ELBOW PF3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

10

2181-1950D2

PLUG PFO3/8

SERIAL: 1306-1382

7шт.

10

2181-1950D2

PLUG PFO3/8

SERIAL: 1383

9шт.

11

2181-1126D7

ADAPTER;S PF3/8-PFO3/8

SERIAL: 1306-1382

12шт.

11

2181-1126D7

ADAPTER;S PF3/8-PFO3/8

SERIAL: 1383

11шт.

12

2181-1126D27

ADAPTER;LONG PF3/8-PFO3/8

SERIAL: 1306-1382

4шт.

12

2181-1126D27

ADAPTER;LONG PF3/8-PFO3/8

SERIAL: 1383

3шт.

13

2181-1126D6

ADAPTER PF1/2-PFO1/2

desc: RACCORD ADAPTATEUR

1шт.

15

2181-2337D13

REDUCER PF3/8-PF1/4

desc: REDUCEUR

1шт.

16

2181-1917D19

ADAPTER PF1/2-PF1/2

desc: RACCORD

2шт.

18

2184-1076D114

HOSE PF3/8-1560L

SERIAL: 1306-1362

1шт.

18

2184-1076D113

HOSE PF3/8-1400L

SERIAL: 1363

1шт.

19

4197-2400

BRACKET

desc: SUPPORT

4шт.

20

S8040041

O-RING

desc: JOINT TORIQUE

1шт.

21

2181-9079

FLANGE;SPLIT 3/4-3000psi

desc: FLASQUE EN DEUX PARTIES

2шт.

22

S8000181

O-RING PF1/2 P18

desc: JOINT TORIQUE

1шт.

23

4181-2188

TEE PF3/8-2-M16X1.5

desc: TE

1шт.

24

S8000141

O-RING PF3/8 P14

desc: JOINT TORIQUE

30шт.

25

S8000111

O-RING PF1/4 P11

desc: JOINT TORIQUE

5шт.

26

2124-1509D9

CLAMP

desc: ATTACHE DE TUBE

8шт.

27

S8180211

SEAL;RING

desc: RONDELLE

1шт.

28

S8180251

PACKING

desc: RONDELLE D'ETANCHEITE

8шт.

29

2180-1026D2

O-RING SAE3/4

desc: JOINT TORIQUE

1шт.

30

S2215861

BOLT;SOCKET M12X1.75X60

desc: BOULON A 6 PANS

3шт.

31

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

32

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

4шт.

33

S2209261

BOLT;SOCKET M8X1.25X30

desc: BOULON A 6 PANS CREUX

4шт.

34

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLAQUE

16шт.

35

S2213661

BOLT;SOCKET M10X1.5X90

desc: BOULON A 6 PANS

2шт.

37

2181-2503

REDUCER

desc: REDUCTEUR

1шт.

38

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

4шт.

43

4182-4014B

MANIFOLD PFO3/8X12

desc: COLLECTEUR

1шт.

44

4182-4015A

MANIFOLD PFO3/8X2

desc: COLLECTEUR

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

46

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

18шт.

47

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

3шт.

48

4181-2642

ADAPTER;S

desc: RACCORD

1шт.

51

2184-1096D13

HOSE PF1/2-1300L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1243D9

HOSE PF1/2-500L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1060D189

HOSE PF3/8-1810L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1096D15

HOSE PF3/8-650L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1096D20

HOSE PF3/8-700L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1076D1

HOSE PF3/8-700L

SERIAL: 1306-1382

1шт.

57

2184-1060D30

HOSE PF3/8-1350L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1036D40

HOSE PF3/8-1400L

desc: TUYAU FLEXIBLE

2шт.

59

2181-2047

PLUG M10X1.0

desc: BOUCHON

1шт.

60

2181-1913D3

REDUCER M16X1.5-PT1/4

desc: REDUCTEUR

4шт.

61

2184-1036D180

HOSE PF3/8-900L

desc: TUYAU FLEXIBLE

2шт.

62

2184-1026D319

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

63

2184-1036D268

HOSE PF3/8-1900L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1036D114

HOSE PF3/8-960L

desc: TUYAU FLEXIBLE

1шт.

65

S8180191

RING;SEAL

desc: RONDELLE D'ETANCHEITE

1шт.

66

2181-1918D1

ELBOW PT1/4-M16X1.5

desc: COUDE

4шт.

67

S5010613

WASHER;PLAIN M10

desc: RONDELLE

2шт.

68

120-00002

SCREW;COUPLING

desc: VIS D'ACCOUPLEMENT

1шт.

72

2184-1036D23

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.

73

2181-1951D16

TEE PF3/8-PF3/8-PF3/8

desc: TE

1шт.

74

S0508453

BOLT M8X1.25X12

desc: BOULON A 6 PANS

4шт.

76

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

77

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

78

S0512053

BOLT M10X1.5X25

desc: BOULON

2шт.

79

S8180321

RING;SEAL

desc: RONDELLE D'ETANCHEITE

2шт.

80

S8180221

SEAL;COPPER

desc: RONDELLE D'ETANCHEITE

2шт.

82

4182-1804

PIPE;REAR(L.H.)

desc: CONDUITE

1шт.

83

4182-1805

PIPE;REAR(R.H.)

desc: CONDUITE

1шт.

84

4182-1787

PIPE;FRONT(R.H.)

desc: CONDUITE

1шт.

85

4182-1788

PIPE;FRONT(L.H.)

desc: CONDUITE

1шт.

86

S0511753

BOLT M10X1.5X18

desc: BOULON A 6 PANS

8шт.

87

4181-2811

TEE

desc: TE

1шт.

88

2181-2718

ADAPTER PFO3/8

desc: RACCORD ADAPTATEUR

2шт.
