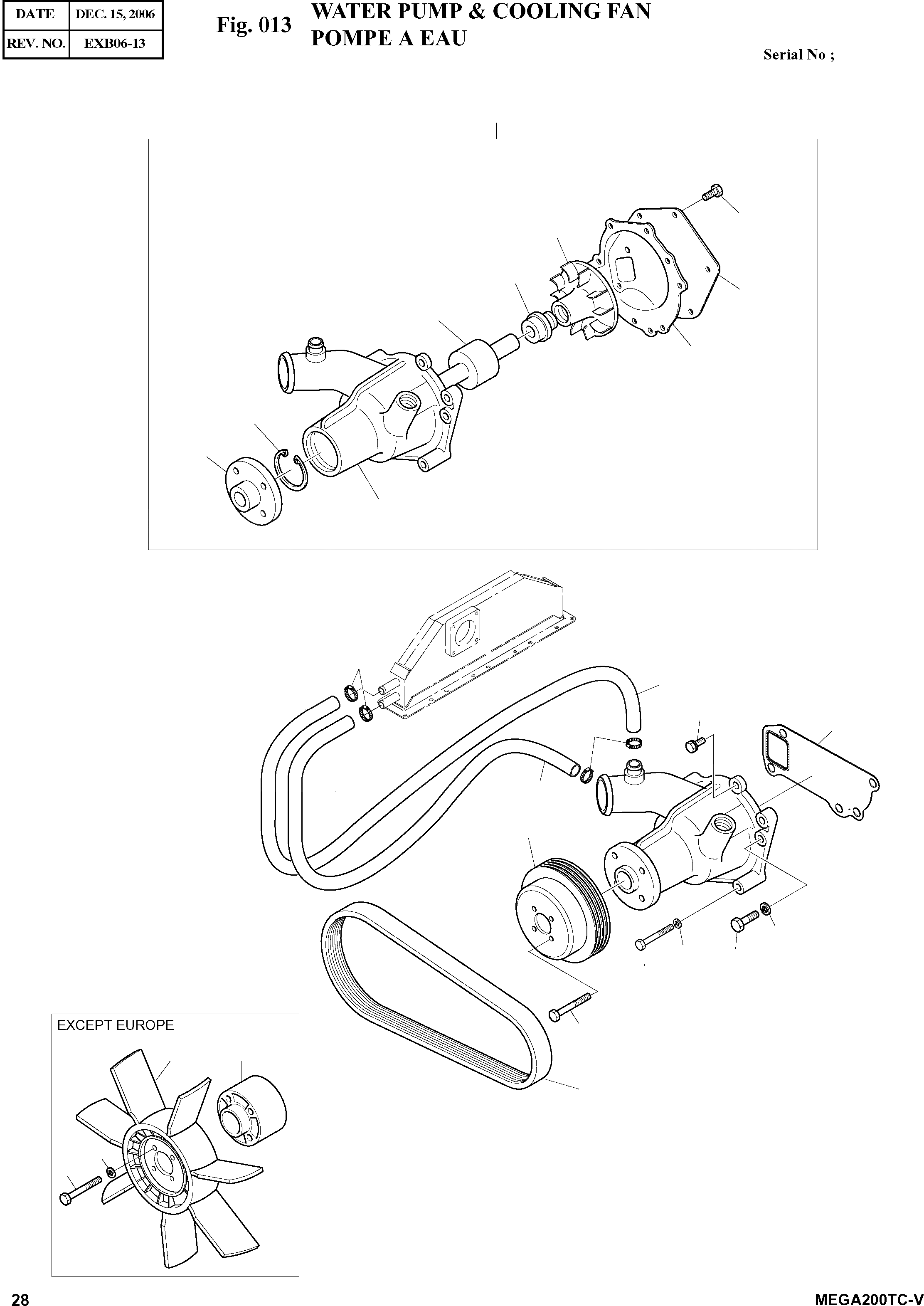

Запчасти Doosan Daewoo WATER PUMP & COOLING FAN ENGINE PARTS

101

65.06500-6402A

WATER PUMP ASS'Y

SERIAL: 030507

1шт.

101

65.06500-6402B

WATER PUMP ASS'Y

SERIAL: 030508

1шт.

102

65.06501-0217A

HOUSING

SC: D

1шт.

103

65.06520-6007

SEAL;MECHANICAL

desc: . JOINT

1шт.

104

65.93410-0027

BEARING

desc: . PALIER

1шт.

105

06.29020-0132

RING;SNAP

desc: . BAGUE

1шт.

106

65.06504-0033

HUB;V-BELT PULLEY

desc: . MOYEU

1шт.

107

65.06506-0085A

IMPELLER

desc: . TURBINE

1шт.

108

65.06512-0016

COVER

desc: . COUVERCLE

1шт.

109

65.06901-0035

GASKET

SERIAL: 030507

1шт.

109

65.06901-0035A

GASKET

SERIAL: 030508

1шт.

110

06.04200-9009

SCREW;CROSS M8X20

desc: . VIS

3шт.

112

06.01493-4215

BOLT M10X1.25X80

desc: BOULON A 6 PANS

1шт.

113

06.01493-4212

BOLT M10X1.25X65

desc: BOULON A 6 PANS

2шт.

114

06.01943-3218

BOLT ASS'Y M10X1.25X35

desc: BOULON A 6 PANS

1шт.

115

06.16731-2108

WASHER;SPRING

desc: RONDELLE

3шт.

116

65.06606-0054

PULLEY;FAN(EXCEPT EUROPE)

desc: POLLEY

1шт.

116

65.06606-0039

PULLEY;FAN

desc: POLLEY

1шт.

117

65.06901B0002

GASKET

desc: JOINT

1шт.

118

65.96301-0312

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

120

06.67020-0104

CLAMP;HOSE

desc: COLLIER

4шт.

124

65.96301-0311

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

201

65.06601-5063

FAN;COOLING(EXCEPT EUROPE)

desc: VENTILATEUR

1шт.

202

65.06611-0097A

FLANGE;FAN(EXCEPT EUROPE)

desc: FLASQUE

1шт.

203

06.01913-3111

BOLT; M8X16

desc: BOULON A 6 PANS

4шт.

203

06.01013-9124

BOLT; M8X95(EXCEPT EUROPE)

desc: BOULON A 6 PANS

4шт.

204

06.16731-2107

WASHER;SPRING(EXCEPT EUROPE)

desc: RONDELLE ELASTIQUE

4шт.

209

65.96801-0124

BELT

SERIAL: 040205

1шт.

209

65.96801-0124A

BELT

SERIAL: 040206

1шт.
