Запчасти Doosan Daewoo REMOTE PRESSURE CHECK PIPING BODY PARTS

-

400-00645

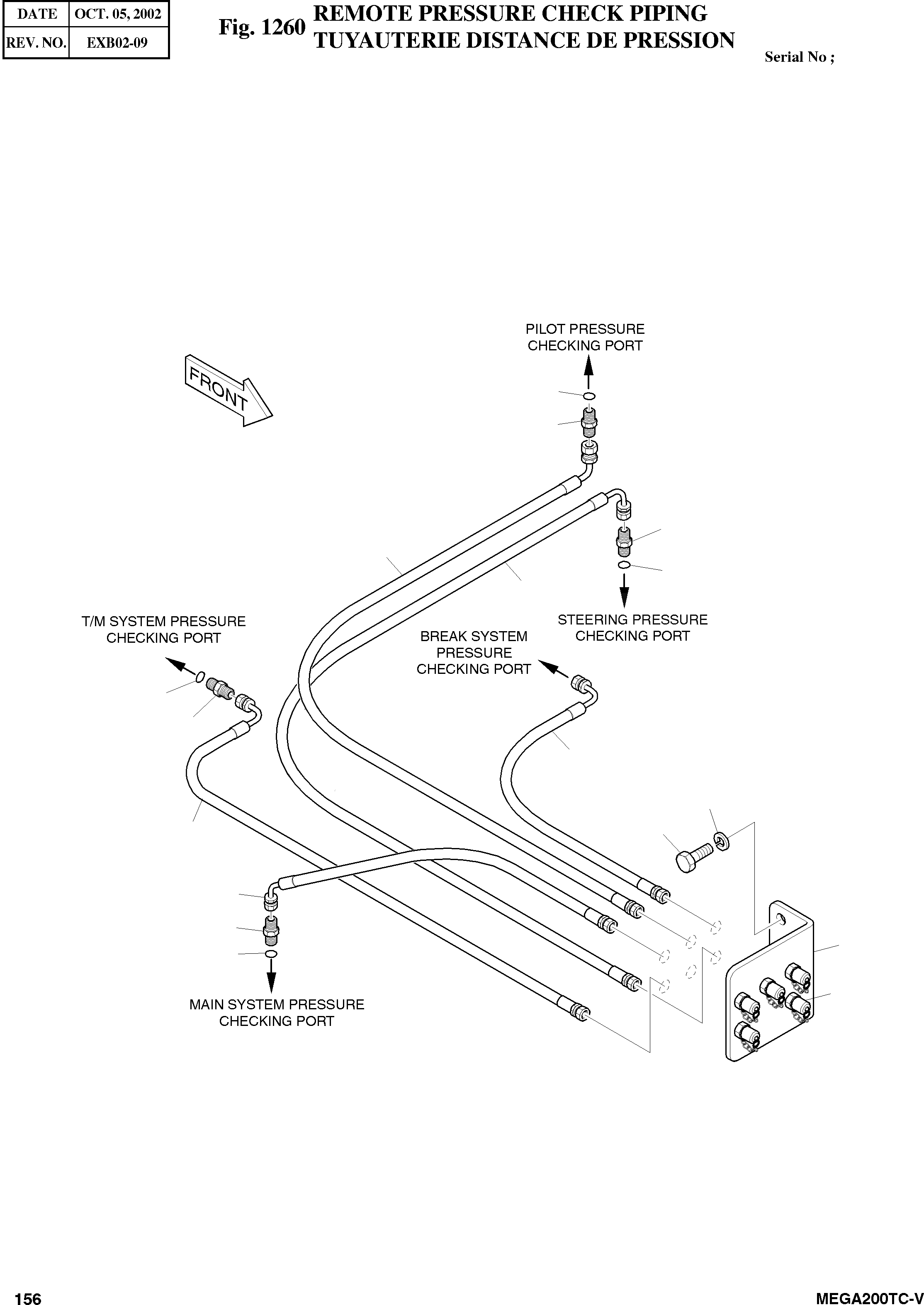

REMOTE PRESSURE CHECK PIPING

SC: D

-2шт.

1

284-00008A

CHECK PORTS ASS'Y

desc: CHECK

1шт.

1A

120-00003

SCREW;COUPLING

desc: . VIS

5шт.

2

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

4

2184-1060D134

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1036D59

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1036D167

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1036D20

HOSE PF1/4-840L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1036D325

HOSE PF1/4-1040L

desc: TUYAU FLEXIBLE

1шт.

9

181-00372A

ADAPTER M10X1.0-PF1/4

desc: ADAPTEUR

1шт.

10

180-00408

O-RING

desc: JONT TORIQUE

1шт.

11

2181-1126D14

ADAPTER PF01/4-PF1/4

desc: ADAPTEUR

3шт.

12

S8000111

O-RING

desc: JONT TORIQUE

3шт.
