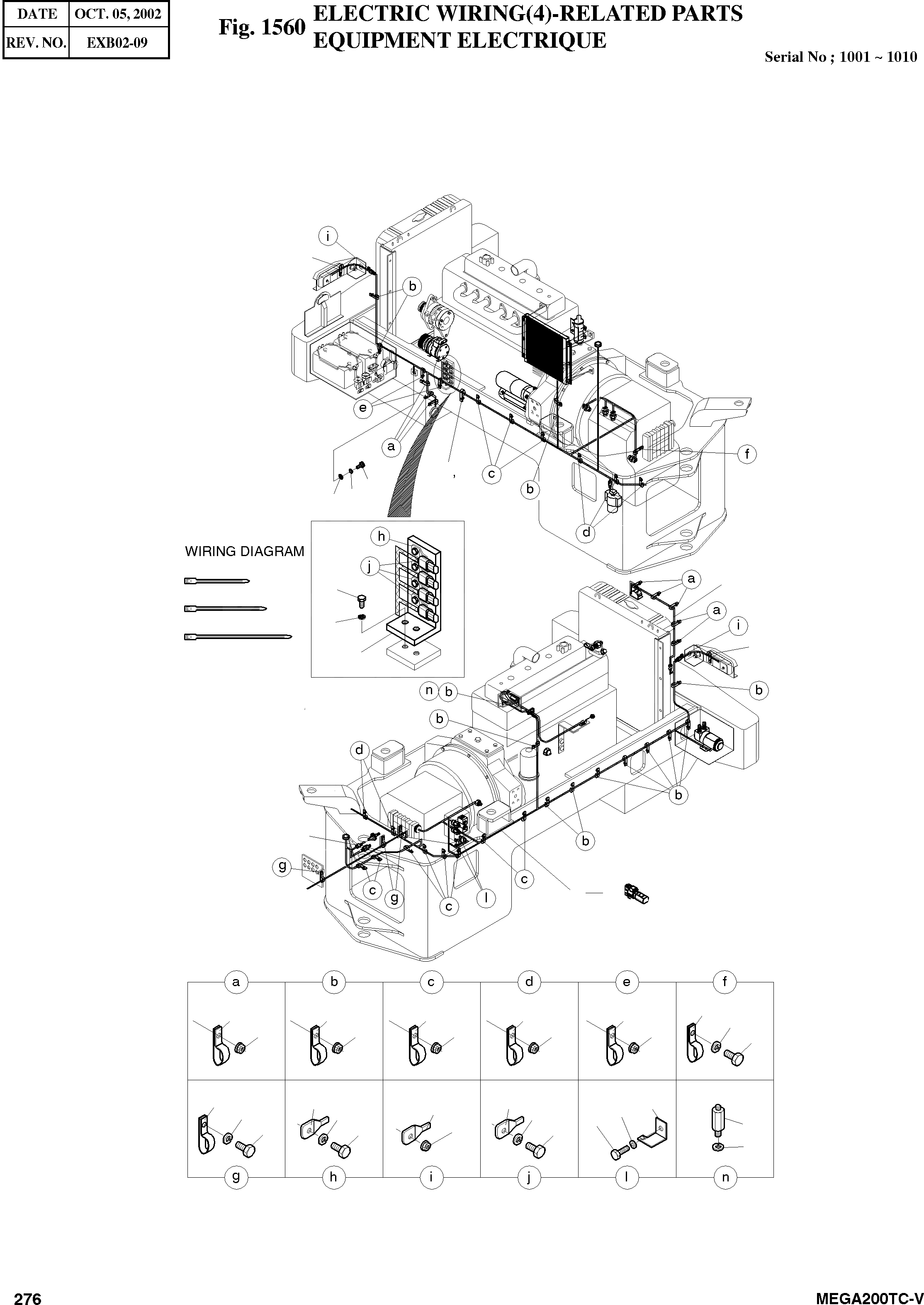

Запчасти Doosan Daewoo ELECTRIC WIRING(4)-RELATED PARTS BODY PARTS

-

500-00168

ELECTRIC PARTS

SERIAL: 1001-1010

-2шт.

1

599-00026

WIRING DIAGRAM

desc: DIAGRAMME DE CBLAGE

1шт.

2

530-00176E

HARNESS;MAIN

desc: FAISCEAU

1шт.

2A

2548-1027

DIODE

desc: . DIODE

9шт.

6

4530-1758A

HARNESS;BACK BUZZER

desc: FAISCEAU

1шт.

7

530-00067

HARNESS;STOP LAMP

desc: FAISCEAU

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6PANS

1шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

19

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

2шт.

21

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

2шт.

22

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

23

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

2шт.

24

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

3шт.

25

4197-2051

BRACKET;CONNECTOR

desc: SUPPORT

1шт.

26

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

10шт.

27

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

11шт.

28

2124-1509D1

CLIP D12/M8

desc: ATTACHE

11шт.

29

2124-1509D2

CLIP D18/M8

desc: ATTACHE

13шт.

30

2124-1509D3

CLIP D24/M8

desc: ATTACHE

11шт.

31

2124-1509D4

CLIP D30/M8

desc: ATTACHE

8шт.

32

2124-1509D5

CLIP D36/M8

desc: ATTACHE

2шт.

33

2121-1305

NUT M8X1.25

desc: ECROU

42шт.

37

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

10шт.

38

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

30шт.

39

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

10шт.

40

2120-2187

BOLT;STUD

desc: BOULON DE PLOT

1шт.

41

2124-1509D7

CLIP D48/M8

desc: ATTACHE

1шт.
