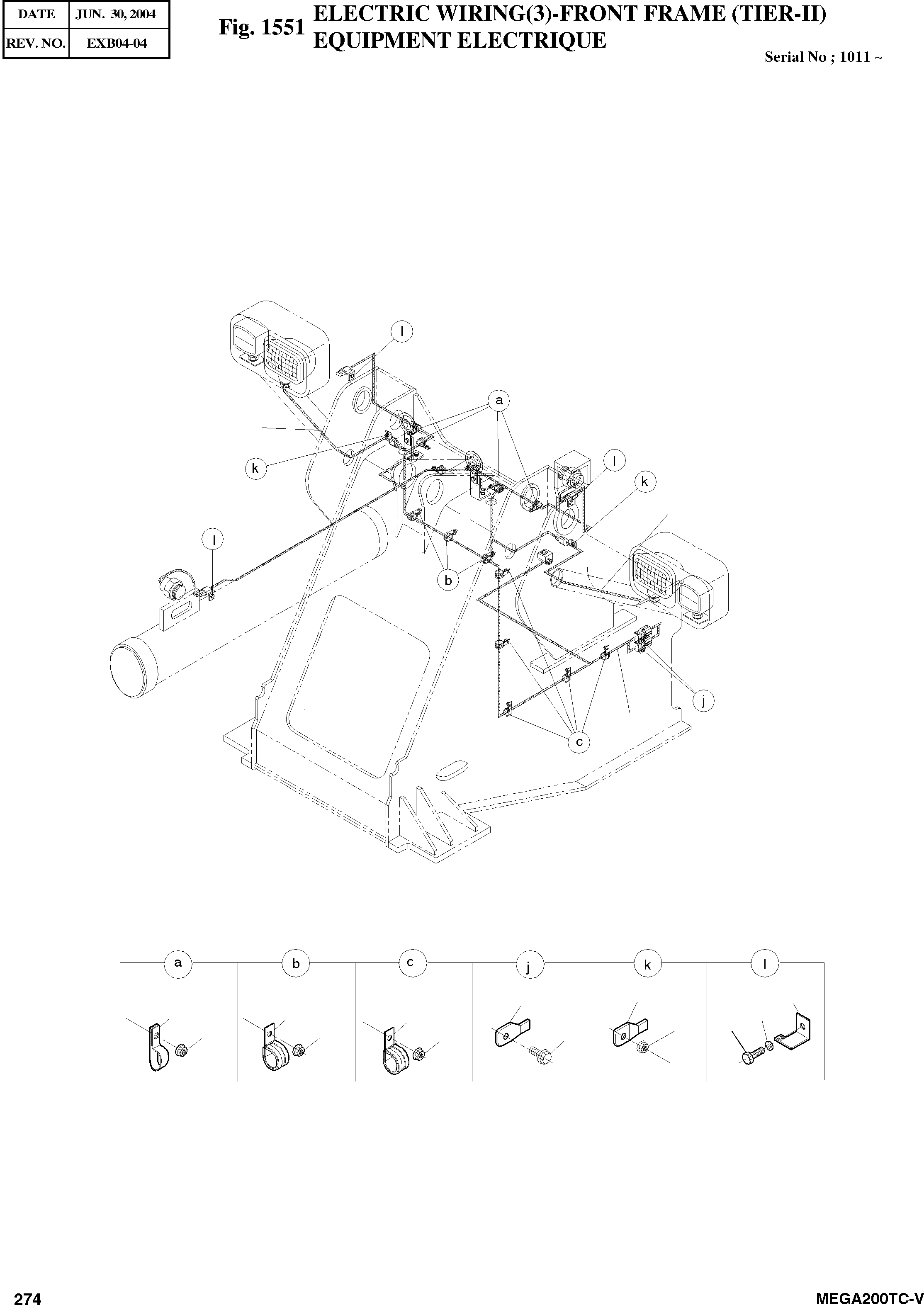

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-FRONT FRAME (TIER-II) BODY PARTS

-

500-00222

ELECTRIC PARTS

SERIAL: 1011

-2шт.

4

530-00282A

HARNESS;FRONT FRAME

desc: FAISCEAU

1шт.

5

530-00026A

HARNESS;FRONT LAMP

SERIAL: 1011-1014

2шт.

23

2195-3500

BRACKET;HOUSING W9

desc: SUPPORT

3шт.

24

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

3шт.

25

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

27

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

30

2124-1509D1

CLIP D12/M8

desc: ATTACHE

4шт.

31

124-00208D2

CLIP D14/M8

desc: ATTACHE

3шт.

32

124-00208D3

CLIP D20/M8

desc: ATTACHE

5шт.

35

2121-1305

NUT M8X1.25

desc: ECROU

14шт.

36

120-00276

BOLT M8X1.25X12

desc: BOULON A 6PANS

2шт.
