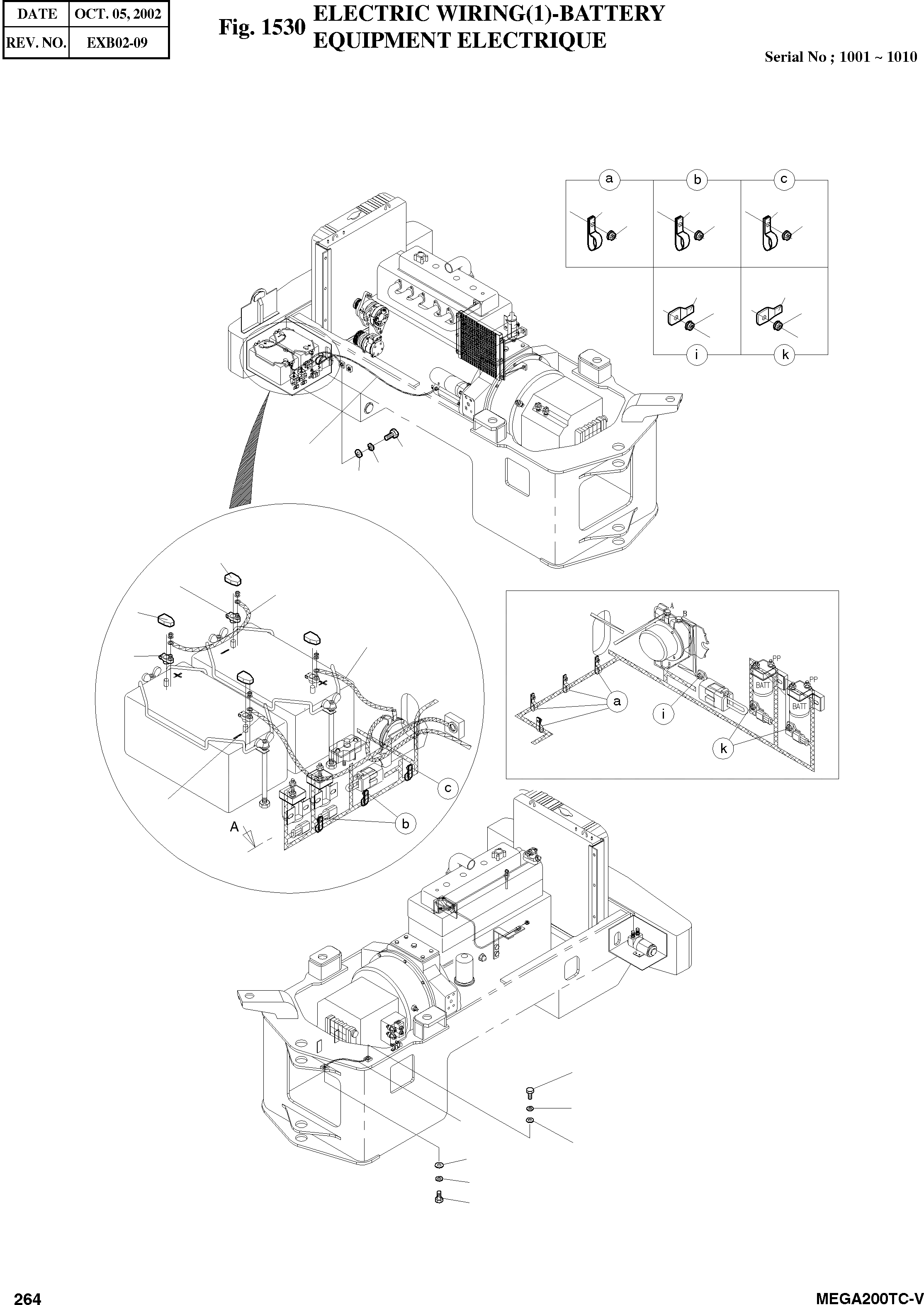

Запчасти Doosan Daewoo ELECTRIC WIRING(1)-BATTERY BODY PARTS

-

500-00168

ELECTRIC PARTS

SERIAL: 1001-1010

-2шт.

8

2550-1014D1

TERMINAL;BATTERY (+)

desc: COSSE DE BATTERIE

2шт.

9

2550-1014D2

TERMINAL;BATTERY (-)

desc: COSSE DE BATTERIE

2шт.

10

2160-1212

CAP;BATT.TERMINAL (+) RED

desc: CHAPEAU DE CAOUTCHOUC

2шт.

11

2160-1213

CAP;BATT.TERMINAL (-) BLACK

desc: BOUCHON

2шт.

12

2553-1275D60

CABLE;BATT-EARTH 60B-L800

desc: CABLE

1шт.

13

2553-1275D6

CABLE;BATT-BATT 60R-L250

desc: CABLE

1шт.

14

2553-1275D68

CABLE;BATT-BATT RELAY 60R-L250

desc: CABLE

1шт.

15

2553-1275D58

CABLE;BATT RY-STARTER 60R-L1650

desc: CABLE

1шт.

16

2553-1275D22

CABLE;FL PLATE-EARTH 60B-L400

desc: CABLE

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6PANS

3шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

19

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

3шт.

23

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

1шт.

24

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

2шт.

28

2124-1509D1

CLIP D12/M8

desc: ATTACHE

4шт.

29

2124-1509D2

CLIP D18/M8

desc: ATTACHE

2шт.

30

2124-1509D3

CLIP D24/M8

desc: ATTACHE

1шт.

33

2121-1305

NUT M8X1.25

desc: ECROU

10шт.
