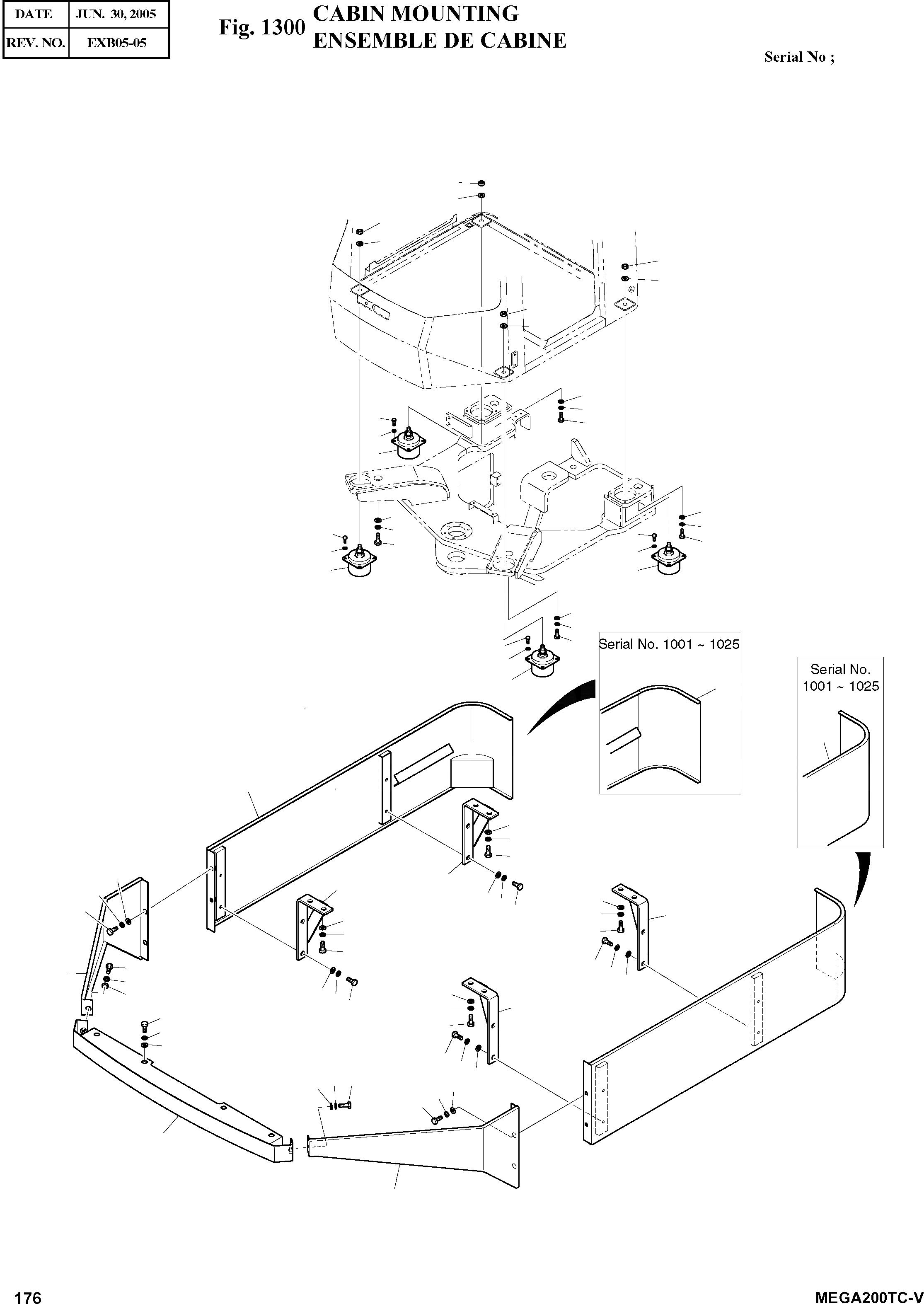

Запчасти Doosan Daewoo CABIN MOUNTING BODY PARTS

-

621-01445

CAB MOUNT ASS'Y

SC: D

-2шт.

1

2161-9057

RUBBER;CABIN MOUNT

desc: SUPPORT

4шт.

2

S0512066

BOLT M10X1.5X25

desc: BOULON A 6PANS

16шт.

3

2114-1898D1

WASHER;PLAIN M10

desc: RONDELLE

16шт.

4

2114-1058D2

WASHER;PLAIN M16

desc: RONDELLE PLATE

4шт.

5

2121-9007

NUT M16X2.0

desc: ECROU

4шт.

6

2114-1058D76

WASHER

desc: RONDELLE PLATE

4шт.

7

S0569866

BOLT M20X2.5X50

desc: BOULON A 6PANS

4шт.

8

195-01278

BRACKET

desc: SUPPORT

2шт.

9

195-01288

BRACKET

desc: SUPPORT

2шт.

11

621-01233A

COVER;CENTER

desc: COUVERCLE

1шт.

12

621-01234B

COVER(L.H)

desc: COUVERCLE

1шт.

13

621-01235B

COVER(R.H)

desc: COUVERCLE

1шт.

14

621-02068

COVER(L.H)

SERIAL: 1001-1025

1шт.

14

621-02068A

COVER(L.H)

SERIAL: 1026

1шт.

15

621-02067

COVER(R.H)

SERIAL: 1001-1025

1шт.

15

621-02067A

COVER(R.H)

SERIAL: 1026

1шт.

16

S0509053

BOLT M8X1.25X25

desc: BOULON A 6PANS

8шт.

17

S0508853

BOLT M8X1.25X20

desc: BOULON A 6PANS

18шт.

18

2114-1058D29

WASHER;PLAIN M8

desc: RONDELLE

26шт.

19

S5103103

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE

4шт.

20

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

26шт.
