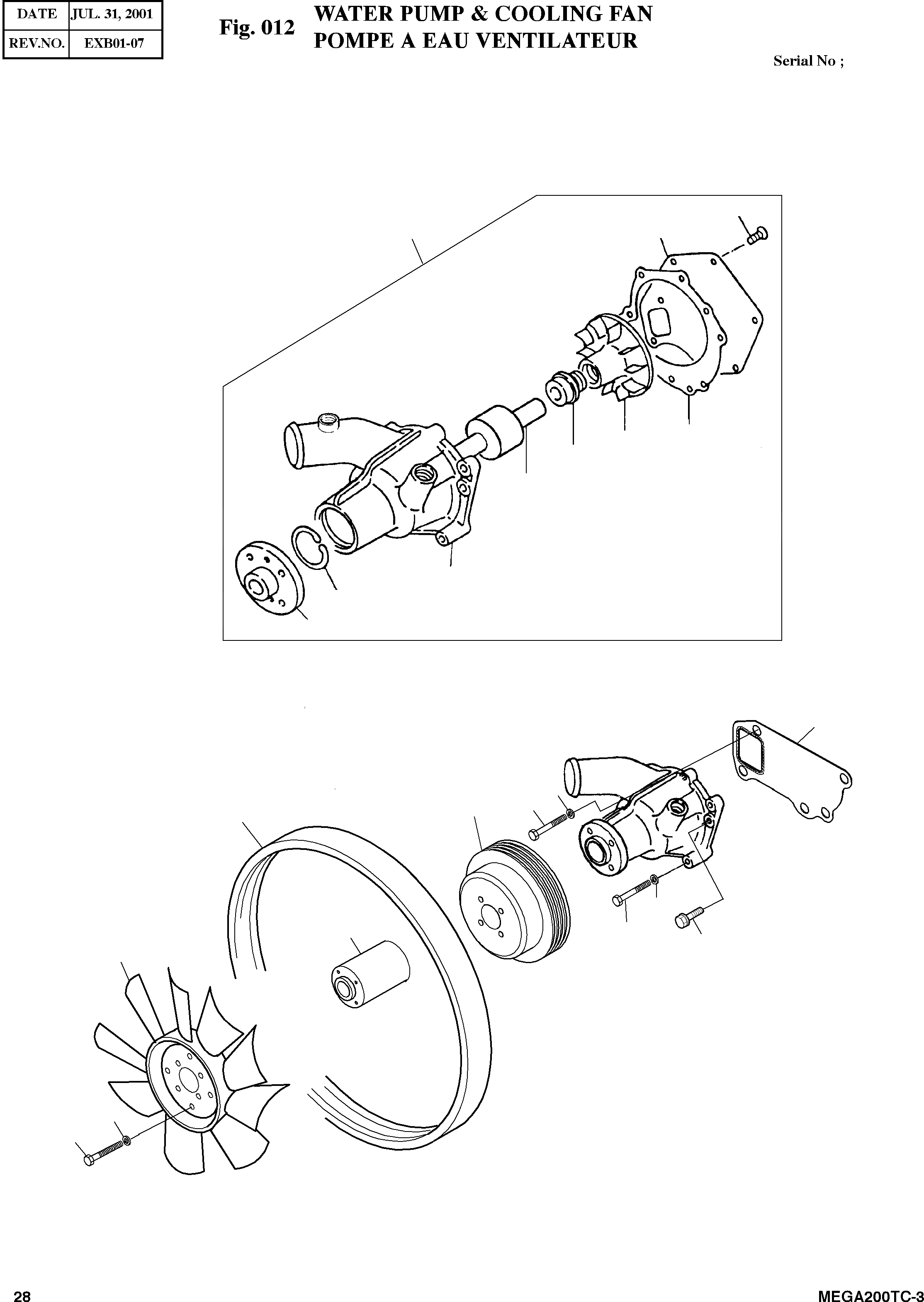

Запчасти Doosan Daewoo WATER PUMP & COOLING FAN ENGINE PARTS

101

65.06500-6403

WATER PUMP ASS'Y

ICA: I

1шт.

101

65.06500-6144

WATER PUMP ASS'Y

desc: TUYAU FLEXIBLE

1шт.

102

65.06501-0214

HOUSING

SC: D

1шт.

103

65.06520-6007

SEAL;MECHANICAL

desc: . POMPE DE EAU

1шт.

104

65.93410-0027

BEARING

desc: . POMPE DE EAU

1шт.

105

06.29020-0132

RING;SNAP

desc: . BOITIER

1шт.

106

65.06504-0033

HUB;V-BELT PULLEY

desc: . JOINT

1шт.

107

65.06506-0085A

IMPELLER

desc: . PALIER

1шт.

108

65.06512-0002

COVER

desc: . BAGUE ELASTIQUE

1шт.

109

65.06901-0003

GASKET

desc: . MOYEU

1шт.

110

06.04200-9009

SCREW;CROSS M8X20

desc: . TURBINE

3шт.

112

06.01493-4215

BOLT M10X1.25X80

desc: COUVERCLE

1шт.

113

06.01493-4211

BOLT M10X1.25X60

desc: JOINT

2шт.

114

06.01943-3218

BOLT ASS'Y M10X1.25X35

desc: VIS

1шт.

115

06.16731-2108

WASHER;SPRING

desc: BOULON A 6 PANS

3шт.

116

65.06606-0040

PULLEY;FAN

desc: BOULON A 6 PANS

1шт.

117

65.06901B0002

GASKET

desc: POLLEY

1шт.

201

65.06601-5058

FAN;COOLING

desc: TUYAU FLEXIBLE

1шт.

202

65.06611-0097

FLANGE;FAN

desc: TUYAU FLEXIBLE

1шт.

204

06.01013-9124

BOLT M8X95

desc: VENTILATEUR

4шт.

205

06.16731-2107

WASHER;SPRING

desc: VENTILATEUR

4шт.

209

65.96801-0124

BELT

ICA: Y

1шт.
