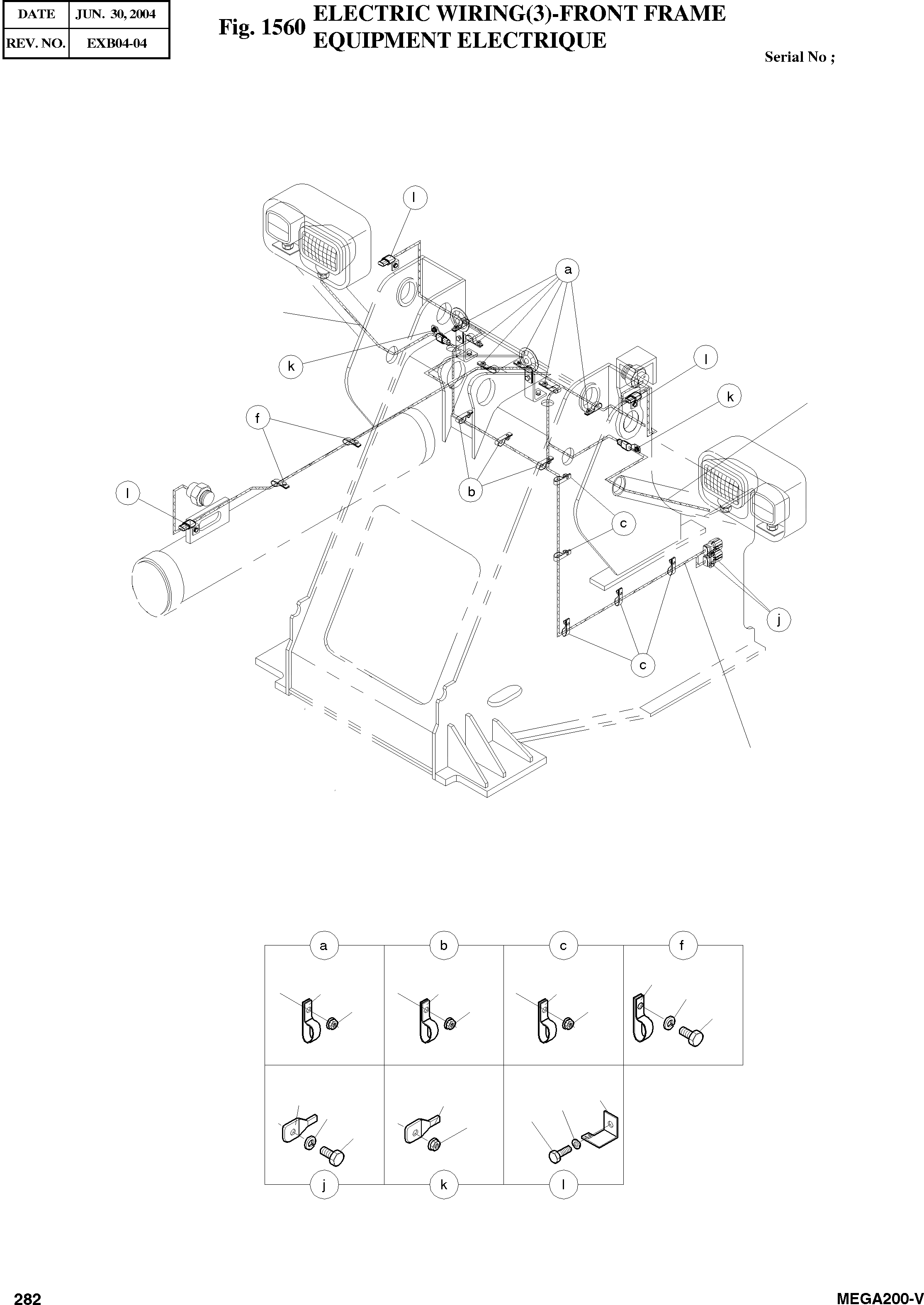

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-FRONT FRAME BODY PARTS

-

500-00069

ELECTRIC PARTS

SC: D

-2шт.

4

530-00178

HARNESS;FRONT FRAME

SERIAL: 1001-1060

1шт.

4

530-00178A

HARNESS;FRONT FRAME

SERIAL: 1061-1133

1шт.

4

530-00448

HARNESS;FRONT FRAME

SERIAL: 1134

1шт.

5

530-00026A

HARNESS;FRONT LAMP

SERIAL: 1001-1133

2шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

3шт.

21

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

3шт.

22

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

24

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

26

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

4шт.

27

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

28

2124-1509D1

CLIP D12/M8

desc: ATTACHE

8шт.

29

2124-1509D2

CLIP D18/M8

desc: ATTACHE

3шт.

30

2124-1509D3

CLIP D24/M8

desc: ATTACHE

5шт.

33

2121-1305

NUT M8

desc: ECROU

16шт.
