Запчасти Doosan Daewoo TRANSMISSION SEALING KIT HYDRAULIC PARTS

-

802306

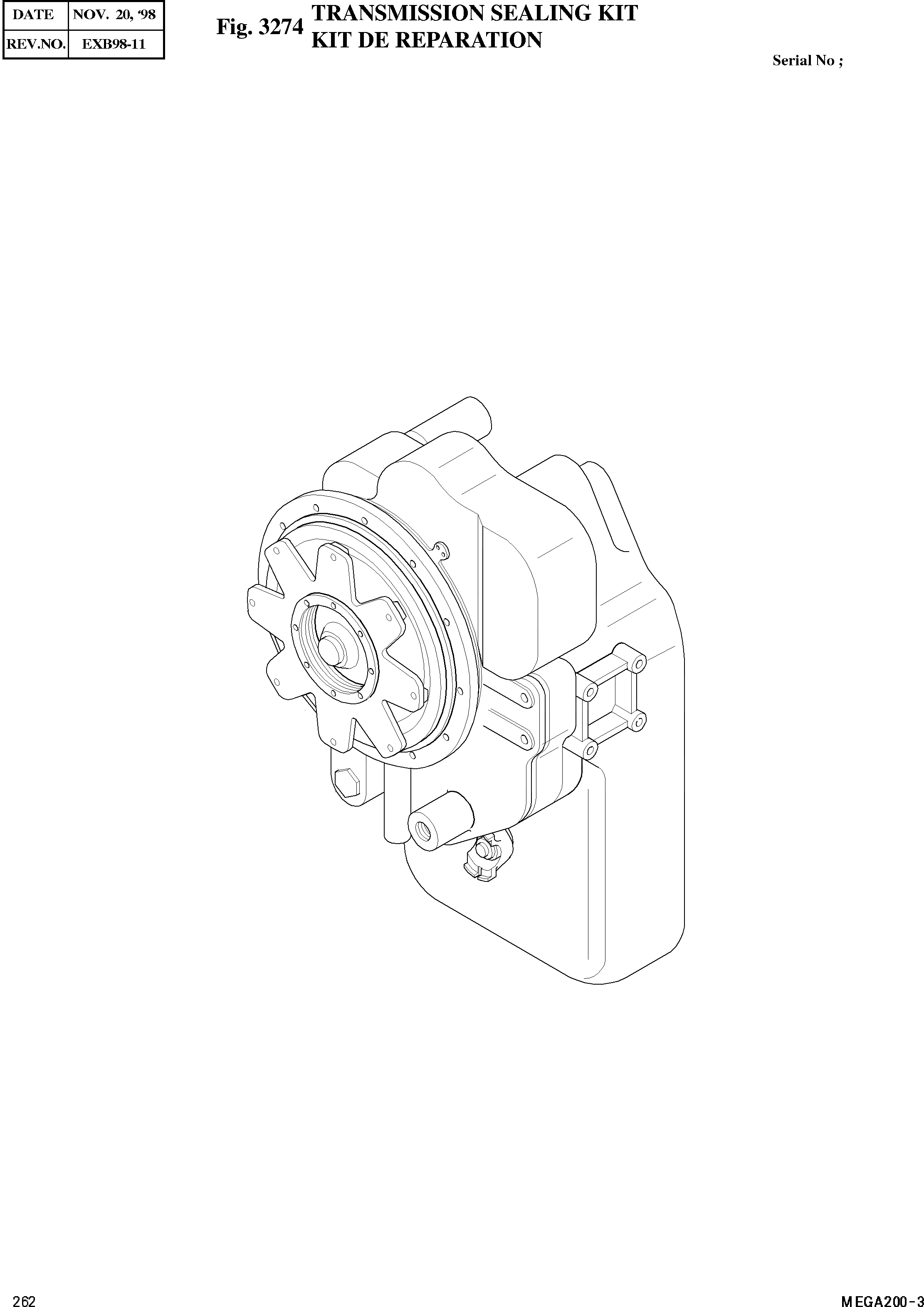

TRANSMISSION SEALING KIT

desc: KIT DE REPARATION

1шт.

1

60K-40104

O-RING;TUBE

desc: JOINT TORIQUE

1шт.

2

60K-40026

O-RING;CLUTCH PRESS. TUBE

desc: JOINT TORIQUE

7шт.

3

236646

GASKET;REAR COVER

desc: JOINT

1шт.

4

60K-30018

O-RING;CLUTCH PRESS. TUBE

desc: JOINT TORIQUE

3шт.

5

237032

SEAL;OUTER CLUTCH

desc: JOINT

6шт.

6

234113

SEAL;INNER CLUTCH

desc: JOINT

6шт.

7

242651

RING;FORWARD SHAFT

desc: BAGUE

4шт.

8

209781

RING;FORWARD CLUTCH

desc: BAGUE

1шт.

9

249779

RING;PISTON

desc: BAGUE

6шт.

10

250215

RING;LOW SHAFT PISTON

desc: BAGUE

1шт.

11

242685

GASKET;LOW BEARING CAP

desc: JOINT

1шт.

12

60K-30012

O-RING;PRESS. TUBE

desc: JOINT TORIQUE

2шт.

13

230918

GASKET;FELLER BEARING

desc: VIBREUR

1шт.

14

60K-40400

O-RING;OUTPUT BEARING

desc: JOINT TORIQUE

1шт.

15

60K-40412

O-RING;DISCONNECT

desc: JOINT TORIQUE

2шт.

16

60K-30022

O-RING;DISCONNECT LUBE

desc: JOINT TORIQUE

1шт.

17

60K30110

O-RING;BORE PLUG

desc: JOINT TORIQUE

1шт.

18

230954

SEAL;OIL

desc: JOINT

1шт.

19

60K-30016

O-RING;AIR ACTUATOR

desc: JOINT TORIQUE

1шт.

20

249158

RING;AIR ACTUATOR

desc: BAGUE

1шт.

21

60K-30120

O-RING;DISCONNECT HSG

desc: JOINT TORIQUE

1шт.

22

60K-60116

O-RING;FLANGE

desc: JOINT TORIQUE

2шт.

23

60K-30026

O-RING;BEARING CAP

desc: JOINT TORIQUE

1шт.

24

236629

SEAL;BEARING CAP OIL

desc: JOINT TORIQUE

1шт.

25

225823

SEAL;BEARING CAP OIL

desc: JOINT

1шт.

26

25K-40112

O-RING;FLANGE

desc: JOINT TORIQUE

1шт.

27

237378

RING;PISTON

desc: RESSORT

4шт.

28

60K-40120

O-RING;IDLER SHAFT

desc: JOINT TORIQUE

2шт.

29

241894

SEAL;SPEED OIL

desc: JOINT

1шт.

30

91F-8

O-RING;SPEED TUBE NUT

desc: JOINT TORIQUE

1шт.
